5.2" 1920 x 1080 Capacitive Touchscreen
USB PD Power
High 1500 cd/m2 Brightness
4K HDMI Input, HDR/HLG/PQ Support

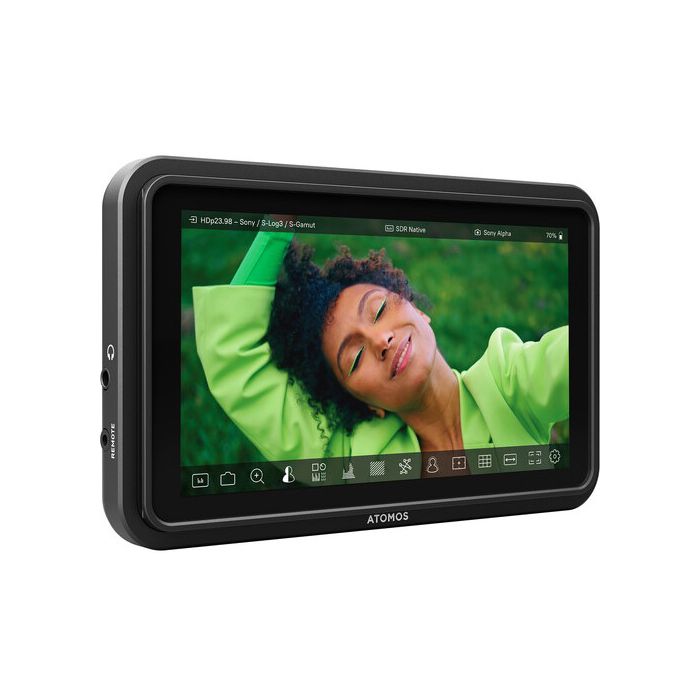

Introducing the Atomos Shinobi II 5.2 Inch HDMI HDR Monitor. A powerful and compact solution tailored for photographers, vloggers, and video professionals who require high-quality monitoring in a lightweight design. With its impressive 1500 cd/m brightness and 1920 x 1080 resolution, the Shinobi II ensures exceptional visibility in various lighting conditions, allowing you to confidently monitor your shots in both bright and challenging environments. Designed with a slim and low-profile design, the Shinobi II is 30% thinner than its predecessor while increasing brightness by 50%, making it an ideal companion for on-the-go shooting. The 5.2-inch capacitive touchscreen display features a wide viewing angle of 178 degrees, providing clear visuals from all perspectives. The monitor supports 4K HDMI input and is compatible with HDR, HLG, and PQ formats, enabling versatile use across different camera systems.
Leveraging the powerful AtomHDR mode, the Shinobi II delivers an incredible 10-stop dynamic range, enhancing your ability to capture striking images with outstanding detail in both shadows and highlights. With built-in calibration support, users can easily maintain colour accuracy by connecting a Calibrite probe directly to the monitor via USB-C or performing on-device calibration. The Atomos Shinobi II is equipped with various professional monitoring tools, including focus peaking, colourized exposure tools (such as Atomos and Arri false colour), waveforms, histograms, and multi-scope analysis views. These features empower you to achieve precise exposure and colour management while ensuring you capture high-quality footage every time.
For power, the monitor utilises a single Sony L-Series battery slot, providing flexibility for continuous power via the battery or USB-C Power Delivery (PD). The lightweight construction (only 210g / 7.4oz) and the inclusion of a 1/4-inch mounting point allow for easy attachment to various rigs or camera setups. With its advanced features, compact size, and exceptional performance, the Atomos Shinobi II 5.2 Inch HDMI HDR Monitor stands out as a vital tool for creative professionals. Whether you're shooting dynamic video content or capturing stunning stills, this monitor is designed to help you achieve the highest qualities in your work without compromise.
Environmental | |
Ambient Operating Temperature | Up to 40 degrees Celsius |
Construction | |
Body | ABS Polycarbonate Plastic |
Cooling | Passive heat sink |
Multi-Function Button | Power / Lock Screen |
Touch Screen | Capacitive Touch |
Power | |
Input Voltage | 6.2V to 16.8V |
Compatible Batteries | 1 x NP-F / L-Series |
Built-in battery | No |
Continuous power | Via NPF battery or USB-C PD |
DC-In Connector | Via Battery Eliminator (separate purchase) |
D-Tap | Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable |
Display | |
Display Panel | SuperAtom IPS Panel (Capacitive Touch) |
Size | 5.2-inch |
Resolution | 1920 x 1080 |
Viewing Angle | 178 + H & V |
PPI | 427 |
Bit Depth | 10-bit (8+2 FRC) |
Backlight Type | Edge-lit |
Brightness (cd/m2 / nits) | 1500 |
Aspect Ratio | 16:9 |
Colour Gamut | Rec.709 |
Calibration Support | Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C) |
Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C) | |
Colour Pipeline | |
Gamma | Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, Arri LogCEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 / LogC4, JVC J-Log1, RED Log3G12 / RED LogFilm / PQ10K / LOG3G10, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG |
Gamut | BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor / DragonColor2 / REDColor2 / REDColor3 / REDColor4 / REDWideGamut |
3D LUT Display | .Cube format (17 & 33 points supported) |
3D LUT 50/50 Split | Yes |
Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
Display Controls | Backlight, Lift, Gamma, Gain |
AtomHDR | Built-in Technical Log to HDR EOTF |
3D LUTs | Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring |
Video Input | |
HDMI | 1 x HDMI (1.4) |
Bit Depth | 8 / 10-Bit |
Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 |
Audio In/Out | |
HDMI Embedded | 2-channel, 24-bit, input dependent |
Headphone Out | 3.5mm headphone jack, 2-channel |
Resolution and Frame Rates (Monitoring) | |
4K DCI | 23.98/24/25/29.97/30 |
4K UHD | 23.98/24/25/29.97/30 |
FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60 |
FHD 1920 x 1080 Interlaced | 50i/60i |
1280 x 720 Progressive | 50/59.94/60p |
Supported Media | |
SD Card | Update firmware & upload LUTs |
File System | FAT32, NTFS |
On-Screen Tools | |
MultiScope Analysis View | Image, waveform, histogram, & vectorscope |
Waveform | 3 sizes - adjustable opacity & brightness |
Histogram | 3 sizes - adjustable opacity & brightness |
RGB Parade | 3 sizes - adjustable opacity & brightness |
Vectorscope | 1 size - adjustable opacity & brightness |
1 x Zoom | Tap to Zoom |
2 x Zoom | Tap to Zoom |
4 x Zoom | Tap to Zoom |
Focus Peaking | 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
Colorized Exposure | Atomos & Arri False Color, EL Zone System |
Zebra | Adjustable threshold (50% to 105%) |
Isolate Color Channel | Blue only |
Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
Social Frame Guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
Safe Areas | SMPTE Safe Title Area 93% & 90% |
Grid Markers | 9 grid |
Anamorphic Desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
Display Flip | Horizontal & Vertical |
External Device Control | |
USB-C | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator |
Serial 2.5mm Jack | Camera control for Z CAM cameras via optional USB to Serial Cable |
Optional Accessories | Quick Release Monitor Mount, NP-F Battery Eliminatior, DC to DTap Cable, Power Kit, HDMI cables, USB-C to serial cable |
Physical | |
Dimensions (W x H x D mm) | 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached |
Weight | 210g / 7.4oz. |
Mounting Points | |
Bottom | 1 x 1/4-inch 20 with anti-rotational points |
