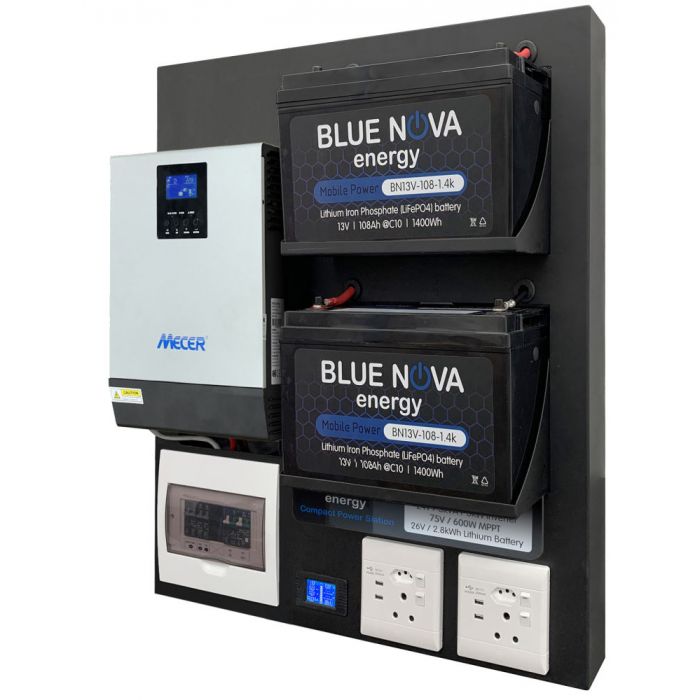

Blue Nova Energy CPS3000 Compact Power Station - 2.4kW
R43,599.00
SKU
CPS300028k
Shipping restrictions apply.
Manufacturer's Website
Description
The Blue Nova Energy CPS3000 Compact Power Station - 2.4kW is an 2400W (3kVA) Synapse Inverter, 2800Wh (2.8kWh) LithiumIon Phosphate Battery, 60A MPPT solar charge controller.
CPS3000 User Manual
CPS3000 Datasheet
Features
- 3kva / 2.4kw pure sine wave inverter
- Incl. 40a MPPT solar charge controller.
- 2 x 1.4kwh lifepo4 batteries.
- Battery monitoring display panel.
- Integrated distribution board
- Pre-configured for ups applications.
- Solar-configurable via inverter UI.
- Ultra-reliable lithium iron, phosphate technology.
- Integrated analog BMS, (battery management system)
- Light weight & compact
- Water & dust resistant (ip56)
- Highly durable ABS enclosure
- Drop-in lead acid replacement
Specifications
| Compact Power Station (Complete Unit) | |
| Dimensions | (W x H x D) 72 x 79 x 16cm (unit only) 79 x 86 x 23cm (packaged) |
| Weight (Total) | 60.5kg (unit only) |
| Inverter Specifics: Synapse 3.0 | |
| Power | |
| Rated Power | 3000VA / 2400W |
| Input | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170 280 VAC (for PCs) 90 280 VAC (for appliances) |
| Frequency Range | 50Hz / 60Hz (auto-sensing) |
| Output | |
| Ac Voltage Regulation (Battery Mode) | 230 VAC 5% |
| Surge Power | 6000 VA |
| Efficiency (Peak) | 90% 93% |
| Transfer Time | 10ms (for PCs) 20ms (for appliances) |
| Waveform | Pure Sine Wave |
| Solar Charger & Ac Charger | |
| Max. Pv Array Voltage (Open Circuit) | 102 VDC |
| Max. Pv Array Power | 1000 W |
| MPP Range Operating Voltage | 30 80 VDC |
| Max. Solar Charge Current | 40 A |
| Max. Ac Charge Current | 25 A |
| Max. Charge Current (Total) | 60 A |
| Environmental | |
| Humidity | 5% 95% Relative Humidity (non-condensing) |
| Operating Temperature Range | -10C 50C |
| Storage Temperature Range | -15C 60C |
| Battery Specifics: 2 X Bn13V-108-1.4K | |
| General Information | |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Usable Capacity | 2800 Wh C10, 25C |
| Nominal Voltage | 26 VDC |
| Operating Voltage Range | 23.2 VDC 28.8 VDC |
| Operating Temperature Range | Charge: 0C 45C Discharge: -20C 65C |
| Cycle Life 100% DoD | > 2000 cycles (2800 Wh C10, 25C) |
| Cycle Life 80% DoD | > 3000 cycles (2240 Wh C10, 25C) |
| Cycle Life 50% DoD | > 5000 cycles (1400 Wh C10, 25C) |
| Dimensions (Mm) | 2 x 342 x 173 x 220mm (W x D x H) |
| Weight (Kg) | 2 x 14 kg |
| Terminal | M8 (female) |
| Charge / Discharge | |
| Bulk Voltage | 28.8 VDC |
| Discharge Voltage (Min.) | 23.2 V |
| Charge Current (Max.) | 52.5 A continuous |
| Discharge Current (Max.) | 110 A continuous, 160 A burst (30 seconds) |
| Self-Discharge Rate | < 3% per month |
| Charge & Discharge Efficiency | 96% - 99% C1 |
| Protection | |
| Environmental Protection | IP56 |
| Over-Current Protection | 110 A |
| Over-Voltage Cut-Out | 31.2 V |
| Under-Voltage Cut-Out | 20.0 V |
| Free Shipping | No |
|---|
