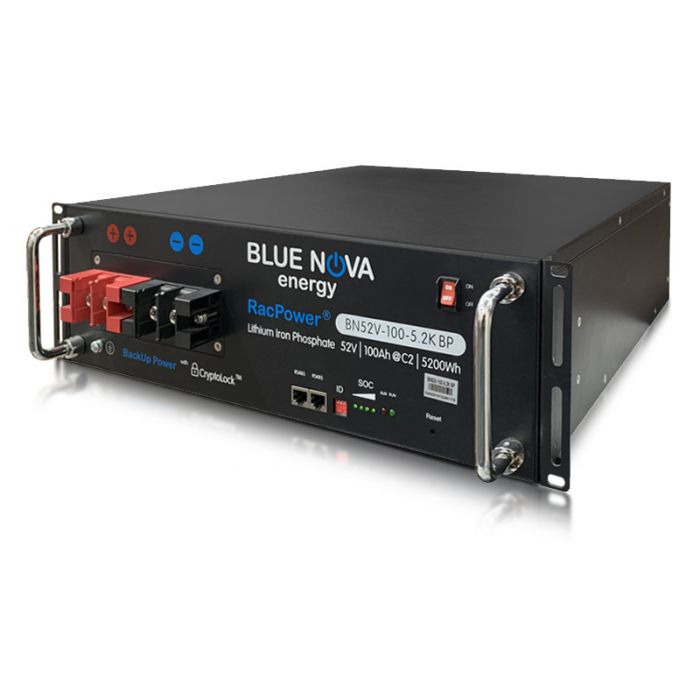

Blue Nova Energy RacPower LiFePO4 Backup Battery - 5.12kWh
R20,119.00
SKU
BN52V10052kBP
- Ultra-reliable Lithium Iron Phosphate Technology.
- High Performance
- Power output 5.2kW (continuous)
- Fully rechargeable in 2 hours
Shipping restrictions apply.
Manufacturer's Website
Description
The Blue Nova Energy RacPower LiFePO4 Backup Battery - 5.12kWh is perfectly suited for voltage-based installations, with optional CryptoLock functionality to ensure that battery theft and redeployment is a thing of the past.
Our RacPower batteries are 48V system-compatible & have been designed for installation in 19 server cabinets. Developed specifically to support business and telecommunications industries, a single 5.2k Daily Use unit can supply a sustained 2000W for a typical 2.5 hour load-shedding cycle.
Up to 6 x BN52V-100-5.2k BP units (31kWh) can be connected in parallel.
Datasheet
User Manual
Features
- Ultra-reliable Lithium Iron Phosphate Technology.
- High Performance
- Power output 5.2kW (continuous)
- Fully rechargeable in 2 hours
- Robust & Durable
- Can be discharged to 100% DoD
- Performance cycle life > 4000 cycles
- Serial communication (CAN/RS485) compatible with leading inverter manufacturers.
- Compatible via voltage-based setup with all other pure sine wave inverters
Specifications
| General Specifications | |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Ah Rang | 100Ah C3, 25C |
| Installed Capacity Venom | 5 120Wh |
| Internal Resistance | 50m 1kHz AC |
| Serial Communication | CAN & RS485 |
| Voltage | |
| Operating Voltage Range | 40.0V 57.6V |
| Bulk Voltage (Max.) | 57.6V 0.3V |
| Float Voltage (Recommended) | 54.4V 55.2 V |
| Low-Voltage (Min.) | 40.0V |
| Current | |
| Charge Current (Max.) | 50A continuous 30A recommended |
| Discharge Current (Max.) | 100A for 30 mins. 70A recommended |
| Self-Discharge Rate | Residual capacity: 3% /month 15% /year, Recover capacity: 1.5% /month 8% /year |
| Environmental Requirements | |
| Operating Temperature Range | Charge: 0C 50C, Discharge: 10C 50C |
| Recommended Operating Environment | Temp. range: 15 35C Humidity: 5 75%RH |
| Storage Environment (Stored 1 Month) | Temp. range: 20 60C Humidity: 5 75%RH |
| Storage Environment (Stored 3 Months) | Temp. range: 10 45C Humidity: 5 75%RH |
| Physical Attributes | |
| Dimensions Main Enclosure | 446mm x 435mm x 153mm (W x D x H) |
| Dimensions Front Plate | 481mm x 153mm (W x H) |
| Net Weight | 46.0kg (unboxed, no accessories) |
| Free Shipping | No |
|---|
