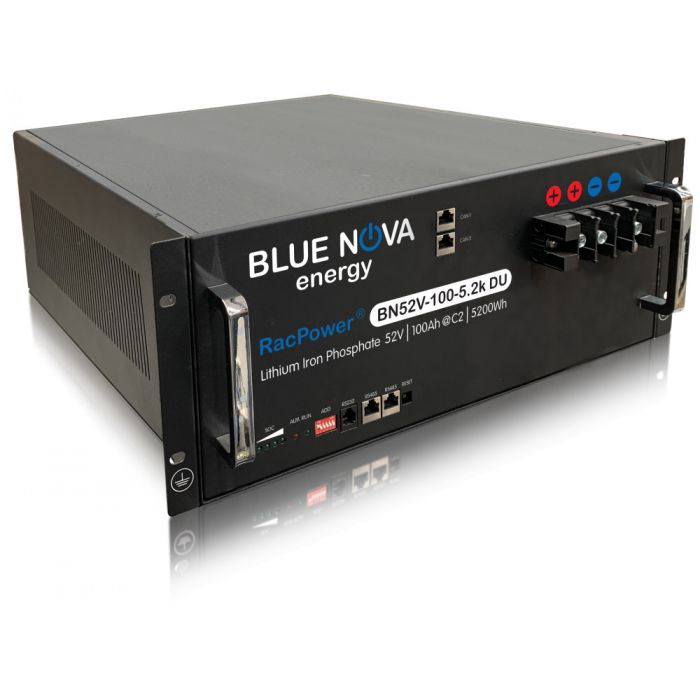

Blue Nova Energy RacPower LiFePO4 Daily Use Battery - 5.12kWh
R27,299.00
SKU
BN52V10052kDU
Ultra-reliable Lithium iron phosphate technology
High performance
Power output 5.2kw (continuous)
Shipping restrictions apply.
Manufacturer's Website
Description
The Blue Nova Energy RacPower LiFePO4 Daily Use Battery - 5.12kWh also includes serial communication (CAN / RS485) functionality.
Our RacPower batteries are 48V system-compatible & have been designed for installation in 19 server cabinets. Developed specifically to support business and telecommunications industries, a single 5.2k Daily Use unit can supply a sustained 2000W for a typical 2.5 hour load-shedding cycle.
Up to 9 x BN52V-100-5.2k DU units (46kWh) can be connected in parallel.
Datasheet
User Manual
Features
- Ultra-reliable lithium iron phosphate technology.
- High performance:
- Power output 5.2kw (continuous)
- Fully rechargeable in 2 hours.
- Robust & durable:
- Can be discharged to 100% DoD.
- Performance cycle life > 8000 cycles.
- Safe & secure:
- Over-charge, over-discharge & short-circuit protection.
- Non-combustible & 100% recyclable
Specifications
| General Specifications | |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Ah Rating | 100Ah C3, 25C |
| Installed Capacity Vnom | 5 120Wh |
| Internal Resistance | 30m 1kHz AC |
| Voltage | |
| Operating Voltage Range | 46.0V 55.0V |
| Bulk Voltage (Max.) | 55.0V 0.3V |
| Float Voltage (Recommended) | 54.0V 0.3V |
| Low-Voltage (Min.) | 46.5V |
| Current | |
| Charge Current (Max.) | 60A continuous 60A recommended |
| Discharge Current (Max.) | 100A continuous |
| Self-Discharge Rate | Residual capacity: 3% /month 15% /year, Recover capacity: 1.5% /month 8% /year |
| Environmental Requirements | |
| Operating Temperature Range | Charge: 0C 45C, Discharge: 20C 60C |
| Recommended Operating Environment | Temp. range: 15 35C Humidity: 45 75%RH |
| Storage Environment (Stored 1 Month) | Temp. range: 20 35C Humidity: 45 75%RH |
| Storage Environment (Stored 3 Months) | Temp. range: 10 45C Humidity: 5 75%RH |
| Physical Attributes | |
| Dimensions Main Enclosure | 442mm x 520mm x 178mm (L x W x H) |
| Dimensions Front Plate | 483mm x 178mm (L x H) |
| Net Weight | 55.0kg (unboxed, no accessories) |
| Serial Communication | CAN and RS485 |
| Free Shipping | No |
|---|
