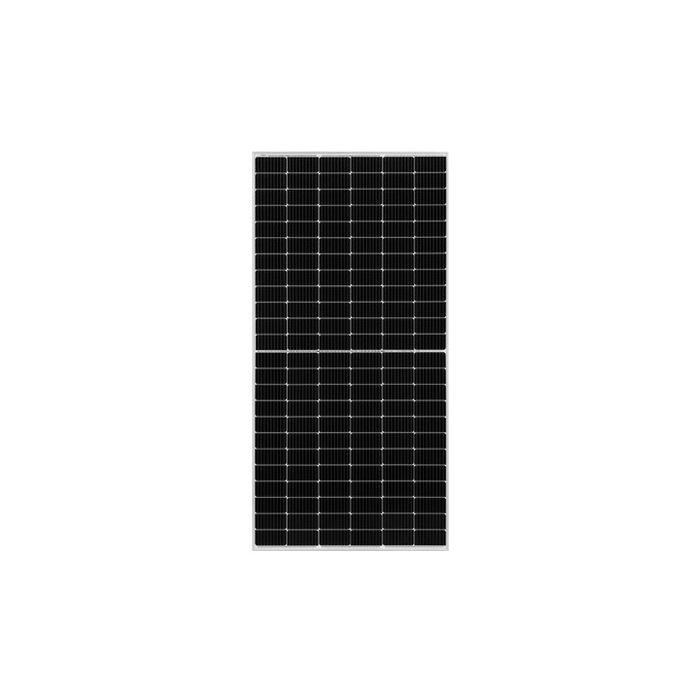

Canadian Solar Super High Power Mono PERC HiKU Solar Panel With MC4-EVO2 - 380W
R3,199.00
SKU
CS3L380MSMC4F30
Shipping restrictions apply.
Manufacturer's Website
Description
The Canadian Solar Super High Power Mono PERC HiKU Solar Panel With MC4-EVO2 - 380W produces 26 % higher power than conventional modules.
Manufacturer's PDF
Features
- 26 % higher power than conventional modules
- Up to 4.5 % lower LCOE
- Up to 2.7 % lower system cost Heavy snow load up to 5400 Pa, wind load up to 3600 Pa 41C
- Better shading tolerance
- Low NMOT: 41 3C
- Low temperature coefficient (Pmax): -0.34 %/C
- Lower internal current, lower hot spot temperature
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
Specifications
| ELECTRICAL DATA STC | |
| Model | CS3L-380MS |
| Nominal Max. Power (Pmax) | 380 W |
| Opt. Operating Voltage (Vmp) | 34.5 V |
| Opt. Operating Current (Imp) | 11.02 A |
| Open Circuit Voltage (Voc) | 41.2 V |
| Short Circuit Current (Isc) | 11.68 A |
| Module Efficiency | 20.5% |
| Operating Temperature | -40C +85C |
| Max. System Voltage | 1500V (IEC/UL) or 1000V (IEC/UL) |
| Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730, 1000V) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating | 20 A |
| Application Classification | Class A |
| Power Tolerance | 0 + 10 W |
| MECHANICAL DATA | |
| Cell Type | Mono-crystalline |
| Cell Arrangement | 120 2 X (10 X 6) |
| Dimensions | 1765 X 1048 X 35 mm, (69.5 X 41.3 X 1.38 in) |
| Weight | 20.5 kg (45.2 lbs) |
| Free Shipping | No |
|---|
