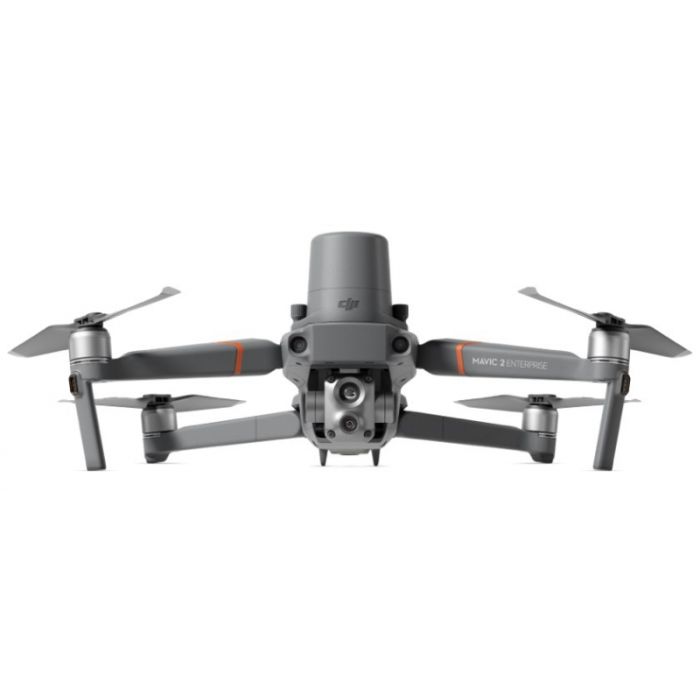

DJI Mavic 2 Enterprise Advanced Drone
R0.00
SKU
DJIMAVIC2ENTADV
Price displayed is NOT, the item price, please contact for a Quote per Order.
640 x 512 px thermal camera
48mp visual camera
32x digital zoom
10 km HD transmission
31 minute max flight time
Omnidirectional Obstacle Sensing
Please Note: RTK Module NOT Included
Manufacturer's Website
Description
The Dji Mavic 2 Enterprise Advanced Drone lets you capture accurate details in any mission. The Mavic 2 Enterprise Advanced is a highly versatile yet compact tool that packs a lot of performance upgrades. With high-resolution thermal and visual cameras, the M2EA supports up to 32 digital zoom and is capable of centimeter-level positioning accuracy with the RTK module.
Make informed decisions by quickly identifying objects on-site using the M2EAs integrated high-resolution thermal sensor, which supports Spot Meter and Area Measurement. Capture clear images and videos from a safe distance. The M2EAs high-resolution visual camera supports ultra zoom, so no detail is missed. Tap to switch between visual, thermal, or split-view feeds for different project needs. Achieve centimeter-level accuracy using the M2EA with the RTK Module. Create up to 240 waypoints to conduct automated, detailed inspection missions in complex environments. The lightweight and portable M2EA can take off in less than a minute. Zip through complex operating environments thanks to the faster ascent and descent speed.
The accuracy of the temperature measurement is measured at a distance of 5m against a blackbody with an emissivity of 0.95 under ideal conditions. The actual accuracy is also affected by various environmental factors such as temperature and humidity, and needs to be corrected by post-processing software. Under ideal conditions, the temperature accuracy can reach 2 or 2% whichever is greater.
Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
Please Note: RTK Module/Accessories NOT Included
Features
- 640 x 512 px thermal camera
- 48mp visual camera
- 32x digital zoom
- Centimeter-level positioning with rtk
- 10 km HD transmission
- Omnidirectional obstacle sensing1
- High-resolution radiometric thermal
- 640 x 512 thermal resolution
- 30Hz frame rate
- 16x zoom
- ±2°C temperature measurement accuracy
- 48mp visual camera
- 1/2" cmos sensor
- 4x lossless zoom
- 32x digital zoom
- MSDK
- AirSense
- Password protection
- Discreet mode
- Self-heating batteries
- Working temperature of -10° C to 40° C
Specifications
| Aircraft | |
| Takeoff Weight (Without Accessories) | 909g |
| Max Takeoff Weight | 1100g |
| Dimensions (LWH) | Folded: 214×91×84mm, Unfolded: 322×242×84mm |
| Diagonal Distance | 354 mm |
| Max Ascent Speed | 6 m/s (S-mode), 5 m/s (P-mode), 4 m/s (S-mode with accessories), 4 m/s (P-mode with accessories) |
| Max Descent Speed | Descend Vertically: 5 m/s (S-mode) 4 m/s (P-mode);Tilt: 7 m/s (S-mode) 4 m/s (P-mode) |
| Max Speed | 72 kph (S-mode, without wind); 50 kph (P-mode, without wind) |
| Max Service Ceiling Above Sea Level | 6000 m |
| Max Flight Time | 31 min (measured while flying at 25 kph in windless conditions), 28 min (RTK module attached), 29 min (with beacon turned on), 30 min (with beacon turned off), 24 min (with spotlight turned on), 28 min (with spotlight turned off), 27 min (with speaker turned on), 28 min (with speaker turned off) |
| Max Wind Speed Resistance | 10 m/s (scale 5) |
| Max Tilt Angle | 35°(S-mode, with remote controller), 25°(P-mode) |
| Max Angular Velocity | 200°/s (S-mode),100°/s (P-mode) |
| Operating Temperature | -10° to 40°C |
| GNSS | GPS+GLONASS |
| Hovering Accuracy Range | Vertical: ± 0.1 m (with RTK), ± 0.1 m (with Vision Positioning), ± 0.5 m (with GPS Positioning); Horizontal: ± 0.1 m (with RTK), ± 0.3 m (with Vision Positioning), ± 1.5 m (with GPS Positioning)/td> |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz; FCC: ≤26 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm; 5.725 - 5.850 GHz; FCC: ≤26 dBm; CE: ≤14 dBm; SRRC: ≤26 dBm |
| Internal Storage | 24 GB |
| M2EA Thermal Camera | |
| Sensor | Uncooled VOx Microbolometer |
| Focal Length | Approx. 9mm, 35 mm format equivalent: Approx. 38mm |
| Sensor Resolution | 640×512 @30Hz |
| Accuracy of Thermal Temperature | Measurement: ±2℃ or ±2%, whichever is greater. |
| Digital Zoom | 16 x |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Photo Format | R-JPEG |
| Video Format | MP4 |
| Metering Method | Spot Meter, Area Measurement |
| FFC | Auto/Manual |
| M2EA Visual Camera | |
| Sensor | 1/2" CMOS, Effective Pixels: 48 M |
| Lens | FOV: 84°; 35 mm format equivalent: 24 mm; Aperture: f/2.8; Focus: 1 m to ∞ |
| ISO Range | Video: 100-12800 (auto), Photos: 100-1600 (auto) |
| Digital Zoom | 32 x |
| Max Image Size | 8000x6000 |
| Still Photography Mode | Single shotInterval: 2/3/5/7/10/15/20/30/60 s, Panorama: Sphere |
| Video Resolution | 3840×2160@30fps; 1920×1080@30fps |
| Photo Format | JPEG |
| Video Format | MP4 |
| Gimbal | |
| Mechanical Range | Tilt: -135°- +45°, Pan: -100°- +100° |
| Controllable Range | Tilt: -90°- +30°, Pan: -75°- +75° |
| Stabilization | 3-axis (tilt, roll, pan) |
| Max control speed | 120°/s |
| Angular Vibration Range | ±0.005° |
| Sensing System | |
| Sensing System | Omnidirectional Obstacle Sensing |
| Forward | Precision Measurement Range: 0.5 - 20 m; Detectable Range: 20 - 40 m; Effective Sensing Speed: ≤ 14m/s; FOV: Horizontal: 40°, Vertical: 70° |
| Backward | Precision Measurement Range: 0.5 - 16 m; Detectable Range: 16 - 32 m; Effective Sensing Speed: ≤ 12m/s; FOV: Horizontal: 60°, Vertical: 77° |
| Upward | Precision Measurement Range: 0.1-8 m |
| Downward | Precision Measurement Range: 0.5 -11m; Detectable Range: 11-22 m |
| Sides | Precision Measurement Range: 0.5 - 10 m; Effective Sensing Speed: ≤ 8m/s; FOV: Horizontal: 80°, Vertical: 65° |
| Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15); Upward: Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.); Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
| Remote Controller | |
| Operating Frequency | 2.400 - 2.483 GHz; 5.725 - 5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference) | 2.400 - 2.483 GHz; 5.725 - 5.850 GHz; FCC: 10000m; CE: 6000m; SRRC: 6000m; MIC: 6000m |
| Transmission Power (EIRP) | 2.400-2.4835 GHz：25.5 dBm（FCC, 18.5 dBm（CE）19 dBm（SRRC), 18.5 dBm（MIC); 5.725-5.850 GHz：25.5 dBm（FCC), 12.5 dBm（CE）18.5 dBm（SRRC） |
| Storage | ROM 16GB + microSD Extensible Storage |
| Video Output Port | HDMI Port |
| Built-in Battery | Type: 18650 Li-Po （5000 mAh @ 7.2 V); Charging Mode: Charged with USB charger at 12V/2A; Rated Power: 15 W; Charging time: 2 hr (with a USB charger at 12V/2A) |
| Operating Current/Voltage | 1800mA ⎓ 3.83V |
| Battery Life | Built-in Battery Approx. 2.5 hr |
| Operating Temperature | -20° C - 40° C |
| RC Size | Folded without Joystick: 177.5 x 121.3 x 40 mm; Unfolded with Joystick: 177.5 x 181 x 60 mm |
| Weight | Approx. 630 g |
| Intelligent Flight Battery | Main Link: 17.6V ⎓ 3.41A or 17.0V⎓3.53A; USB: 5.0 V ⎓ 2.0 A |
| Intelligent Flight Battery | |
| Capacit | 3850 mAh |
| Voltage | 15.4V |
| Max Charging Voltage | 17.6V |
| Battery Type | LiPo |
| Energy | 59.29 Wh |
| Net Weight | 297g |
| Charging Temperature | 5℃ - 40℃ |
| Operating Temperature Range | -10℃ - 40℃ |
| Heating Methods | Manual Heating, Auto Heating |
| Heating Temperature | -20℃ - 6℃ |
| Heating duration | 500s (Max) |
| Heating Power | 55W (Max) |
| Charging Time | 90 mins |
| Max Charging Power | 80W |
| RTK Module | |
| Dimensions | 69 mm x 69 mm x 59mm |
| Connections | Micro USB Port |
| RTK Positioning Precision | In RTK FIX, 1cm+1ppm (Horizontal); 1.5cm+1 ppm (Vertical) |
| M2EA Spotlight | |
| Dimensions | 68×60×41mm |
| Connections | Micro USB Port |
| Operating Range | 30 m |
| Power | Max 26W |
| Illuminance | FOV17°; Max: 11lux @ 30m Straight |
| M2EA Beacon | |
| Dimensions | 68mmx40mmx27.8mm |
| Connections | Micro USB Port |
| Power | Avg. 1.6W |
| Controllable Range | 5000 m |
| Light intensity | Min Angle: 55 cd; Light intensity: 157cd |
| M2EA Speaker | |
| Dimensions | 68x55x65 mm |
| Connections | Micro USB Port |
| Power | Max 10W |
| Decibel | 100 db @ 1 meter distance |
| Max Bitrate | 16kbps |
| SD Cards | |
| Supported SD Cards | Micro SD (Supports a microSD with capacity of up to 128 GB. A UHS-I Speed Grade 3 rating microSD card is required.) |
| APP / Live View | |
| Video Transmission System | OcuSync 2.0 |
| Mobile App | DJI PILOT(Android Version) |
| Live View Quality | Remote Controller: 720p@30fps / 1080p@30fps |
| Max Live View Bitrate | 40Mbps |
| Latency | 120 - 130 ms |
| Required Operating System | ios 10.0 or later Android 5.0 or later |
