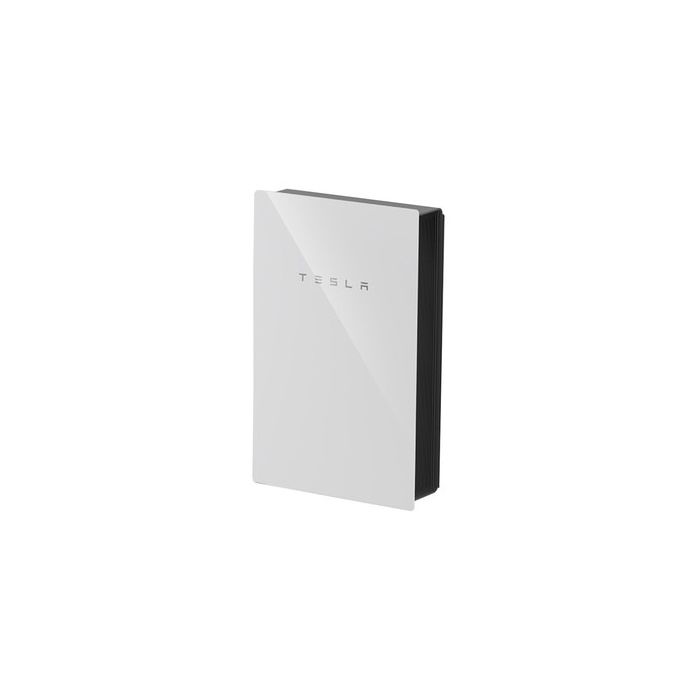

Tesla Backup Gateway 2
R29,599.00
SKU
TeslaGW2
Shipping restrictions apply.
Description
The Tesla Backup Gateway 2 for the Tesla Powerwall 2 provides energy management and monitoring for solar self-consumption, time-based control, and backup.
The Tesla Backup Gateway 2 control connection to the grid, automatically detecting outages and providing a seamless transition to backup power. When equipped with a main circuit breaker, the Backup Gateway 2 can be installed at the service entrance. When the optional internal panel board is installed, the Backup Gateway 2 can also function as a load centre.
The Backup Gateway 2 communicated directly with Powerwall, allowing you to monitor energy use and manage backup energy reserves from any mobile device with the Tesla app.
Disclaimer: This product must be installed by a Tesla approved installer in order to avoid defaulting its warranty.
Features
- Provides energy management and monitoring
- Manage energy usage using the Tesla app
- Automatically detects outages
- Seamless transition to backup power
- Supports up to 10 AC-coupled Powerwalls
- Same aesthetic as the Powerwall
- Indoor and outdoor rated
Specifications
| AC Voltage (Nominal) | 120/240V |
| Feed-In Type | Split Phase |
| Grid Frequency | 60Hz |
| Current Rating | 200A |
| Maximum Input Short Circuit Current | 10kA |
| Overcurrent Protection Device | 100-200A; Service Entrance Rated |
| Overvoltage Category | Category IV |
| AC Meter | Revenue Accurate (+/- 0.2%) |
| Primary Connectivity | Ethernet, Wi-Fi |
| Secondary Connectivity | Cellular (3G, LTE/4G) |
| User Interface | Tesla App |
| Operating Modes | Support for Solar Self-Consumption, Time-Based Control, and Backup |
| Backup Transition | Automatic Disconnect for Seamless Backup |
| Modularity | Supports Up To 10 AC-Coupled Powerwalls |
| Dimensions | 660 x 411 x 149mm |
| Weight | 20.4kg |
| Mounting Options | Wall Mount, Semi-Flush Mount |
| Operating Temperature | -20C - 50C |
| Operating Humidity (RH) | Up to 100%, Condensing |
| Maximum Elevation | 3000m |
| Environment | Indoor and Outdoor Rated |
| Enclosure Type | NEMA 3R |
| Free Shipping | No |
|---|
