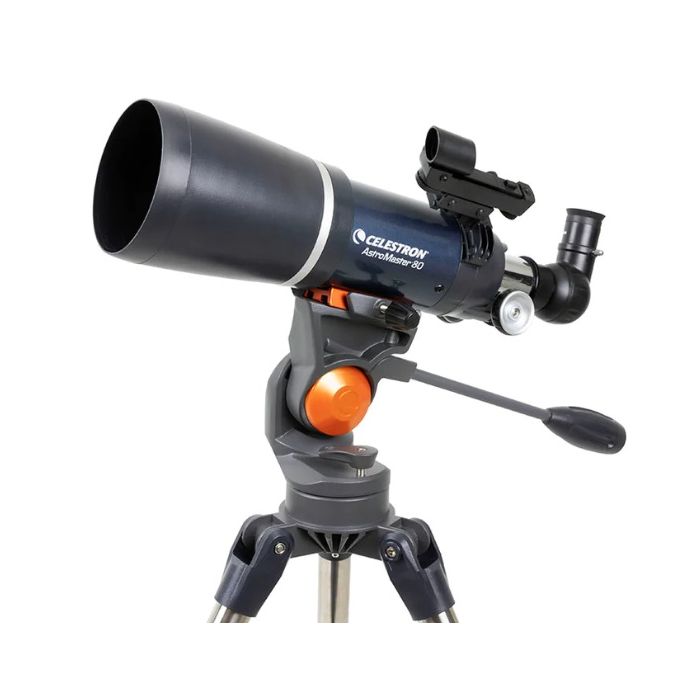

The Celestron Astromaster 80AZ is a short refractor telescope perfect for terrestrial and celestial viewing. The short focal length is ideal for viewing star clusters and nebulae, while the erect image star diagonal makes the optical tube ideal for using as a spotting scope during the day.
Setting up the telescope is a breeze and will have you observing in no time. Even on your first time out, you can assemble the telescope and its accessories in just a few minutes. The adjustable tripod legs allow you to customize the telescope's height or place it on raised surfaces like a picnic table. An included accessory tray will help you keep track of eyepieces and other small items while observing.
Brand | Sabre |
Optical Design | Refractor |
Aperture | 80mm (3.1") |
Focal Length | 400mm (15.74") |
Focal Ratio | f/5 |
Focal Length Of Eyepiece 1 | 20mm (0.78") |
Magnification Of Eyepiece 1 | 20x |
Focal Length Of Eyepiece 2 | 10mm (0.4") |
Magnification Of Eyepiece 2 | 40x |
Barlow Lens | Not Included |
Finderscope | StarPointer red dot finderscope |
Star Diagonal | Erect Image, 90 (1.25") |
Optical Tube | Aluminum |
Highest Useful Magnification | 189x |
Lowest Useful Magnification | 11x |
Limiting Stellar Magnitude | 12 |
Resolution (Rayleigh) | 1.74 arc seconds |
Resolution (Dawes) | 1.45 arc seconds |
Light Gathering Power (Compared To Human Eye) | 131x |
Secondary Mirror Obstruction | 25mm (1") |
Secondary Mirror Obstruction By Area | 4.96% |
Secondary Mirror Obstruction By Diameter | 22% |
Optical Coatings | Fully Coated |
Optical Tube Length | 711.2mm (28") |
Optical Tube Diameter | TBD |
Optical Tube Weight | 2.8 lbs (1.27 kg) |
Dovetail | CG-5 Dovetail bar |
Mount Type | Manual Alt Azimuth |
Height Adjustment Range (Includes Mount And Tripod) | 812.8mm - 1295.4mm (32"-51") |
Tripod Leg Diameter | 31.75mm (1.25") steel legs |
Accessory Tray | Yes |
Slew Speeds | Manual |
Tripod Weight | 7.6 lbs (3.44 kg) |
Dovetail Compatibility | CG-5 saddle plate |
Software | Celestron Starry Night Basic Edition Software and SkyPortal App |
Total Telescope Kit Weight | 10.4 lbs (4.71 kg) |
Free Shipping | No |
---|
