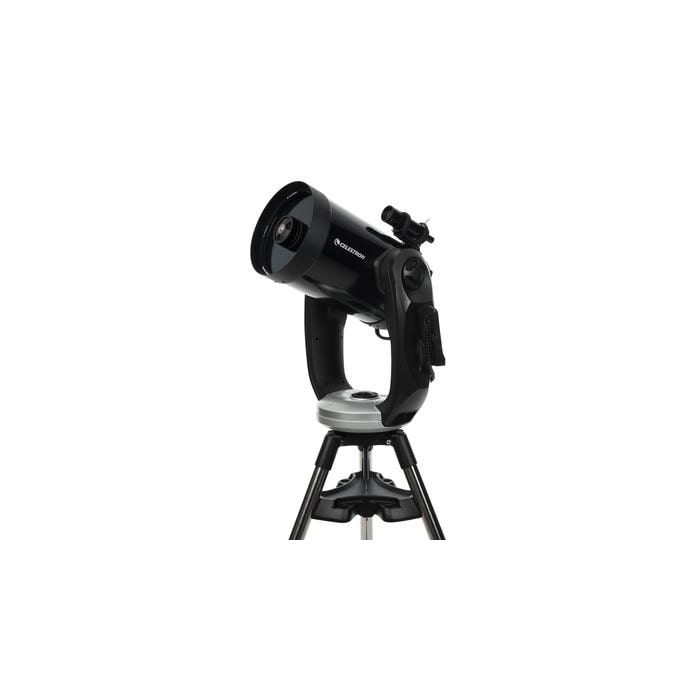

Celestron CPC 1100 GPS (XLT) Computerized Cassegrain - 280 mm
R186,869.00
SKU
C11075
Schmidt-Cassegrain optical design 11 inch aperture StarBright XLT optical coating system Internal focusing mechanism
Shipping restrictions apply.
Description
The Celestron CPC 1100 GPS (XLT) Computerized Cassegrain - 280 mm provides you with an optical tube and mount for near- and deep-space observation and astrophotography. Optically, it features a Schmidt-Cassegrain light path consisting of a corrector plate, a spherical primary mirror, and a secondary mirror. Complementing the optical system is the proprietary StarBright XLT optical coating system that improves light transmission and reflectivity across the entire visual spectrum. The combination of optical components and the StarBright XLT system produces bright and clear high-resolution images with true color rendition across the entire field of view with minimal distortion, aberrations, or off-axis comas.
Its motorized dual-tine fork mount has dual-axis servo motors that provide precision movements with minimal vibration and high resolution. It also has an integrated 16-channel GPS receiver that sends information to the hand controller and requires limited input from the user. This version of the telescope is offered here with just the optical tube assembly and mount, you will need to supply a heavy-duty tripod or permanent pier to use it properly.
The brain of the entire system is the NexStar+ computer controller. Equipped with a database of over 40,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog. It can also be programmed with up to 100 custom user-defined objects and have filters added for custom object lists. Its intuitive menu-driven user interface provides the power to observe the heavens with nine slew speeds and three tracking rates, plus anti-backlash compensation and Permanent Periodic Error Correction (PPEC) for smoother movements in the motors and improved tracking over time. Features such as guided tours, extended information on 200 popular objects, and multiple alignment options make the NexStar+ controller easy to use for both new users and experienced stargazers.
Features
- Schmidt-Cassegrain optical design
- 11 inch aperture
- StarBright XLT optical coating system
- Internal focusing mechanism
- Multi-layer mirror coatings
- 2800mm focal length
- NexStar+ hand controller
- Motorized Alt-Az fork mount
Specifications
| Optical Design | Schmidt-Cassegrain |
| Aperture | 279.4mm (11") |
| Focal Length | 2800mm (110") |
| Focal Ratio | f/10 |
| Focal Length of Eyepiece 1 | 40mm (1.57") |
| Magnification of Eyepiece 1 | 70x |
| Finderscope | 9x50 Finderscope with quick release bracket |
| Star Diagonal | 1.25" Star Diagonal |
| Optical Tube | Aluminum |
| Highest Useful Magnification | 660x |
| Lowest Useful Magnification | 40x |
| Limiting Stellar Magnitude | 14.7 |
| Resolution (Rayleigh) | 0.5 arc seconds |
| Resolution (Dawes) | 0.42 arc seconds |
| Light Gathering Power (Compared to human eye) | 1593x |
| Secondary Mirror Obstruction | 95mm (3.75") |
| Secondary Mirror Obstruction by Diameter | 34% |
| Secondary Mirror Obstruction by Area | 12% |
| Optical Coatings | Starbright XLT |
| Optical Tube Length | 610mm (24") |
| Optical Tube Diameter | 312.42mm (12.3") |
| Optical Tube Weight | 65 lbs (29.5 kg) with mount |
| Dovetail | None |
| Mount Type | Computerized Altitude-Azimuth Dual Fork Arm |
| Height adjustment range (includes mount and tripod) | 1397mm - 1778mm (55" - 70") |
| Tripod leg diameter | 50.8mm (2") Stainless Steel |
| Mount Head Weight | 65 lbs (29.5 kg) with optical tube |
| Accessory Tray | Yes |
| Tripod Weight | 19 lbs (8.6 kg) |
| Slew Speed | 9 slew speeds - max speed 5/second |
| Tracking Rates | Sidereal, Solar and Lunar |
| Tracking Modes | Altazimuth, EQ North and EQ South |
| GPS | Internal 16 channel |
| Dovetail Compatibility | None |
| Number of Auxiliary Ports | 2 AUX Ports (Hand Control can use any of the AUX Ports) |
| Autoguide Port | Yes |
| USB Port | Yes, on hand control |
| Power Requirements | 12 VDC-1.5A (Tip positive) |
| Motor Drive | DC servo motors |
| Alignment Procedures | Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align |
| Periodic Error Correction | Yes |
| Computerized Hand Control | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software | Celestron Starry Night Special Edition Software and SkyPortal App |
| Total Telescope Kit Weight | 84 lbs (38.1 kg) |
| Free Shipping | No |
|---|
