Schmidt-Cassegrain optical design Iconic orange tube design 8-inch aperture

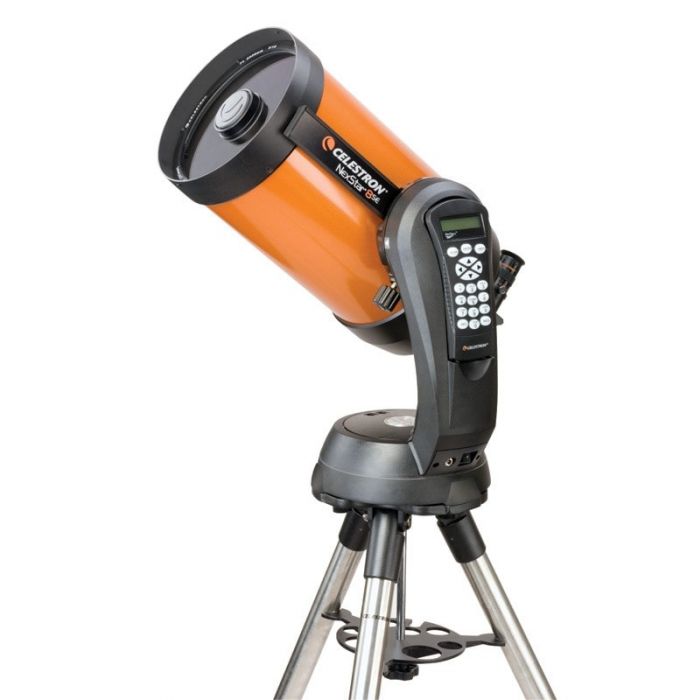

The Celestron NexStar 8SE Computerized Cassegrain - 203 mm eight-inch primary mirror packs enough light-gathering ability to observe the best that the solar system has to offer: Cassinis Division in Saturns rings, the cloud bands on Jupiter, and the Great Red Spot. Beyond the solar system, your 8SE will show you hundreds of pinpoint stars in the Hercules Globular Cluster, the spiral arms of the Whirlpool Galaxy, and more. And don't forget the Moon, you'll see craters and geographic features like never before.
Celestron's engineers created NexStar SEs unique, patented single fork arm mount. Its perfectly portable and makes setup quick and easy. Whats more, the NexStar SE breaks down into several lightweight and compact pieces, making it easy to transport, even in small vehicles. Youll have no problem getting the NexStar SE to your favourite observing site, or setting it up quickly in your backyard.
Of course, its whats inside the mount that really counts. Sturdy construction from high-quality components give NexStar SE the pointing and tracking accuracy needed to observe and follow your favorite targets with push-button ease. Use the included NexStar+ hand control to locate over 40,000 celestial objects, or take a Sky Tour and let your telescope show you the best objects currently visible.
Aligning your telescope is simple and painless, too, thanks to SkyAlign. This process makes alignment as easy as 1-2-3: just centre three bright objects in your eyepiece and press ALIGN. For even easier alignment, attach our StarSense AutoAlign and your NexStar SE aligns itself!
Optical Design | Schmidt-Cassegrain |
Aperture | 203.2mm (8") |
Focal Length | 2032mm (80") |
Focal Ratio | f/10 |
Focal Length of Eyepiece 1 | 25mm (.98") |
Magnification of Eyepiece 1 | 81x |
Finderscope | StarPointer red dot finderscope |
Star Diagonal | 1.25" Star Diagonal |
Highest Useful Magnification | 480x |
Lowest Useful Magnification | 29x |
Limiting Stellar Magnitude | 14 |
Resolution (Rayleigh) | 0.69 arc seconds |
Resolution (Dawes) | 0.57 arc seconds |
Light Gathering Power (Compared to human eye) | 843x |
Secondary Mirror Obstruction | 64mm (2.5") |
Secondary Mirror Obstruction by Diameter | 31% |
Secondary Mirror Obstruction by Area | 9.77% |
Optical Coatings | Starbright XLT |
Optical Tube Length | 432mm (17") |
Optical Tube Diameter | 232mm (9.1") |
Optical Tube Weight | 12 lbs (5.4 kg) |
Dovetail | CG-5 Dovetail bar |
Mount Type | Computerized Altitude-Azimuth Single Fork Arm |
Instrument load capacity | 12 lbs (5.44 kg) |
Height adjustment range (includes mount and tripod) | 965.2mm - 1422.4mm (38" - 56") |
Tripod leg diameter | 38.1mm (1.5") Stainless Steel |
Mount Head Weight | 11 lbs (5 kg) |
Accessory Tray | Yes |
Tripod Weight | 9 lbs (4.08 kg) |
Slew Speeds | 9 slew speeds - max speed 5/second |
Tracking Rates | Sidereal, Solar and Lunar |
Tracking Modes | Alt-Az, EQ North and EQ South |
GPS | N/A |
Dovetail Compatibility | CG-5 dovetail |
Number of Auxiliary Ports | 1x AUX Port |
Autoguide Port | Yes |
USB Port | Yes, Hand Control input |
Power Requirements | 8-AA batteries (not included) and 12 VDC-750 mA (Tip positive) |
Motor Drive | DC servo motors |
Alignment Procedures | SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, EQ North / EQ South Alignment (EQ align requires an equatorial wedge) |
Periodic Error Correction | No |
Computerised Hand Control | Double line, 18 character Liquid Crystal Display with 19 fiber optic backlit LED buttons |
NexStar+ Database | 40,000 objects, 200 user defined programmable objects. Enhanced information on over 200 objects |
Software | Celestron Starry Night Special Edition Software and SkyPortal App |
Total Kit Weight | 24 lbs (10.88 kg) |
Free Shipping | No |
---|
