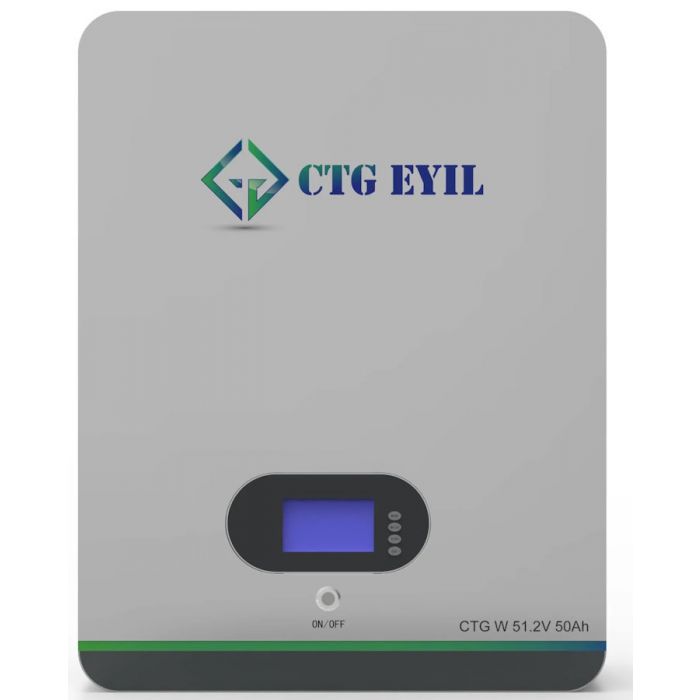

CTG Eyil Wallmount Lithium-Ion Battery - 2.56Kwh, 50Ah, 51.2V
R18,689.00
SKU
CTGW512V50AH
2.56kwh capacity
Scalable to 16 parallel
Smart bms (led display screen)
Easy installation
Shipping restrictions apply.
Description
Introducing the CTG Eyil Wallmount Lithium-Ion Battery - 2.56Kwh, 50Ah, 51.2V. A highly efficient and reliable energy storage solution designed for both residential and commercial applications. Featuring a 2.56KWh capacity, this battery pack is constructed with 3.2V 50Ah lithium iron phosphate cells in a 16S1P configuration, forming a powerful 51.2V50Ah lithium battery system. The intelligent Battery Management System (BMS) equipped with an LED display screen ensures optimal performance and safety, providing a dependable and efficient energy storage solution.
This battery pack supports up to 16 packs in parallel, allowing for easy scalability to expand capacity as your energy needs grow. It is crucial to use identical packs to ensure compatibility and optimal performance. The high voltage and efficiency of the CTG Eyil Wallmount Battery make it a robust addition to any energy storage system. Its CAN/RS485 communication modes enable seamless integration with existing setups, enhancing overall functionality.
Engineered for durability and ease of installation, the CTG Eyil Wallmount Battery weighs approximately 29 kg and measures 490mm x 380mm x 158mm, making it suitable for wall mounting to save valuable floor space. The battery offers a design life of around 15 years and can endure up to 4500 cycles at 25C with a 25A current, maintaining 70% capacity and 80% Depth of Discharge (DOD). Certified with ISO IEC 62620 and Bureau of Indian Standards, it meets high safety and performance standards. The 7-year warranty and smart BMS features, including over-temperature, short circuit, overvoltage, and over-discharge protections, ensure a safe and reliable energy storage solution.
Operating within a working voltage range of 43.2V - 58.4V and providing a nominal voltage of 51.2V with a nominal capacity of 50Ah, the CTG Eyil Wallmount Battery supports a rate charge/discharge current of 50A at 25C. The IP21 rating ensures protection against dust and water ingress, making it suitable for various environments.
The CTG Eyil Wallmount Lithium-Ion Battery's advanced features and robust design make it ideal for enhancing the energy efficiency of your home or supporting a commercial energy storage system. Its scalable capacity, high efficiency, and comprehensive safety features make it a dependable choice for maintaining a steady and reliable power supply. Invest in the CTG Eyil Wallmount Battery to enjoy the benefits of a high-quality, efficient, and long-lasting energy storage system.
Features
- 2.56kwh capacity
- Scalable to 16 parallel
- Smart BMS (LED display screen)
- Easy installation
- Can/rs485 communication
- High voltage
- High efficiency
- High voltage
- Easy installation
- Expandable system
- Smart BMS
Specifications
| Configuration | 1P165 |
| Working Voltage(V) | 43.2V - 58.4V |
| Nominal Voltage(V) | 51.2 V |
| Nominal Capacity (Ah) | 50 AH |
| Rated Energy(Kwh) | 2.56 KWH |
| Rate Charge/Discharge Current | 50A at 25+- 2 degrees |
| Max Charging Current | 50 A at 25+- 2 degrees |
| Max Discharging Current | 50 A at 25+- 2 degrees |
| Weight | Approx. 29 kg |
| Communication Mode | CAN & RS485 |
| Ip Grade | IP 21 |
| Dimensions (Lxwxh) | 490mm x 380mm x 158mm |
| Humidity Range | 0 - 3000m |
| Altitude | 5 - 80% |
| Design Life | +/- 15 Years |
| Cycle Life At 1C | 4500 cycles at 25, 25A current 70%, capacity 80% DOD |
| Warranty | 7 Year Warranty/4500 cycles. Ts & Cs Apply |
| Working Temperature | ISO IEC 62620, Bureau of Indian Standards |
| Certification | 0 - 55(charge) & -20 - 55(Discharge) |
| Storage Temp. & Humidity | -10 - 35(in 1 month storage) & 25+-2(in 3 months storage) |
| Smart BMS Features | Over Temperature Protection |
| Short Circuit Protection | |
| Overvoltage Protection | |
| Cut-off Protection | |
| Over Discharge Protection | |
| Overcurrent Protection | |
| RS485 / CAN Communication | |
| 4 Temperature Sensors |
| Free Shipping | No |
|---|
