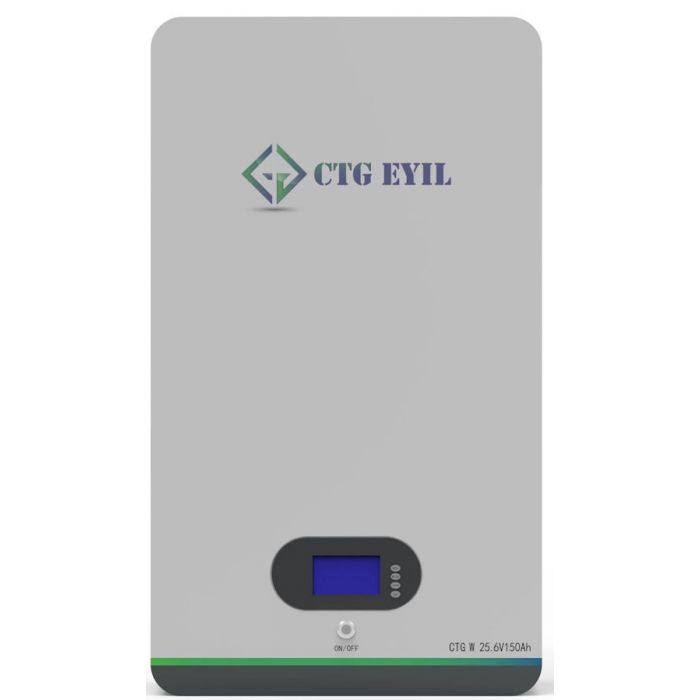

CTG Eyil Wallmount Lithium-Ion Battery - 3.84Kwh, 150Ah
R27,319.00
SKU
CTGW256V150AH
3.84kWh capacity
Scalable to 16 parallel
Smart BMS (LED Display screen)
Easy installation
Shipping restrictions apply.
Description
Introducing the CTG Eyil Wallmount Lithium-Ion Battery - 3.84Kwh, 150Ah. An exceptional energy storage solution tailored for both residential and commercial applications. With a substantial 3.84KWh capacity, this battery pack is built with 3.2V 50Ah lithium iron phosphate cells in a 3P8S configuration, forming a robust 25.6V150Ah lithium battery system. The intelligent Battery Management System (BMS) with an LED display screen ensures optimal performance and safety, making it a reliable and efficient choice for your energy storage needs.
This battery pack supports up to 16 packs in parallel, allowing for easy capacity expansion to meet growing energy demands. However, it's essential to parallel only identical packs to ensure compatibility and performance. The high voltage and efficiency of the CTG Eyil Wallmount Battery make it a powerful addition to any energy storage system. Its CAN/RS485 communication modes enable seamless integration with existing setups, enhancing overall functionality.
Designed for durability and ease of installation, the CTG Eyil Wallmount Battery weighs approximately 35 kg and measures 380mm x 660mm x 168mm, making it suitable for wall mounting to save floor space. The battery offers a design life of around 15 years and can endure up to 4500 cycles at 25C with a 50A current, maintaining 70% capacity and 80% Depth of Discharge (DOD). Certified with ISO IEC 62620 and Bureau of Indian Standards, it meets high safety and performance standards. The 7-year warranty and smart BMS features, including over-temperature, short circuit, overvoltage, and over-discharge protections, ensure a safe and reliable energy storage solution.
With its advanced features and robust design, the CTG Eyil Wallmount Lithium-Ion Battery is ideal for enhancing the energy efficiency of your home or supporting a commercial energy storage system. Its scalable capacity, high efficiency, and comprehensive safety features make it a dependable choice for maintaining a steady and reliable power supply. Invest in the CTG Eyil Wallmount Battery to enjoy the benefits of a high-quality, efficient, and long-lasting energy storage system.
Features
- 3.84kWh capacity
- Scalable to 16 parallel
- Smart BMS (LED Display screen)
- Easy installation
- CAN/RS485 communication
- High voltage
- High Efficiency
- High Voltage
- Easy Installation
- Expandable system
- Smart BMS
Specifications
| Configuration | 3P8S |
| Working Voltage(V) | 21.6V-29.2V |
| Nominal Voltage(V) | 25.6 V |
| Nominal Capacity (Ah) | 150AH |
| Rated Energy(Kwh) | 3.84 KWH |
| Rate Charge/Discharge Current | 25A at 25+- 2 degrees |
| Max Charging Current | 100 A at 25+- 2 degrees |
| Max Discharging Current | 150 A at 25+- 2 degrees |
| Weight | Approx. 35 kg |
| Communication Mode | CAN & RS485 |
| Ip Grade | IP 21 |
| Dimensions (Lxwxh) | 380mm x 660mm x 168mm |
| Humidity Range | 0 - 3000m |
| Altitude | 5 - 80% |
| Design Life | +/- 15 Years |
| Cycle Life At 1C | 4500 cycles at 25, 50A current 70%, capacity 80% DOD |
| Warranty | 7 Year Warranty/4500 cycles. Ts & Cs Apply |
| Working Temperature | ISO IEC 62620, Bureau of Indian Standards |
| Certification | 0 - 55(charge) & -20 - 55(Discharge) |
| Storage Temp. & Humidity | -10 - 35(in 1 month storage) & 25+-2(in 3 months storage) |
| Smart BMS Features | Over Temperature Protection |
| Short Circuit Protection | |
| Overvoltage Protection | |
| Cut-off Protection | |
| Over Discharge Protection | |
| Overcurrent Protection | |
| RS485 / CAN Communication | |
| 4 Temperature Sensors |
| Free Shipping | No |
|---|
