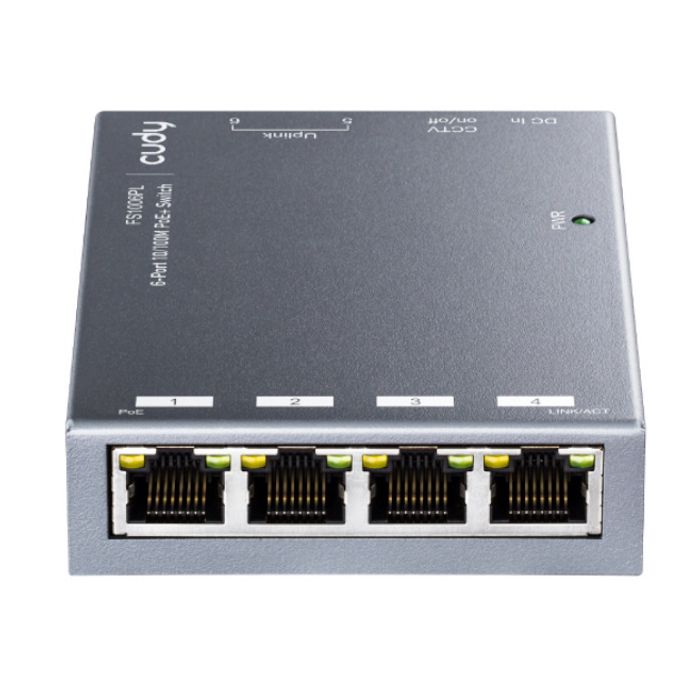

The Cudy FS1006PL 10/100M PoE+ Switch - 6 Port, Grey allows you to manage your home network with ease. It features 5 Ethernet ports and 1 uplink port. Its RJ-45 connectors support any 10/100Mbps Ethernet devices. For additional protection, it features a VLAN mode, which helps isolate the ports from each other.
It supports various Ethernet standards, such as IEEE 802.3/802.3u/802.3af/802.3at for increased bandwidth to alleviate network congestion, making the switch work reliably. Used for many applications, the Cudy FS1006PL works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses.
It even features a CCTV mode for longer distances up to 250 meters. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.
Power Supply | External Power Adaptor |
Voltage Range | DC48 - 57V |
Switch Consumption | <5W |
Speed | 1 - 5 Port: 10/100Mbps, Uplink:100Mbps |
Transmission Distance | 1-4port 100Meters with 100Mpbs, 200Meters with 10Mbps |
Uplink | 100Meter with 100Mpbs |
Ethernet Standard | IEEE 802.3/802.3u/802.3af/802.3at |
Switching Capacity | 1.2G |
Transfer Rate | 14,880pps for 10Mbps, 14,8800pps for 100Mbps |
MAC Address | 1K MAC address table |
Function On | The VLAN and 200 meters is starting to work |
Link/ACT | On Green: The port is connecting |
Blinks | The port is receiving or transmitting data |
Off | The port is not linked successfully with the device |
On | Orange: PD is connected |
Off | No PD is connected or power forwarding fails |
Capacity | 55W |
PoE Pin Assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) |
Colour | Grey |
Product Dimensions | 10.2 x 7.5 x 2.2 cm |
Free Shipping | No |
---|
