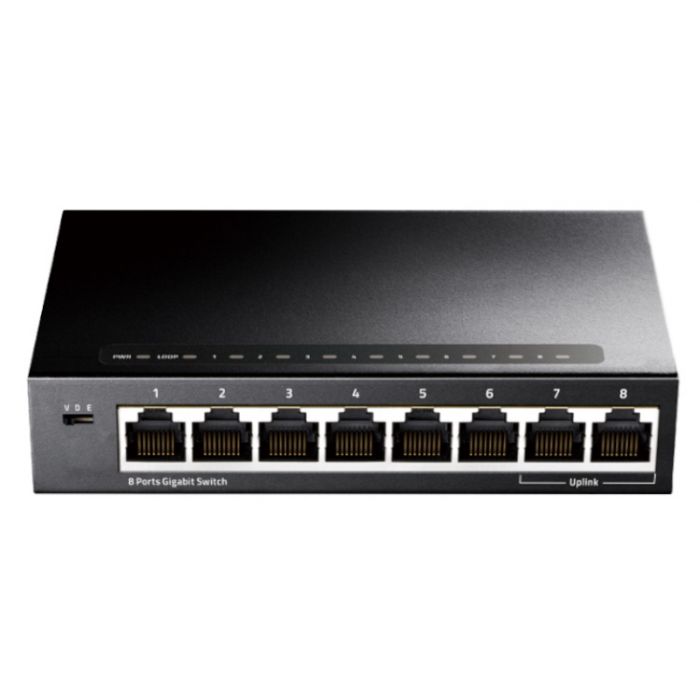

Cudy GS108 Gigabit Desktop Switch - 8 Port, Black

R379.00
SKU
GS108
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website



Description

The Cudy GS108 Gigabit Desktop Switch - 8 Port, Black allows you to manage your home network with ease. It supports bandwidth speeds of up to 16Gbps and features 6 Ethernet ports and 2 uplink ports. Its high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices.

For additional protection, it features a VLAN mode, which helps isolate the ports from each other. The IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Used for many applications, the Cudy GS105 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features an Extend mode for longer distances up to 250 meters.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.



Features

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
  • 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
  • Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
  • Store-and-Forward switching method
  • Supports 16K MAC address auto-learning & auto-ageing



Specifications

Standard Configuration 8 10/100/1000M RJ-45 adaptive ports
Switching Capacity 16Gbps
Throughput 11.9Mpps
Packet Buffer 2.5M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
Network Protocol IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control)
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT)
Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
Network Medium 10Base-T: Cat3, 4, 5 or above UTP(100m), 100Base-TX: Cat5 or above UTP(100m), 1000Base-TX: Cat5 or above UTP(100m)
VLAN Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8
Default Default mode, Support loop alarm
Extend Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as an uplink port
Power Input Voltage AC 100-240 V
Switch Input Voltage DC 5V
Product Dimensions 13.7 x 7.7 x 2.5 cm
Product Weight 300g
