2-mp 1/3.2" CMOS image sensor
Outputs max. 2 mp (1920 x 1080) at 25 fps
Low luminance
High definition image

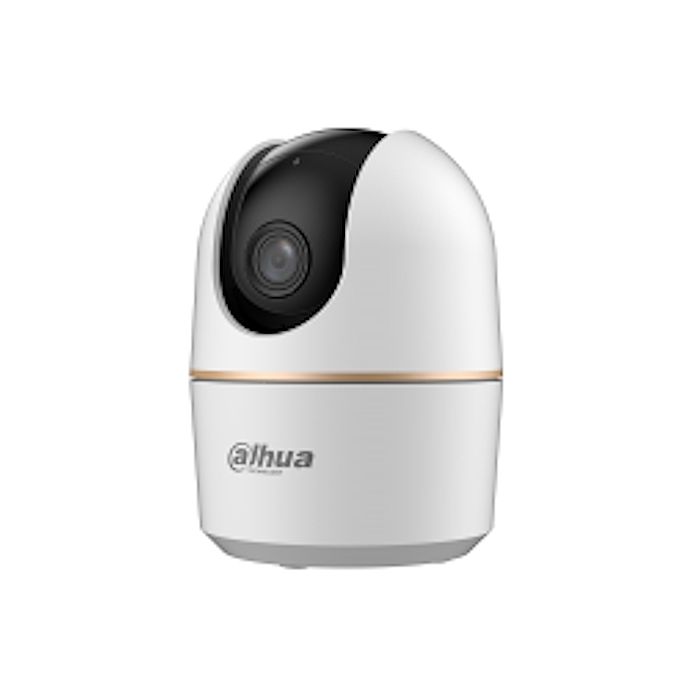

Introducing the Dahua H2A Indoor Fixed-Focal Wi-Fi Pan & Tilt Network Camera - 2MP, 1920x1080. Delivering exceptional surveillance capabilities in a compact and stylish design. Equipped with a 1/3.2" CMOS image sensor, this camera captures high-definition video with a maximum resolution of 1920 x 1080 pixels (2MP) at frame rates of 25 fps. Its low-luminance performance ensures clear imagery even in dim lighting conditions, making it suitable for both day and night use.
This versatile camera features pan and tilt functionality, allowing for horizontal rotation of 0 to 355 degrees and vertical tilt from -5 to +80 degrees. This range of motion ensures comprehensive monitoring of your space, eliminating blind spots. The built-in IR LED provides illumination up to 15 meters (49.21 feet) for effective night vision, automatically activating the illuminator in low light conditions. The Dahua H2A supports advanced H.265 video compression, which offers a high compression rate with an ultra-low bit-rate, facilitating efficient storage and transmission of video streams. It also includes features such as Digital Wide Dynamic Range (DWDR) to maintain image clarity in high-contrast lighting situations.
For audio capabilities, the camera includes a built-in microphone and speaker, allowing for two-way audio communication through the G.711a audio compression format. This makes it an ideal choice for interactive environments such as home monitoring, offices, and retail spaces. Storage is convenient with support for Micro SD cards up to 256 GB, alongside the capability to trigger alarms for events such as motion detection, SD card errors, and network disconnections. Utilizing Wi-Fi connectivity (IEEE 802.11b/g/n), the camera eliminates the need for complex cabling, making installation hassle-free. It operates effectively in a temperature range of -10C to +45C (+14F to +113F), and with an operating humidity of up to 95%, it is well-suited for indoor environments.
Camera | |
Image Sensor | 1/3.2" CMOS |
Max. Resolution | 1920 (H) x 1080 (V) |
Electronic Shutter Speed | Auto/Manual 1/3 s-1/100,000 s |
Illumination Distance | Up to 15 m (49.21 ft) (IR) |
Illuminator On/Off Control | Auto |
Illuminator Number | 1 (IR LED) |
Angle Adjustment | |
Pan | 0 to 355 |
Tilt | -5 to +80 |
Lens | |
Max. Aperture | |
3.6 Mm | F2.0 |
Field Of View | |
3.6 Mm | |
H | 79 |
V | 43 |
D | 94 |
Video | |
Video Compression | H.265 |
Video Frame Rate | |
Main Stream | 1920 x 1080 at 25 fps |
Sub Stream | 640 x 480 at 25 fps |
Resolution | 1080p (1920 x 1080), VGA (640 x 480) |
Video Bit Rate | |
H.265 | 80 kbps-4096 kbps |
Day/Night | Auto(ICR)/Colour/B/W |
Wdr | DWDR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Image Rotation | 0/180 |
Audio | |
Built-In Mic | Yes, built-in Mic |
Built-In Speaker | Yes, built-in speaker |
Audio Compression | G.711a |
Alarm | |
Alarm Event | No SD card, SD card full, SD card error, network disconnection, motion detection, audio detection |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
Wi-Fi | IEEE 802.11b/g/n 2.4-2.4835 GHz, 2.4 G |
Storage | Micro SD card (up to 256 GB) |
Management Software | DMSS |
Mobile Client | iOS, Android |
Certification | |
Certifications | CE |
Power | |
Power Supply | 5 VDC, 1A |
Power Consumption | |
Basic | 1.7 W |
Max. (Video Stream Acquiring + Ir + Ptz Rotation) | 3.5 W |
Environment | |
Operating Temperature | -10 C to +45 C (+14 F to +113 F) |
Operating Humidity | -/< 95% |
Structure | |
Casing Material | Plastic |
Product Dimensions | 77.8 mm x 108.1 mm (3.06" x 4.26") |
Net Weight | 204.2 g (0.45 lb) |
