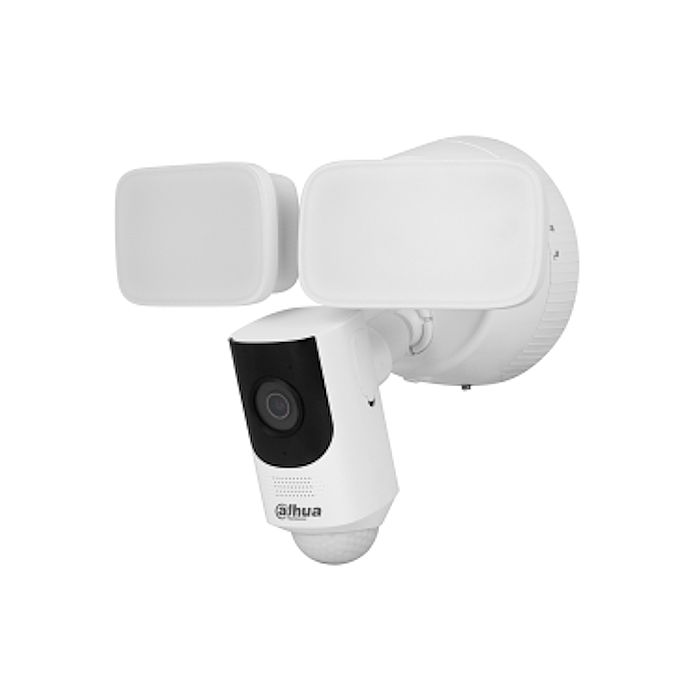

Dahua IPC-WL46A Fixed-Focal Floodlight Network Camera - 4MP, 2560x1440

R3,679.00
SKU
DH-IPC-WL46A

Outputs max. 4 MP (2560 x 1440) at 25 fps/30 fps
H.265 codec, high compression rate, ultra-low bit rate
100-240 VAC power supply, easy for installation
Active alarm with built-in 110 dB siren

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

Introducing the Dahua IPC-WL46A Fixed-Focal Floodlight Network Camera - 4MP, 2560x1440. A high-performance surveillance solution that combines exceptional image quality with advanced functionality. Equipped with a 1/3" CMOS sensor, this camera produces a maximum resolution of 2560 x 1440 pixels (4MP) at frame rates of up to 30 fps, ensuring clear and detailed images in both day and low-light conditions. With a minimum illumination of 0.005 lux in colour and 0.0005 lux in black and white, it excels in capturing accurate visuals even in challenging lighting. The built-in floodlight enhances its nighttime operation, providing 1500 to 2400 lumens of light with adjustable colour temperatures of 3000K (warm) and 6000K (cool), allowing for versatile monitoring options.

In addition to its image quality, the IPC-WL46A features advanced detection capabilities that distinguish between humans, vehicles, and animals, significantly reducing the occurrence of false alarms. Its pan, tilt, and rotate functionalities offer extensive coverage, with a pan range of -85 to +85 degrees, tilt from -90 to +45 degrees, and a full 360-degree rotation. The camera also incorporates smart streaming technology with support for H.264, H.265, and SMART H.264+/H.265+, ensuring flexible operation in various network environments.

Durability and ease of use are also hallmarks of the Dahua IPC-WL46A. With an IP65 rating, this camera is resistant to dust and water, enabling reliable performance in outdoor settings. It operates effectively in temperatures ranging from -20C to +50C (-4F to +122F), making it suitable for diverse climates. Additionally, the camera supports a maximum 256 GB Micro SD card for local storage, along with options for FTP, SFTP, and NAS, ensuring that your footage is securely stored. With its combination of high-quality imaging, smart technology, and robust design, the Dahua IPC-WL46A is an ideal solution for enhancing security in residential and commercial applications.



Features

  • Outputs max. 4 MP (2560 x 1440) at 25 fps/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • 100-240 VAC power supply, easy for installation
  • Active alarm with built-in 110 dB siren
  • Ip65 protection
  • Built-in microphone and speaker for real-time communication
  • Supports max. 256 g micro SD card and NVR storage
  • Dual-band 2.4 GHz and 5 GHz Wi-Fi options, ieee802.11a/b/g/n/ac
  • The built-in dual floodlights can switch between warm and cool colour temperature and have 4 floodlights modes
  • Detects humans, vehicles and animals to reduce the occurrence of false alarms
  • Smart h.264+/h.265+, flexible coding, applicable to various bandwidth and storage environments



Specifications

Camera
Image Sensor 1/3" CMOS
Max. Resolution 2560 (H) x 1440 (V)
Rom 128 MB
Ram 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Illumination 0.005 lux at F1.6 (Colour,30 IRE)
  0.0005 lux at F1.6 (B/W,30 IRE)
  0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 10 m (32.81 ft) (IR)
  30 m (98.43 ft) (Floodlight)
Illuminator On/Off Control Auto, Manual
Illuminator Number 1 (IR LED), 2 (Floodlight, colour can be switched between warm and cool)
Floodlight Brightness 1500-2400 lm
Floodlight Colour Temperature 3000K+/-200K (warm)
  6000K+/-300K (cool)
Floodlight Modes Motion Activation
  Manual
  Schedule
  PIR Activation
Pan/Tilt/Rotation Range
Camera:
Pan -85 to +85
Tilt -90 to +45
Rotation 0 to +360
Floodlight:
Tilt -90 to +90
Rotation -145 to +145
Pir Sensor Distance 10 m (the height of the device is 3 m, placed at an angle of 30 from the horizontal)
Pir Detection Range 270
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field Of View H: 98, V: 55, D: 115
Iris Control Fixed
Close Focus Distance 1.0 m (3.28 ft)
Dori Distance
Detect 61.2 m (200.79 ft)
Observe 24.5 m (80.38 ft)
Recognize 12.2 m (40.03 ft)
Identify 6.1 m (20.01 ft)
Video Compression H.264B, H.264, H.264H, H.265, MJPEG
Smart Codec Smart H.265+, Smart H.264+
Video Frame Rate
Main Stream 2560 x 1440 at (1-25 fps)
  2560 x 1440 at (1-30 fps)
Sub Stream 1 704 x 576 at (1-25 fps)
  704 x 480 at (1-30 fps)
Sub Stream 2 640 x 480 at (1 fps-25 fps)
  640 x 480 at (1 fps-30 fps)
Stream Capability 3 streams
Resolution 4M (2560 x 1440), 3M (2304 x 1296), 1080p (1920 x 1080), 1.3M (1280 x 960), 1M (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR
Video Bit Rate
H264 32 kbps8192 kbps
H265 32 kbps8192 kbps
Day/Night Auto(ICR)/Colour/B/W
Blc Yes
Hlc Yes
Wdr DWDR
White Balance Auto, natural, street lamp,outdoor, manual, regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of Interest (Roi) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0/180
Mirror Yes
Privacy Masking Yes
Audio
Built-In Mic Yes
Built-In Speaker Yes
Audio Compression G.711a, G.711Mu, G.726, PCM
Network
Wi-Fi IEEE802.11a/b/g/n/ac 2.4-2.4835GHz & 5.18-5.85GHz
Sdk And Api Yes
Cyber Security Video encryption, configuration encryption, Digest, WSSE, account lockout, security logs, generation and importing of X.509 certification, HTTPS, trusted boot, trusted execution, trusted upgrade
Network Protocol IPV4, IPV6, ARP&Ping, TCP, UDP, HTTP, RTSP, HTTPS, DDNS, Email, SNMP, Multicast, Auto Registration, Wireless Qos, Wi-Fi setting, hotspot scanning, 802.1x, UPnP status, Bonjour, UPnP, device discovery
Interoperability ONVIF, CGI, P2P, RTMP
User/Host 6 (Total bandwidth: 36 M)
Storage Micro SD card (support max. 256 GB), FTP, SFTP, NAS
Browser IE
  Chrome
  Firefox
Management Software DMSS
Mobile Client iOS, Android
Certification
Certifications:
Ce-Lvd En62368-1
Ce-Emc Electromagnetic Compatibility Directive 2014/30/EU
Ce-Red Radio Equipment Directive 2014/53/EU
Fcc 47 CFR FCC Part 15, Subpart B
Fcc Id FCC PART 15C
Power
Power Supply 100-240 VAC
Power Consumption
Basic 5.2 W (100240 VAC )
Max. (Illuminator+Ipc) 48.3 W (100240 VAC )
Environment
Operating Temperature -20 C to +50 C (-4 F to +122 F)
Operating Humidity -/< 95%
Storage Temperature -20 C to +50 C (-4 F to +122 F)
Protection IP65
Structure
Casing Metal + Plastic
Product Dimensions 270.7 mm x 217.2 mm x 195.6 mm (10.66" x 8.55" x 7.70") (L x W x H)
Net Weight 1.40 kg (3.08 lb)
Gross Weight 1.88 kg (4.14 lb)
