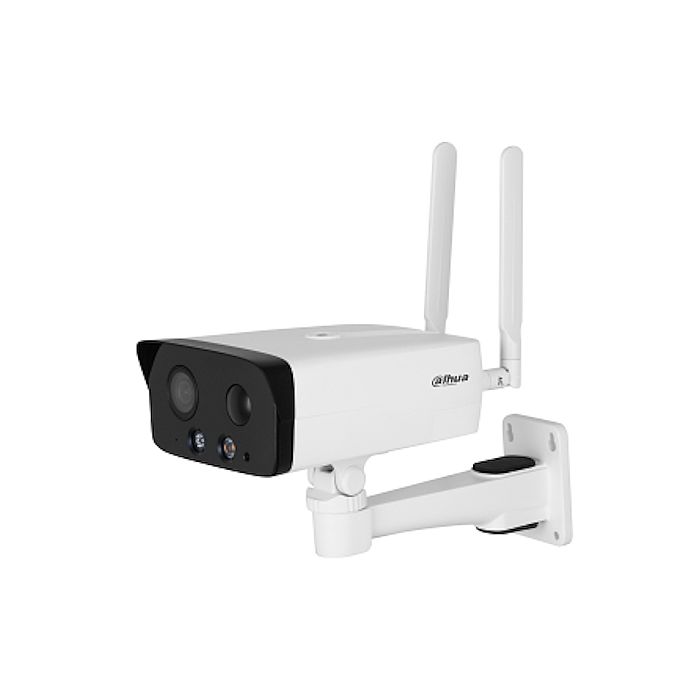

Dahua IR Fixed-Focal Bullet WizSense 4G Network Camera - 4MP, 2688x1520

R6,849.00
SKU
DH-IPC-HFW3441DG-AS-4G-EAU-B

Built-in warm light/IR led
Ip67 protection
Outputs max. 4 MP (2688 x 1520) at 25/30 fps
H.265 codec, high compression rate, ultra-low bit rate

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

Introducing the Dahua IR Fixed-Focal Bullet WizSense 4G Network Camera - 4MP, 2688x1520. A robust and versatile surveillance solution designed for high-performance monitoring in a variety of environments. Boasting a 4-MP 1/3" CMOS image sensor, it produces detailed images at a maximum resolution of 2688 x 1520 pixels at frame rates of 25 to 30 fps, ensuring clarity in both daytime and nighttime conditions. The advanced H.265 codec allows for high-quality video compression, improving storage efficiency and reducing bandwidth requirements.

Designed with flexibility in mind, this camera includes a built-in 4G module that supports all mobile networks, eliminating the constraints of traditional wired installations. Users are advised to test the local 4G network compatibility prior to installation. The built-in PIR sensor enhances security by accurately detecting human presence through passive infra-red technology, minimizing false alarms, and offering advanced features like intrusion and tripwire alerts that classify detected movements as either vehicle or human.

The device's IP67 protection rating makes it exceptionally resilient against dust and water, ensuring reliable operation in challenging outdoor conditions. It operates within a wide temperature range of -40C to +60C (-40F to +140F), making it suitable for various climates. Additionally, the camera incorporates sound and light alarm linkages that activate when an alarm is triggered, and it features integrated two-way audio with a built-in microphone and speaker for real-time communication.

The WizSense camera excels in terms of storage, equipped with an 8 GB eMMC memory chip and supporting up to 256 GB Micro SD cards for video recording. It includes comprehensive abnormality detection mechanisms, such as motion detection, video tampering, and various alarm triggers to ensure continuous monitoring and maintain security integrity.

With advanced connectivity options, the Dahua WizSense camera supports various network protocols, including IPv4 and IPv6, and is compatible with mobile management applications on both iOS and Android. This combination of features and technology makes the Dahua IR Fixed-Focal Bullet WizSense 4G Network Camera an excellent choice for anyone seeking reliable and sophisticated surveillance solutions for both residential and commercial applications.



Features

  • Built-in warm light/IR led
  • Ip67 protection
  • Outputs max. 4 MP (2688 x 1520) at 25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • 4-mp 1/3" CMOS image sensor, low luminance, and high definition image
  • Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
  • Built in high-performance 4g module that suits all mobile networks. Installation is no longer limited to wired networks. Please test the local 4g network with the camera before use
  • Built-in pir sensor that detects human body through passive infra-red which is sensitive to body temperature
  • Built-in 8 GB eMMC memory chip that protects key records from being lost
  • Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: motion detection, video tampering, audio detection, sd card full, sd card error, network disconnection, ip conflict and illegal access
  • Alarm: 1 in, 1 out, audio: 1 in, 1 out, rs485:1 (only report the information of solar battery, such as power and battery level), supports max. 256 g micro sd card, built in mic and speaker support two-way talk



Specifications

Brand Dahua
Camera
Image Sensor 1/3" CMOS
Max. Resolution 2688 (H) x 1520 (V)
Rom 128MB
Ram 256MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Illumination 0.01 Lux at F1.6 (Colour,30IRE)
  0.001 Lux at F1.6 (B/W,30IRE)
  0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance
Ir 50 m (164.04 ft)
Warm Light 30 m (98.43 ft)
Illuminator On/Off Control Auto, Manual
Illuminator Number 1 (IR LED), 1 (Warm light)
Angle Adjustment
Pan 0-360
Tilt -60-0
Rotation 0-360
Pir Sensor Distance 10 m (the height of device is 2.5 m, placed horizontally)
  5 m (the height of the device is 2 m, placed at an angle of 30 from the horizontal)
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm, 3.6 mm, 6 mm
Max. Aperture
2.8 Mm F1.6
3.6 Mm F1.6
6 Mm F1.6
Field Of View
2.8 Mm
H 102
V 54
D 121
3.6 Mm
H 84
V 42
D 101
6 Mm
H 52
V 48
D 61
Iris Control Fixed
Close Focus Distance
2.8 Mm 0.9 m (2.95 ft)
3.6 Mm 1.7 m (5.58 ft)
6 Mm 3.2 m (10.50 ft)
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Video Frame Rate
Main Stream 2688 x 1520 at (125/30 fps )
Sub Stream 704 x 576 at (125 fps)/704 x 480 at (1-30fps)
Stream Capability 2 streams
Resolution 4M (2688 x 1520), 4M (2560 x 1440), 3M (2304 x 1296), 1080p (1920 x 1080), 1.3M (1280 x960 ), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR
Video Bit Rate
H.264 32 kbps-8192 kbps
H.265 32 kbps-8192 kbps
Day/Night Auto(ICR)/Color/B/W
Blc Yes
Hlc Yes
Wdr 120 dB
Scene Self-Adaptation (Ssa) Yes
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of Interest (Roi) Yes (4 areas)
Smart Illumination Yes
Mirror Yes
Privacy Masking 4 areas
Audio
Built-In Mic Yes
Built-In Speaker Yes
Audio Compression G.711a, G.711Mu, G.726, PCM
Alarm
Alarm Event SD card error, SD card full, IP conflict, illegal access, motion detection, video tampering, Scene Changing, audio detection, security exception, PIR alarm, external alarm, low battery alarm, light alarm, sound alarm
Network
Network Port RJ-45 (10/100 Base-T)
Frequency
Lte Fdd B1/3/5/7/8/20/28
Lte Tdd B38/40/41
Wcdma B1/5/8
Gsm/Gprs/Edge B3/5/8
Sdk And Api Yes
Cybersecurity Video encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, generation and importing of X.509 certification, syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade
Network Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Interoperability ONVIF (Profile S/Profile G), CGI
User/Host 20 (Total bandwidth: 80 M)
Storage Bulit in eMMC (8 GB), FTPSFTP, Micro SD card (support max. 256 GB), NAS
Browser IE
  Chrome
  Firefox
Management Software DSS, DMSS
Mobile Client iOS, Android
Certification
Certifications
Ce-Lvd EN62368-1
Ce-Emc Electromagnetic Compatibility Directive 2014/30/EU
Ce-Red Radio Equipment Directive 2014/53/EU
Fcc 47 CFR FCC Part 15, Subpart B
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input
1 Channel In 5 mA 3-5 VDC
Alarm Output
1 Channel Out 300 mA 12 VDC
Rs-485 1 (Only report the information of solar battery, such as power and battery level)
Power
Power Supply 12 VDC
Power Consumption
Sleep Mode 0.03 W
General Mode 4 W
Power Saving Mode 2 W
Max. (4G Pulling Stream+Ir+Speaker+Warning Light) 7.5 W
Environment
Operating Temperature -40 C to +60 C (-40 F to +140 F)
Operating Humidity -/< 95%
Storage Temperature -40 C to +60 C (-40 F to +140 F)
Protection IP67
Structure
Casing Metal + plastic
Product Dimensions 132 mm x 219 mmx179 mm (5.20" x 8.62" x 7.05") (L x W x H)
Packaging Dimensions 280 mm x 239 mm x 146 mm (11.02" x 9.41" x 5.75") (L x W x H)
Net Weight 680 g (1.50 lb)
Gross Weight 1180 g (2.60 lb)
