Dahua IR Fixed-Focal Wi-Fi Dome Network Camera - 2MP, 1920x1080

R1,149.00
SKU
DH-IPC-HDBW1230DE-SW

Ip67, IK10 protection
12 VDC power supply
Built-in IR led
Outputs max. 2 MP (1920 x 1080) at 25/30 fps

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

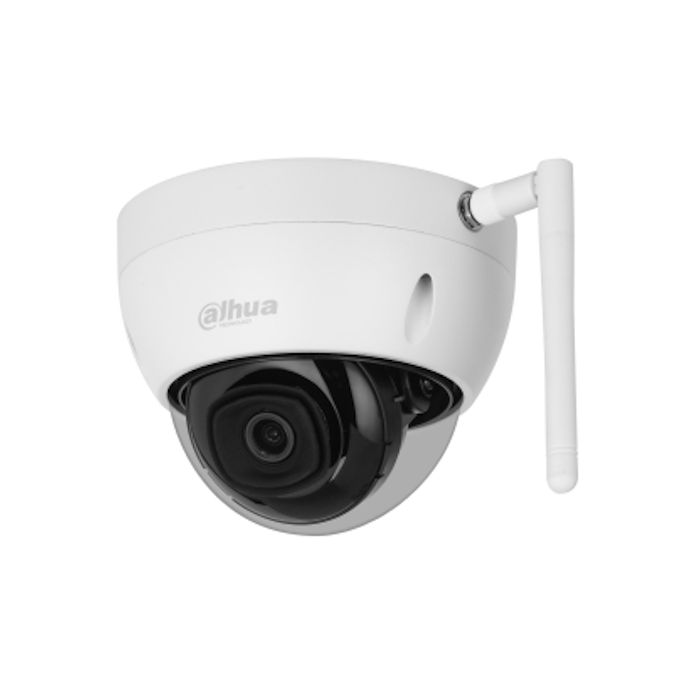

Introducing the Dahua IR Fixed-Focal Wi-Fi Dome Network Camera - 2MP, 1920x1080. A robust surveillance solution designed to deliver high-quality video performance with a maximum resolution of 1920 x 1080 pixels at frame rates of 25/30 fps. Equipped with a 1/2.8" CMOS image sensor, this camera excels in low-light conditions, with a minimum illumination of 0.025 lux in colour and 0.0025 lux in black and white. Additionally, the built-in IR LEDs extend visibility up to 30 meters (98.43 ft) in complete darkness, ensuring reliable monitoring around the clock.

This camera is built to endure challenging environments, featuring an IP67 rating for dust and water resistance and an IK10 rating for impact protection. These ratings make the Dahua camera suitable for outdoor installation, capable of withstanding harsh weather conditions and physical impacts. With smart features such as H.265 codec support for high compression rates and low bit rates, it optimizes bandwidth usage, while advanced capabilities like Day/Night (ICR) switching, DWDR, and 3D noise reduction enhance image quality across varying lighting conditions.

Additionally, the camera supports multiple connectivity options through a 2.4G Wi-Fi antenna, with a range of up to 80 meters in open spaces, as well as a wired connection via an RJ-45 network port. The device can accommodate a micro SD card of up to 256 GB, allowing for extensive local storage of recorded footage. With intelligent features for abnormality detection-including motion detection, video tampering alerts, and notifications for SD card status and network issues-this camera provides comprehensive monitoring capabilities suitable for diverse applications, making it an excellent choice for both residential and commercial security needs.



Features

  • Ip67, IK10 protection
  • 12 VDC power supply
  • Built-in IR led
  • Outputs max. 2 MP (1920 x 1080) at 25/30 fps
  • Supports max. 256 g micro sd card
  • H.265 codec, high compression rate, ultra-low bit rate
  • 2-mp 1/2.8" CMOS image sensor, low luminance, and high definition image
  • Smart h.264 +/h.265+, flexible coding, applicable to various bandwidth and storage environments
  • DWDR, 3d nr, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: motion detection, video tampering, no sd card, sd card full, sd card error, network disconnection, IP conflict, illegal access
  • Supports single antenna 2.4g Wi-Fi that covers a range of up to 80 m in an open area



Specifications

Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) x 1080 (V)
Rom 16 MB
Ram 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Illumination 0.025 lux at F2.0 (Colour, 30 IRE)
  0.0025 lux at F2.0 (B/W, 30 IRE)
  0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control Auto, Manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range
Pan 0-355
Tilt 0-75
Rotation 0-355
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm, 3.6 mm
Max. Aperture F2.0
Field Of View
2.8 Mm:
Horizontal 100
Vertical 53
Diagonal 120
3.6 Mm:
Horizontal 86
Vertical 43
Diagonal 102
Iris Control Fixed
Close Focus Distance
2.8 Mm 0.6 m (1.97 ft)
3.6 Mm 1.0 m (3.28 ft)
Video
Video Compression H.264B, H.264, H.264H, H.265
Smart Codec Smart H.265+, Smart H.264+
Video Frame Rate
Main Stream 1920 x 1080 at (1-25/30 fps)
Sub Stream 640 x 480 at (1-25 fps)
  640 x 480 at (1-30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 x 1080), 960p (1280 x 960), 720p (1280 x 720)
Bit Rate Control CBR/VBR
Video Bit Rate
H264 24 kbps-4096 kbps
H265 9 kbps-4096 kbps
Day/Night Auto (ICR)/Colour/B/W
Blc Yes
Wdr DWDR
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of Interest (Roi) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0/180
Mirror Yes
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE802.11b/g/n 2.4-2.4835 GHz
Wireless Range Up to 80 m (The performance varies based on actual environment)
Sdk And Api Yes
Cyber Security Video encrypton, confguraton encrypton, Digest, WSSE, account lockout, security logs, generaton and importng of X.509 certfcaton, HTTPS, trusted boot, trusted executon, trusted upgrade
Network Protocol IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP
Interoperability ONVIF (Profile S/Profile G), CGI, P2P
User/Host 6 (Total bandwidth: 36 M)
Storage Micro SD card (support max. 256 GB, sold separately)
Browser IE
  Chrome
  Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Client iOS, Android
Certification
Certifications
Ce-Lvd EN62368-1
Ce-Emc Electromagnetic Compatibility Directive 2014/30/EU
Ce-Red Radio Equipment Directive 2014/53/EU
Fcc 47 CFR FCC Part 15, Subpart B
Fcc Id FCC PART 15C
Power
Power Supply 12 VDC
Power Consumption
Basic 2 W (12 VDC)
Max. (H.265+Ir Intensity) 4.9 W (12 VDC)
Environment
Operating Temperature -40 C to +60 C (-40 F to +140 F)
Operating Humidity -/<95%
Storage Temperature -30 C to +60 C (-22 F to +140 F)
Protection IP67, IK10
Structure
Casing Metal
Product Dimensions 110.7 mm x 88.7 mm (4.33" x 3.49")
Net Weight 414 g (0.91 lb)
Gross Weight 592 g (1.31 lb)
