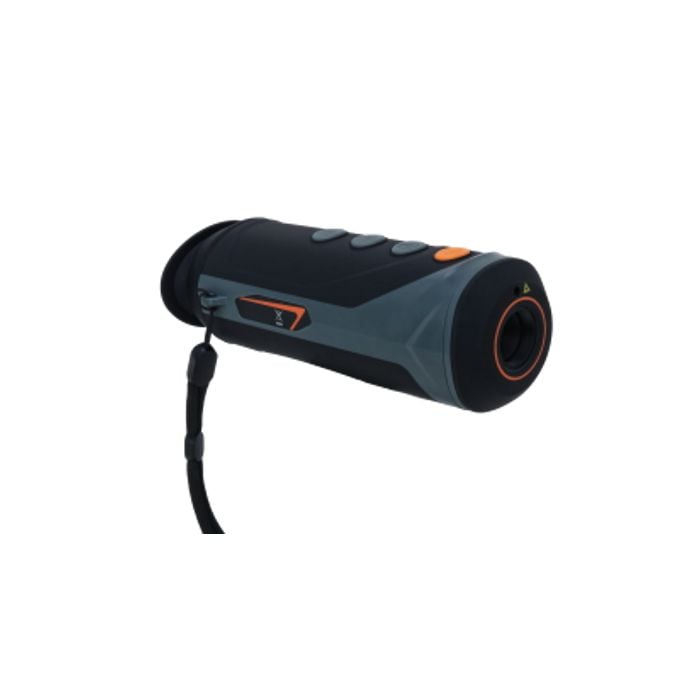

Dahua M20 Thermal Imaging Monocular
R12,999.00
SKU
M201
- Fire detection and alarm
- Vanadium oxide uncooled focal plane detector
- Ultra-low power consumption
- Provides a laser for aiming
- Calculates distance using video analysis
Description
The Dahua M20 Thermal Imaging Monocular captures sharp thermal imaging at a fast frame rate for smooth, impeccable vision on running targets and from moving vehicles. Designed to increase situational awareness at any time of day, M series can detect humans, animals, and objects in complete darkness, haze, or through glaring light, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.
Designed to be precise, this thermal camera produces vivid video images through its enhanced detector and Dahua-developed image processing algorithm. With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.
Multiple phones can connect to the monocular through the Wi-Fi at the same time. Through the mobile phone, you can watch the live view, capture images, record videos and configure parameters. By adjusting the diopter adjustment knob, the thermal camera can be set to match the eyesight of different users, ensuring that each user sees a clear image.
Features
- Free 32GB SD Card
- Vanadium oxide uncooled focal plane detector
- Ultra-low power consumption
- Fire detection and alarm
- Connects to the mobile app through Wi-Fi
- Connects to the external display through the CVBS port
- Provides a laser for aiming
- Calculates distance using video analysis
- Lightweight and portable
- IP67 rated
Specifications
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256 x 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm-14 μm |
| Sensitivity (NETD) | ≤40 mK@f/1.0 |
| Focal Length | 15 mm |
| Aperture | F1.0 |
| Field of View | H: 11.7-Degrees, V: 8.8-Degrees |
| Focus Control | Fixed-focal |
| Close Focus Distance | 3 m (9.84 ft) |
| Detection Range | 710 m (2,329.4 ft) |
| Digital Zoom | 4 levels |
| Colour Palettes | 4 (white hot alarm black hot iron red) |
| Display | |
| Video Compression | H.265 |
| Frame Rate | 50 Hz |
| Display Screen Dimensions | 0.2 inch |
| Resolution | 720 x 540 |
| Function | |
| Storage | Micro SD card (Max. 256G) |
| Laser Aiming | 180 m (590.55 ft), Class 2 (IEC 60825-1) |
| Buzzer | Yes |
| Intelligence | |
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Analog Output | 1 x CVBS output |
| Wi-Fi Hotspot | Yes |
| USB | Micro USB |
| Power | |
| Power Supply | 5 VDC, 0.3 A or built-in battery |
| Battery Capacity Display | Yes |
| Power Consumption | <1.5 W |
| Battery Life | >9 h (Wi-Fi hotspot off, @25C) |
| Charging Time | <3 h |
| Environment | |
| Operating Temperature | -20 C to +55 C (-4 F to +131 F) |
| Operating Humidity | ≤90% |
| Storage Temperature | -20 C to +60 C (-4 F to +140 F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 170.9 mm x 57.6 mm x 58.6 mm (6.73" x 2.27" x 2.31") (L x W x H) |
| Packaging Dimensions | 205 mm x 148 mm x 111 mm (8.07" x 5.83" x 4.37") (L x W x H) |
| Net Weight | 350 g (0.77 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| Installation | Handheld tripod |
| Drop Test Height | 2 m (6.56 ft) |
| Free Shipping | No |
|---|
