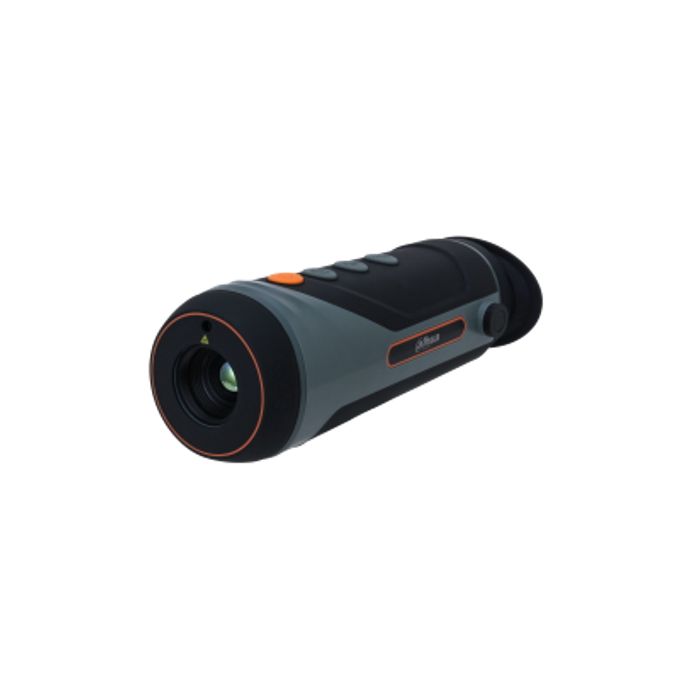

Dahua M40 Thermal Imaging Monocular
R19,999.00
SKU
M40
Description
The Dahua M40 Thermal Imaging Monocular captures sharp thermal imaging at a fast frame rate for smooth, impeccable vision on running targets and from moving vehicles. Designed to increase situational awareness at any time of day, M40 can detect humans, animals, and objects in complete darkness, haze, or through glaring light, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.
Designed to be precise, this thermal camera produces vivid video images through its enhanced detector and Dahua-developed image processing algorithm. With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.
Multiple phones can connect to the monocular through the Wi-Fi at the same time. Through the mobile phone, you can watch the live view, capture images, record videos and configure parameters. By adjusting the diopter adjustment knob, the thermal camera can be set to match the eyesight of different users, ensuring that each user sees a clear image.
Features
- Free 32GB SD Card included
- Vanadium oxide uncooled focal plane detector
- Ultra-low power consumption
- Fire detection and alarm
- Connects to the mobile app through Wi-Fi
- Connects to the external display through the CVBS port
- Provides a laser for aiming
- Calculates distance using video analysis
- Lightweight and portable
- IP67 rated
Specifications
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 400 x 300 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm-4 μm |
| Sensitivity (NETD) | ≤35 mK@f/1.0 |
| Aperture | F1.0 |
| Focal Length | 19 mm |
| Field of View | H: 20.4-Degrees V: 15.3-Degrees |
| Focus Control | Fixed-focal |
| Close Focus Distance | 5.8 m (19.02 ft) |
| Detection Range | 650 m (2,132.55 ft) |
| Thermal Digital Zoom | 4 levels |
| Colour Palettes | 4 (white hot alarm black hot iron red) |
| Display | |
| Video Compression | H.265 |
| Frame Rate | 50 Hz |
| Display Screen Dimensions | 0.4 inch |
| Resolution | 1280 (H) x 960(V) |
| Function | |
| Storage | Micro SD card (Max. 256 G) |
| Laser Aiming | 180 m (590.55 ft), Class 2 (IEC 60825-1) |
| Buzzer | Yes |
| Intelligence | |
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Analog Output | 1 x CVBS output |
| Wi-Fi Hotspot | Yes |
| USB | Micro USB |
| Power | |
| Power Supply | 5 VDC, 0.5 A or built-in battery |
| Battery Capacity Display | Yes |
| Power Consumption | <2.2 W |
| Battery Life | >5 h (Wi-Fi hotspot off, @25C) |
| Charging Time | <3 h |
| Environment | |
| Operating Temperature | -20 C to +55 C (-4 F to +131 F) |
| Operating Humidity | ≤90% |
| Storage Temperature | -20 C to +60 C (-4 F to +140 F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 187.5 mm x 66.5 mm x 68.5 mm (7.38" x 2.61" x 2.69") (L x W x H) |
| Packaging Dimensions | 228 mm x 186 mm x 124 mm (8.97" x 7.32" x 4.88") (L x W x H) |
| Net Weight | 450 g (0.99 lb) |
| Gross Weight | 1.1 kg (2.42 lb) |
| Installation | Handheld, tripod |
| Drop Test Height | 2 m (6.56 ft) |
| Free Shipping | No |
|---|
