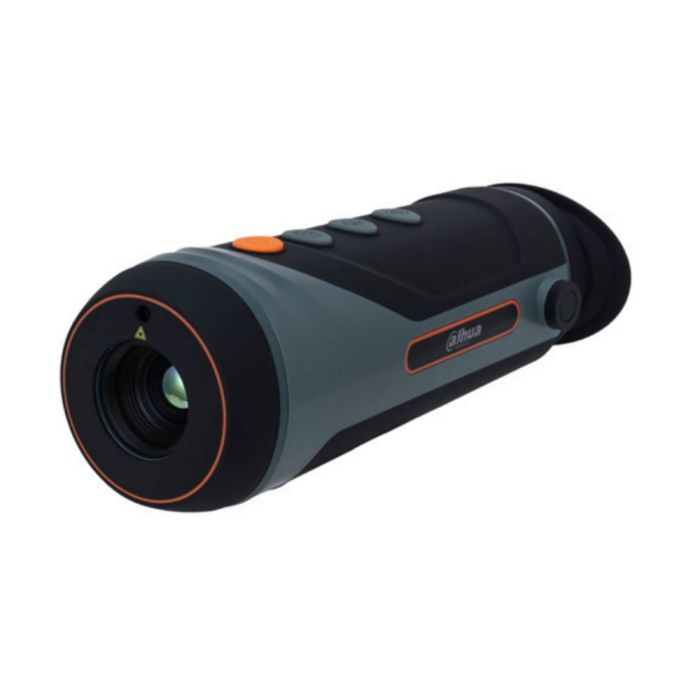

Dahua M60 Thermal Imaging Monocular
R35,999.00
SKU
M60
Description
Be at the top of your game with the Dahua M60 Thermal Imaging Monocular. This monocular captures sharp thermal imaging at a fast frame rate for smooth, impeccable vision on running targets and from fast moving vehicles. The monocular is designed to increase situational awareness at any time of the day.
The monocular provides a laser for aiming, calculates distance using video analysis and does all this while being able to connect to an external display through the CVBS port, to give the monocular a modern touch Dahua has designed it to be able to connect to the mobile app through Wi-Fi. The monocular can detect humans, animals, and objects in complete darkness, haze, or through glaring light, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.
Features
- Free 32GB SD Card included
- Vanadium oxide un-cooled focal plane detector
- Ultra-low power consumption
- Fire detection and alarm
- Connects to the mobile app through Wi-Fi
- Connects to the external display through the CVBS port
- Provides a laser for aiming
- Calculates distance using video analysis
- Lightweight and portable
- IP67 rated
Specifications
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 x 512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm - 14 μm |
| Sensitivity (NETD) | 50 mK@f/1.0 |
| Focal Length | 25 mm |
| Aperture | F1.0 |
| Field of View | H: 18.0 Degrees V: 13.5 Degrees |
| Focus Control | Fixed-focal |
| Protection | IP67 |
| Drop Test Height | 2m / 6.56ft |
| Close Focus Distance | 26m / 85.30ft |
| Digital Zoom | 4 Levels |
| Colour Palettes | White Hot/Alarm/Rainbow/Iron Red |
| Display | |
| Video Compression | H.265 |
| Frame Rate | 50Hz |
| Display Screen Dimensions | 0.4" |
| Resolution | 1280 x 960 (H x V) |
| Function | |
| Storage | Micro SD card (Max. 256 G) |
| Laser Aiming | 180 m (590.55 ft), Class 2 (IEC 60825-1) |
| Buzzer | Yes |
| Intelligence | |
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Analog Output | 1 x CVBS output |
| Wi-Fi Hotspot | Yes |
| USB | Micro USB |
| Power | |
| Power Supply | 5 VDC, 0.5 A or builtin battery |
| Battery Capacity Display | Yes |
| Power Consumption | |
| Battery Life | >5 h(Wi-Fi hotspot off, @25) |
| Charging Time | |
| Environment | |
| Operating Temperature | 20 Degrees Celsius to +55 Degrees Celsius / 4 Degrees Fahrenheit to +131 Degrees Fahrenheit |
| Operating Humidity | 90% |
| Storage Temperature | 20 Degrees Celsius to +60 Degrees Celsius / 4 Degrees Fahrenheit to +140 Degrees Fahrenheit |
| Free Shipping | No |
|---|
