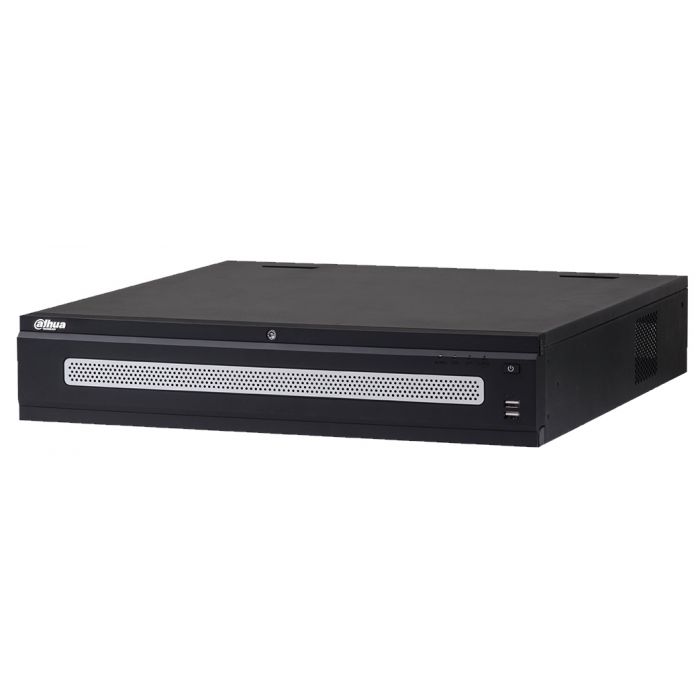

Dahua NVR608-64/128-4KS2 64 Channel Super 4K Network Video Recorder - Black
R23,279.00
SKU
DHINVR608644KS2
New 4.0 user interface
Intel Processor
Max 128 IP Camera Inputs
Max 384Mbps Incoming Bandwidth
Up to 12MP Resolution for Preview and Playback
Shipping restrictions apply.
Manufacturer's Website
Description
The Dahua NVR608-64/128-4KS2 64 Channel Super 4K Network Video Recorder - Black offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut, operation menu, remote management, and control, centre storage, edge storage, and backup storage.
Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centres, education, and financial institutions. The NVR is compatible with numerous third-party devices, making it the perfect solution for surveillance systems with or without a video management system (VMS).
Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras. Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording. Fisheye Dewarping. The NVR features multiple fisheye dewarping modes to make viewing video easy whether it's life or during playback.
Features
- New 4.0 user interface
- Intel Processor
- Max 128 IP Camera Inputs
- Max 384Mbps Incoming Bandwidth
- Up to 12MP Resolution for Preview and Playback
- Supports RAID 0/1/5/6/10
- Smart Tracking and Intelligent Video
- 16-channel decoding@1080p (30 fps)
- Self-adaptive decoding capability
Specifications
| Main Processor | Industrial embedded micro-processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/local GUI |
| Perimeter Protection By Camera | |
| Performance | 24 channels |
| AI Search | Search pictures by channel, time, event type |
| Face Recognition By Camera | |
| Performance | 24 channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| AI Search | Search pictures by channel, time and face attributes |
| SMD Plus By Camera | |
| Performance | 32 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video Metadata By Camera | |
| Performance | 12 channels |
| Human Body | Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella |
| Vehicle | Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region |
| Non-motor Vehicle | Type, colour, number of passengers, helmet |
| AI Search | Support search target video by metadata |
| ANPR By Camera | |
| Performance | 8 channels |
| Stereo Analysis by Camera | |
| Performance | 32 channels |
| AI Search | Search by target classification (Fall Detection, People Approach Detection, People No. Exception Detection, People Staying Detection, Violence Detection) |
| Video | |
| Access Channel | 64/128 |
| Network Bandwidth | 384 Mbps for access, 384 Mbps for storage and 384 Mbps for forwarding |
| Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/960p/720p/D1/CIF/QCIF |
| Decoding Capability | 16-ch@1080p (30 fps) |
| Video Output | VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, HDMI1/HDMI2: 3840 x 2160@30 fps, 3840 x 2160@25fps, 1920 x 1080, 1280 x 1024, 1280 x 720, 1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output, Support 4K display for both HDMI1 and HDMI2 |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16 |
| Third Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more |
| Compression | |
| Video | Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG |
| Audio | MP2/G726/G729/G722/G723/G711A/G711U/PCM |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P, iSCSI |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF (profile T/S/G), CGI, SDK |
| Browser | Chrome, IE9 or later, Firefox |
| Record Playback | |
| Multi-channel Playback | 1/4/9/16 |
| Record Mode | Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS) |
| Storage Method | Local HDD and network |
| Backup | Hard drive, USB device, eSATA device |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame, 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Storage | |
| Disk Group | Support |
| Raid Support | RAID 0/1/5/6/10 |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, local alarm, PIR alarm, IPC alarm |
| Anomaly Alarm | Camera offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
| Intelligent Alarm | Perimeter protection, face detection, face recognition, SMD, video metadata (human, motor-vehicle, non-motor vehicle), ANPR, people counting, stereo analysis, crowd distribution, heatmap, video quality diagnosis |
| Alarm Linkage | Record, snapshot, IPC external alarm output, buzzer, log, preset, email |
| External Port | |
| Audio Input | 1 channel, RCA connector |
| Audio Output | 1 channel, RCA connector |
| HDD | 8 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature. Supports Hot-swap. |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| eSATA | 1 eSATA |
| RS-232 | 1 channel, used to debug and pass through serial data |
| RS-485 | 1 channel, used to control PTZ, and it supports multiple protocols |
| USB | 2 front USB 2.0 ports, 2 rear USB 3.0 ports |
| HDMI | 2 |
| VGA | 1 |
| Network | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| General Parameter | |
| Power Supply | Single, AC100V240V, 5060 Hz |
| Power Consumption | < 20 W (Without HDD) |
| Net Weight | 9 kg (19.8 lb) (Without HDD) |
| Gross Weight | 10.5 kg (23.1 lb) (Without HDD) |
| Product Dimensions | 444 mm x 459.1 mm x 95 mm (W x L x H), 17.48 inch x 18.08 inch x 3.74 inch (W x L x H) |
| Operating Conditions | 10 C to +55 C (+14 F to +131 F), +35 C (+95 F) when raid enabled |
| Storage Conditions | 0 C to +40 C (+32 F to +104 F) |
| Operating Humidity | 10%93% (RH) |
| Storage Humidity | 30%85% (RH) |
| Operating Altitude | 3000 m (9843 ft) |
| Certifications | CE: EN55022, EN55024, EN50130-4, EN60950-1, FCC: Part 15 Subpart B, ANSI C63.4-2014, UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1 |
| Free Shipping | No |
|---|
