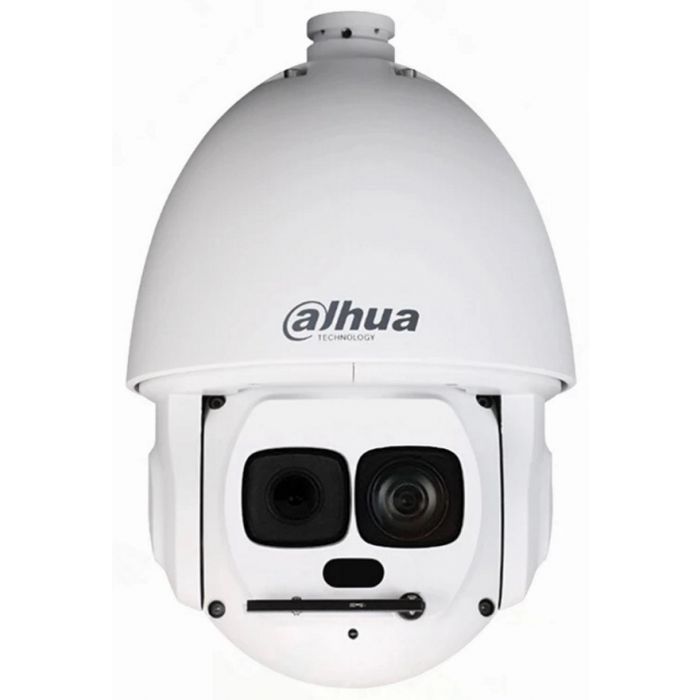

The Dahua SD6AL445XA-HNR 45x Starlight Laser WizMind Network PTZ Surveillance Camera - 4MP features powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.
For challenging low-light applications, Dahuas Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing colour details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments. The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Camera | |
Image Sensor | 1/2.8" CMOS |
Pixel | 4MP |
Max. Resolution | 2560 (H) x 1440 (V) |
ROM | 4GB |
RAM | 1GB |
Electronic Shutter Speed | 1/1 s1/30000 s |
Scanning System | Progressive |
Min. Illumination | Colour: [email protected], B/W: [email protected], 0Lux (IR light on) |
Illumination Distance | 550m (1804.46 ft) |
Illuminator On/Off Control | Zoom Prio/Manual/SmartIR/Off |
Illuminator Number | 2 IR lights, 1 Laser |
Wiper | Support |
Lens | |
Focal Length | 3.95 mm177.7 mm |
Max. Aperture | F1.6F4.9 |
Field of View | H: 70.3 1.8 Degrees, V: 37 1 Degrees, D: 69.3 2 Degrees |
Optical Zoom | 45x |
Focus Control | Auto/Semi-Auto/Manual |
Close Focus Distance | 0.01 m3 m (0.03 ft9.84 ft) |
Iris Control | Auto |
DORI Distance | Detect: 3554m (11660.10 ft), Observe: 1421.6m (4664.04 ft), Recognize: 710.8 m (2332.02 ft), Identify: 355.4m (1166.01 ft) |
PTZ | |
Pan/Tilt Range | Pan: 0 - 360 Degrees endless, Tilt: 20 + 90 Degrees, auto flip 180 Degrees |
Manual Control Speed | Pan: 0.1-Degrees 200-Degrees/s, Tilt: 0.1 120-Degrees/s |
Preset Speed | Pan: 240-Degrees/s Tilt: 200-Degrees/s |
Presets | 300 |
Tour | 8 (up to 32 pre-sets per tour) |
Pattern | 5 |
Scan | 5 |
Power-Off Memory | Support |
Idle Motion | Preset/Tour/Pattern/Scanning |
Protocol | DH-SD, Pelco-P/D (auto recognition) |
General Intelligence | |
Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly |
IVS | Object abandoned/missing |
Artificial Intelligence | |
Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
Face Detection | Support |
SMD PLUS | Support |
Auto Tracking | Support |
Video | |
Compression | H.265, H.264B, H.264M, H.264H, MJPEG, MPEG4, H.265+, H.264+, MJPEG (sub stream) |
Streaming Capability | 3 streams |
Resolution | 4M (2560 x 1440) 3M (2048 x 1536) 1080P (1920 x 1080) 720P (1280 x 960) D1 (704 x 576/704 x 480) CIF (352 x 288/352 x 240) |
Frame Rate | Main stream: 4M/3M (125/30 fps), 1080P/1.3M/720P (125/30 fps), Sub stream 1: D1/CIF (125/30 fps), Sub stream 2: 1080P (125/30 fps), 720P (125/30 fps) |
Bit Rate Control | Variable/Constant |
Bit Rate | Main stream with default resolution: H.264: 3 Kbps20480 Kbps, H.265: 3 Kbps20480 Kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Support |
WDR | 120dB |
HLC | Support |
White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
Gain Control | Auto/Manual |
Noise Reduction | 2D/3D |
Motion Detection | Support |
Region Of Interest (RoI) | Support |
Image Stabilization | Electronic |
Defog | Digital |
Digital Zoom | 16x |
Flip | 180-Degrees |
Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
Audio | |
Compression | G.711a G.711Mu G.726 AAC MPEG2-Layer2 G.722.1 G.729 G.723 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | IPv4 IPv6 HTTP HTTPS 802.1x Qos FTP SMTP UPnP SNMPv1/v2c/v3 (MIB-2) DNS DDNS NTP RTSP RTP TCP UDP IGMP ICMP DHCP PPPoE ARP RTCP |
Interoperability | ONVIF Profile S&G&T CGI |
Streaming Method | Unicast/Multicast |
User/Host | 19 |
Storage | FTP Micro SD card (256G) P2P |
Browser | IE7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
Management Software | Smart PSS DSS DMSS Easy4ip IVSS |
Mobile Phone | IOS Android |
Certification | CE: EN62368-1 EN55032 EN61000-3-2 EN61000-3-3 EN55024 EN55035 EN50130-4 FCC: 47 CFR FCC Part15, SubpartB, ClassA ANSI C63.4: 2014 |
Port | |
RS-485 | 1 (Baud rate range: 1200 bps115200 bps) |
Audio Input | 1 |
Audio Output | 1 |
Alarm I/O | 7/2 |
Power | |
Power Supply | DC36V/2.23A HI-PoE |
Power Consumption | Basic: 20W, Max.: 36W (IR light and PTZ on at minimum voltage) |
Environment | |
Operating Temperature | -40 C - 70 C (-40 F to 158 F) |
Operating Humidity | <95% |
Protection | IP67 TVS 8000V lightning proof Surge protection |
Structure | |
Casing | Metal |
Dimensions | 382mm x 240mm (15.04" x 9.45") |
Net Weight | 6.8 kg (14.99 lb) |
Gross Weight | 9.2 kg (20.28 lb) |
