Davis Vantage Vue Weather Station With Weatherlink Console - 1,000/300 M
R20,929.00
SKU
6242EU
Real-time data updates every 2.5 seconds
Self-contained, easy-to-install
Transmission range of 1,000/300 m
Description

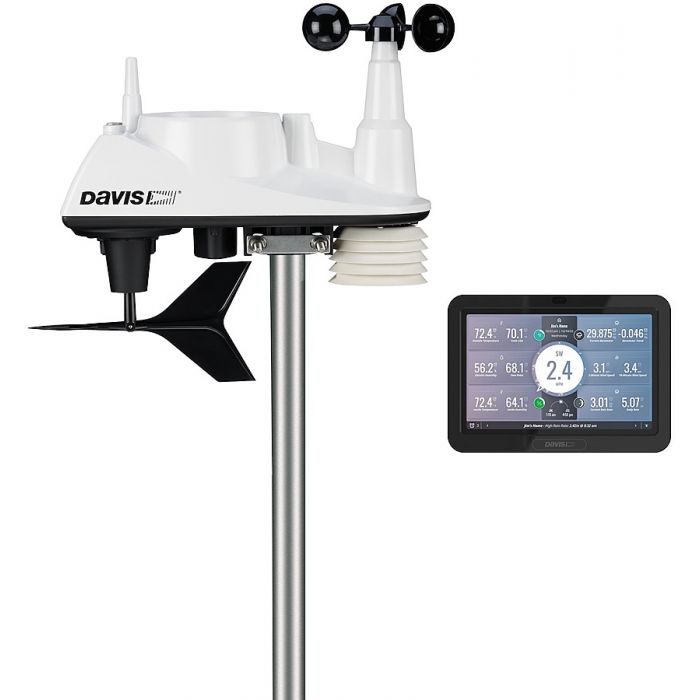

Introducing the Davis Vantage Vue Weather Station With Weatherlink Console - 1,000/300 M. Offering an unparalleled weather monitoring experience, providing accurate and reliable real-time data updates every 2.5 seconds. This comprehensive weather station is designed as an integrated, self-contained system that includes both a sensor suite and a user-friendly console. The sensor suite features an impressive transmission range of 1,000 feet (300 meters), ensuring that users can receive data from considerable distances without sacrificing accuracy. Constructed from rugged, weatherproof materials, the sensor suite is built to withstand the elements, delivering years of dependable weather data.
Equipped with a variety of sensors, the Vantage Vue allows users to monitor an extensive array of weather conditions. You can track inside and outside temperatures, humidity levels, barometric pressure, wind speed and direction, rainfall, dew point, wind chill, and even forecast information and moon phase. Additionally, customizable alarms provide alerts for specific conditions, helping you stay informed about your local weather. The system's solar-powered sensor suite includes a battery backup, while the console operates on AC power with its own battery backup, ensuring uninterrupted data collection even in adverse conditions.
User interaction is facilitated through the WeatherLink Console (6313), which boasts a vibrant HD colour touch screen. The console's sleek dimensions of 8.25" x 6" x 0.75" make it compact yet functional, allowing for easy access to real-time weather data. The console is designed to operate in a temperature range of +32F to +122F (0C to +50C), with backup battery life lasting approximately 14 hours depending on power settings. The consoles' compatibility with WeatherLink Cloud enables users to access their data from anywhere, any time, providing a seamless blend of technology and convenience for any weather enthusiast or professional. Whether monitoring for agricultural purposes, planning outdoor activities, or simply staying informed, the Vantage Vue Weather Station meets a diverse range of needs with precision and ease.
Features
- Accurate and reliable weather monitoring
- Real-time data updates every 2.5 seconds
- Self-contained, easy-to-install
- Transmission range of 1,000/300 m
- Sensor suites rugged, weatherproof housing
- Solar-powered with battery backup
- Weatherlink cloud compatibility
Specifications
| Dimensions | 18.00" x 7.25" x 15.13" Inch (45.7 cm x 18.4 cm x 38.4 cm) |
| Integrated Sensor Suite (Iss) | |
| Operating Temperature | -40 to +150F (-40 to +65C) |
| Non-Operating (Storage) Temperature | -40 to +158F (-40 to +70C) |
| Current Draw | 0.20 mA (average), 30 mA (peak) at 3.3 VDC |
| Solar Power Panel | 0.5 Watts |
| Battery | CR-123 3-Volt Lithium cell |
| Battery Life (3-Volt Lithium Cell) | 8 months without sunlight - greater than 2 years depending on solar charging |
| Wind Speed Sensor | Wind cups with magnetic detection |
| Wind Direction Sensor | Wind vane with magnetic encoder |
| Rain Collector Type | Tipping spoon, 0.01" per tip (0.2 mm with metric rain cartridge, Part No. 7345.319), 18.0 in (116 cm) collection area |
| Temperature Sensor Type | PN Junction Silicon Diode |
| Relative Humidity Sensor Type | Film capacitor element |
| Housing Material | UV-resistant ABS & ASA plastic |
| Iss Dimensions | 12.95" x 5.75" x 13.40" (329 mm x 146 mm x 340 mm) |
| Package Weight | 5.44 lbs (2.47 kg) |
| Weatherlink Console | |
| Console Operating Temperature | +32 to +122F (0 to +50C) |
| Non-Operating (Storage) Temperature | -4 to +140F (-20 to +60C) |
| Current Draw | 1.3 A max 500 mA average (depending on battery charging state and Console brightness) |
| Ac Power Adapter | 5 VDC, 2000 mA |
| Power Adapter Connector | USB-C |
| Battery Backup | Lithium Polymer |
| Backup Battery Life (No Ac Power) | About 14 hours depending Energy Saver Mode settings |
| Housing Material | ABS plastic |
| Console Display Type | In-Plane Switching LCD with LED backlight |
| Console Dimensions | |
| Console (L X H X D) | 8.25" x 6" x 0.75" (210 mm x 152 mm x 19 mm) |
| Display (L X H) | 6.75" x 4.25" (171 mm x 107 mm) |
| Weight | 1.1 lbs. (491 g) |
| Temperature | |
| Inside Temperature (Sensor Located In Console) | |
| Resolution And Units | 0.1 or 1F or C (user-selectable) |
| Range | +32 to +122F (0 to +50C) |
| Sensor Accuracy | +/- 0.4F (+/- 0.2C) |
| Update Interval | 1 minute |
| Calibration Available | User-adjustable offset (+/- 20.0F/11.0C) available |
| Alarms | High and Low Thresholds from Current Reading |
| Outside Temperature (Sensor Located In Iss) | |
| Resolution And Units | 0.1 or 1F or C (user-selectable) |
| Range | -40 to +150F (-40 to +65C) |
| Sensor Accuracy | +/- 0.5F (+/- 0.3C) |
| Radiation Induced Error (Passive Shield) | +4F (2C) at solar noon (insolation 1040 W/m2, avg. wind speed 2 mph (1 ms)) (reference: RM Young Model 43408 Fan-Aspirated |
| Update Interval | 10 to 12 seconds |
| Calibration Available | User-adjustable offset (+/- 20.0F/11.0C) available |
| Alarms | High and Low Thresholds from Current Reading |
| Free Shipping | No |
|---|
