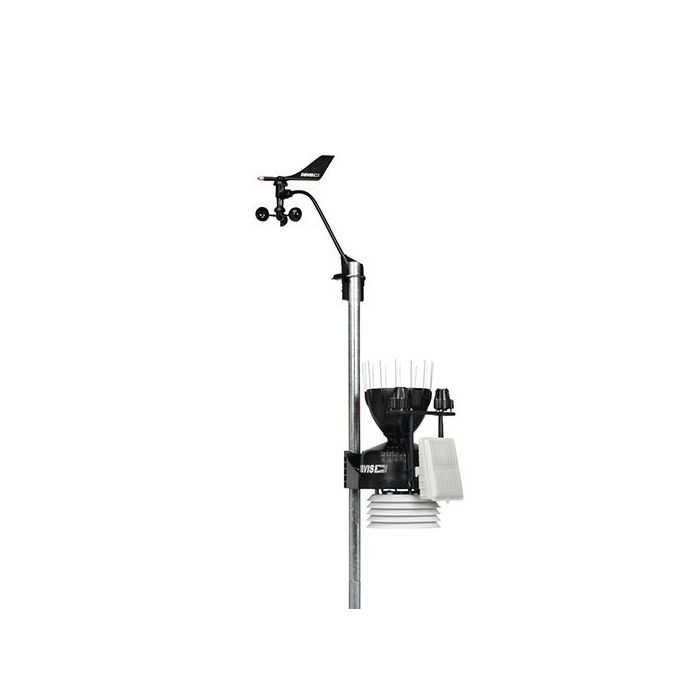

Davis Wireless Vantage Pro 2 Weather Monitor With Integrated Sensor Suite

R22,099.00
SKU
6322OV

Wireless Weather Monitor ONLY Solar-Powered Transmitter with Battery Backup to Keep your Data Flowing Rugged and Versatile

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

PLEASE NOTE: Only Sensors and monitor included, Weather Station sold separately.

Manufacturer's Website





Description

The Davis Wireless Vantage Pro 2 With Integrated Sensor Suite (ISS), versatile and rugged for serious weather watching. Customizable features offer flexible options and accuracy with robust performance. Rain, wind, temperature and humidity sensors in a rugged sensor suite with optional UV and solar.

Ensure accurate temperature data. Choose from three options to reduce solar radiation-induced temperature errors:
Use the included standard passive radiation shield to get excellent temperature data. Retrofit your station with the optional Daytime Fan-Aspirated Radiation Shield for even better temperature data. Get the benefits of fan aspiration at less cost than the 24-hour Fan-Aspirated Radiation Shield, but nearly 75% as effective in reducing the effect of daytime radiation. only runs during daylight hours. Get the 24-Hour Fan‐aspirated Vantage Pro2 for the ultimate temperature accuracy. It combines passive shielding with a solar‐powered fan that draws outside air in over the temperature and humidity sensors

Exceptionally accurate, weather-resistant rain collector, bird spikes and a helpful debris screen aid in fending off potential problems while grip grooves are handy for easy maintenance. The built-in bubble level offers more accurate installation for precise rain data. The aluminium-plated tipping bucket is self-emptying, corrosion-resistant and laser-calibrated for exceptional accuracy. Vantage Pro2 offers 12-hour advance forecast icons as well as 24- to 48-hour advance forecast ticker-tape.

View and store your weather data on your computer or online when you add one of the optional WeatherLink data loggers and software, you’ll be able to run additional analyses. With WeatherLinkIP, your data is automatically uploaded to your page on WeatherLink.com, where you can store, view and share it.

The wireless Vantage Pro2 uses a solar-powered transmitter with battery backup to keep your data flowing. The frequency-hopping spread spectrum Vantage Pro2 radio transmits and receives data up to 1,000 ft. (300 m) line-of-sight. The cabled version transmits data via the cable. For dependable data transmission.

Davis Vantage Pro2 featured and tested to weather any storm. A customizable station with a wide range of options and sensors to help professionals and hobbyists measure, monitor, and manage weather data. Our stations are engineered to withstand scorching sun, corrosion, 200 mph (321 kph) winds, temperature extremes, and more. We take great pride in designing products that provide the highest level of accuracy, reliability and ruggedness. the



Rugged and Flexible, Vantage Pro2 Offers Reliable Weather Data Under the Most Demanding Circumstances:
– Inside Temperature and Humidity
– Outside Temperature and Humidity
– Barometric Pressure
– Dew Point
– Rainfall
– Detachable Wind Speed and Direction sensors
– Optional UV and Solar radiation sensors
– Optional additional temperature and humidity sensors



Vantage Pro2 Sensor Suite
The Integrated Sensor Suite combines our rain collector, temperature and humidity sensors, anemometer, UV, and solar radiation sensors into one package. You can customize your Vantage Pro2 Plus to suit your needs and microclimate.



Requires:

There are several options to view data collected by this sensor suite:

  • Add a Vantage Connect to send the data via cellular connection to WeatherLink.com to view the data online or on your smartphone and optionally download it to your PC.
  • Add a Weather Envoy and WeatherLinkIP to send data to WeatherLink.com through your internet connection for online viewing and optional download to your PC.
  • Add an Envoy8X and WeatherLink for Windows (serial or USB) to view data on your PC.
  • Add a Vantage Pro2 or Vantage Vue console to view data without downloading it to a computer or viewing it online. (If you are considering this option, also consider the Vantage Pro2 weather station, 6152, which includes a console.)



PLEASE NOTE: Only Sensors and monitor included, Weather Station sold separately.



Features

  • Accurate & reliable weather data updates every 2.5 seconds.
  • Wireless Systems -Superb wireless transmission from station to console up to 1,000 ft. (300 m).
  • Customizable Options - offer flexible options and accuracy with robust performance. Customize by adding more sensors, stations, and accessories to meet your need.
  • Rain, wind, temperature and humidity sensors in a rugged sensor suite with optional UV and solar
  • Integrated Sensor Suite for the Vantage Pro2 Console and Vantage Pro2 (does not come with console)

Includes

  • Solar-powered Integrated Sensor Suite:
    • Wireless sensor suite
    • Detachable anemometer with 40 ft. (12 m) cable.
    • Solar panel
  • Mounting hardware



Specifications

Vantage Pro2 with Standard Rad Shield  14.0" x 9.4" x 14.5" (356 mm x 239 mm x 368 mm)
Vantage Pro2 with Fan-Aspirated Rad Shield 528 mm x 239 mm x 406 mm
Vantage Pro2 Plus with Standard Rad Shield  363 mm x 246 mm x 368 mm
Vantage Pro2 Plus with Fan-Aspirated Rad Shield 536 mm x 246 mm x 406 mm
Integrated Sensor Suite (ISS)
Operating Temperature  -40° to +150°F (-40° to +65°C)
Non-operating Temperature -40° to +158°F (-40° to +70°C)
Current Draw (ISS SIM only) 0.14 mA (average), 30 mA (peak) at 4 to 6 VDC
Solar Power Panel 0.5 Watts (ISS SIM), plus 0.75 Watts (Fan-Aspirated)
Battery (ISS SIM /Fan-Aspirated) CR-123 3-Volt Lithium cell / 2 - 1.2 Volt NiMH C-cells
Battery Life (3-Volt Lithium cell) 8 months without sunlight - greater than 2 years depending on solar charging
Battery Life (NiMH C-cells, Fan-Aspirated) Up to 2 years
Fan Aspiration Rate (Fan-Aspirated only)
Intake Flow Rate, full sun 190 feet/min. (0.9 m/s)
Intake Flow Rate, battery only  80 feet/min. (0.4 m/s)
Sensor Chamber Flow Rate, full sun  500 feet/min. (2.5 m/s)
Sensor Chamber Flow Rate, battery only 180 feet/min. (0.9 m/s)
Connectors, Sensor  Modular RJ-11
Cable Type 4-conductor, 26 AWG
Cable Length, Anemometer 40 feet (12 m) (included) 240 feet (73 m) (maximum recommended) 34 m/s).
Wind Speed Sensor Solid-state magnetic sensor
Wind Direction Sensor Wind vane with potentiometer
Rain Collector Type Tipping bucket, 0.01" per tip (0.2 mm with metric rain adapter), 33.2 in (214cm) collection area
Temperature Sensor Type PN Junction Silicon Diode
Relative Humidity Sensor Type Film capacitor element
Housing Material  UV-resistant ABS, ASA plastic (SPARS only)
Console Operating Temperature   +32° to +140°F (0° to +60°C)
Non-Operating (Storage) Temperature +14° to +158°F (-10° to +70°C)
Current Draw 0.9 mA average, 30 mA peak, (add 120 mA for display lamps, add 0.125 mA for each optional wireless transmitter received by the console) at 4 - 6 VDC
AC Power Adapter 5 VDC, 300 mA, regulated
Batteries 3 C-cells
Battery Life up to 9 months
Connectors Modular RJ-11
Housing Material  UV-resistant ABS plastic
Console Display Type   LCD Transflective
Display Backlight   LEDs
Console with antenna down (L x H x D):  270 mm x 156 mm x 41 mm
Console with antenna extended up (L x H x D):  270 mm x 245 mm x 41 mm
Display (L x H):  151 mm x 86 mm
Weight (with batteries) .85 kg
