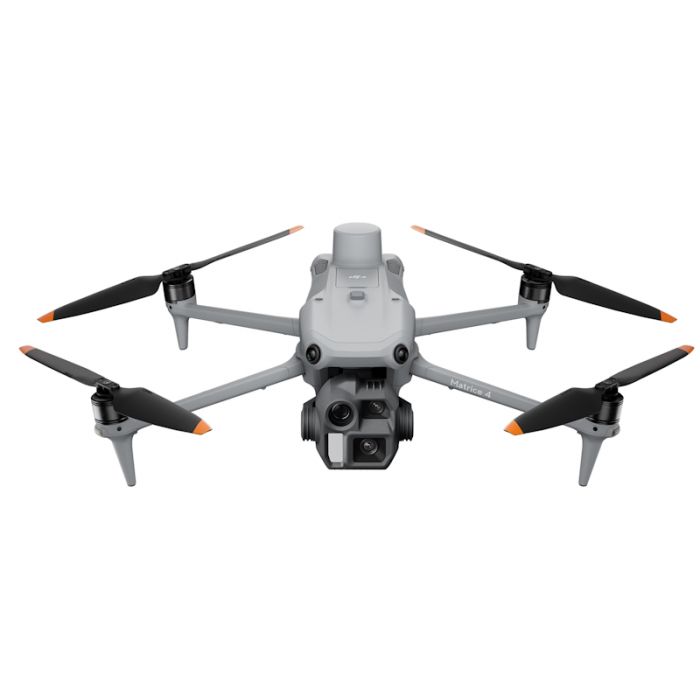

DJI Matrice 4 Enterprise Series Multi-Sensor Compact Drone
R0.00
SKU
M4SE-RT
Price displayed is NOT, the item price, please contact for a Quote per Order.
Wide-Angle Camera
112X Clear vision
High-Efficiency Precision Mapping
48MP Effective Pixels
1800m Laser Range Finder
Manufacturer's Website
Description
Introducing the DJI Matrice 4 Enterprise Series Multi-Sensor Compact Drone. A new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded. The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.
The Matrice 4 series cameras have larger apertures, new Night Scene Mode and Low-Light Fisheye Omnidirectional Sensing, the Matrice 4T additionally features new hardware for NIR illumination, supports infrared super-resolution for SAR. The medium tele camera identifies screws from 10 meters and reads instrument data at substations, while the tele camera captures details from signs up to 250 meters away with improved clarity.
Supports 5-Directional Oblique Capture, 3-Directional Ortho Capture, and Smart 3D Capture. The Matrice 4E also supports 0.5-Second interval shooting, and combine with DJI Pilot 2 to automatically generate mapping reports. Features GNSS and Vision Integrated Positioning and Navigation System. O4 Enterprise video transmission range over 20 km and can be equipped with DJI Cellular Dongle 2
Features
- Wide-Angle Camera
- 112X Clear vision
- High-Efficiency Precision Mapping
- 48MP Effective Pixels
- 1800m Laser Range Finder
- Observation Range Recording
- AI Power for Smarter Operations
Specifications
| Aircraft | |
| Takeoff Weight (With Propellers) | 1219 g |
| Takeoff Weight (With Low-Noise Propellers) | 1229 g |
| Max Takeoff Weight | |
| Standard Propellers | 1420 g |
| Dimensions | |
| Folded | 260.6x113.7x138.4 mm (LxWxH) |
| Unfolded | 307.0x387.5x149.5 mm (LxWxH) |
| Max Payload | 200 g |
| Propeller Size | 10.8 in |
| Diagonal Wheelbase | 438.8 mm |
| Max Ascent Speed | 10 m/s |
| Maximum Ascent Speed With Accessories | 6 m/s |
| Max Descent Speed | 8 m/s |
| Max Descent Speed With Accessories | 6 m/s |
| Max Horizontal Speed (At Sea Level, No Wind) | 21 m/s |
| 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways | |
| Max Altitude | 6000 m |
| Max Operating Altitude With Payload | 4000 m |
| Max Flight Time (Without Wind) | 49 min (standard propellers) |
| Max Hover Time (Without Wind) | 42 min (standard propellers) |
| Max Flight Distance (No Wind) | 35 km (standard propellers) |
| Max Wind Speed Resistance | 12 m/s |
| Max Pitch Angle | 35 |
| Operating Temperature | -10 to 40 (14F to 104F) |
| Gnss | GPS + Galileo + BeiDou + GLONASS |
| Hovering Accuracy Range (Windless Or Breezy) | +/-0.1 m (with Vision System), +/-0.5 m (with GNSS), +/-0.1 m (with RTK) |
| Rtk Gnss Accuracy | |
| Rtk Fix | 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) |
| Ports | |
| E-Port Interface X 1 | Supports official accessories and third-party PSDK devices (hot-swapping is not supported) |
| E-Port Lite Interface X 1 | supports USB connection to DJI tuning software and some third-party PSDK devices |
| Propeller Model | 1157F (standard propellers) |
| Beacon | Built into the aircraft |
| Camera | |
| Image Sensor | |
| DJI Matrice 4E | |
| Wide | 4/3-inch CMOS Effective Pixels: 20 MP |
| Medium Tele Camera | 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Telephoto | 1/1.5-inch CMOS, Effective Pixels: 48 MP |
| Lens | |
| DJI Matrice 4E | |
| FOV | 84 |
| Equivalent Focal Length | 24 mm |
| Aperture | f/2.8-f/11 |
| Focus | 1 m to nfinity |
| Medium Tele Camera | |
| Fov | 35 |
| Equivalent Focal Length | 70 mm |
| Aperture | f/2.8 |
| Focus | 3 m to infinity |
| Tele Camera | |
| Fov | 15 |
| Equivalent Focal Length | 168 mm |
| Aperture | f/2.8 |
| Focus | 3 m to Infinity |
| Iso Range | |
| Normal Mode | ISO 100 to ISO 25600 |
| Matrice 4E: | |
| Wide Camera | ISO 100 to ISO 204800 |
| Midum Tele Camera | ISO 100 to ISO 409600 |
| Tele Camera | ISO 100 to ISO 409600 |
| Shutter Speed | |
| DJI Matrice 4E | |
| Wide: | |
| Electronic Shutter | 2-1/8000 s |
| Mechanical Shutter | 2-1/2000 s |
| Medium Telephoto | 2-1/8000 s |
| Telephoto | 2-1/8000 s |
| Max Photo Size | |
| DJI Matrice 4E | |
| Wide | 5280 x 3956 |
| Medium Telephoto | 8064 x 6048 |
| Telephoto | 8192 x 6144 |
| Minimum Photo Interval | |
| DJI Matrice 4E | 0.5 s |
| Still Photography Modes | |
| DJI Matrice 4E: | |
| Single | 20 MP |
| Interval | 20 MP |
| JPEG | 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s |
| JPEG + RAW | 2/3/5/7/10/15/20/30/60 s |
| Smart Shooting | 20 MP |
| Panorama | 20 MP (raw image)100 MP (stitched image) |
| Medium Tele Camera: | |
| Single | 12 MP and 48 MP |
| Interval | 12 MP/48 MP |
| JPEG | 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s |
| Smart Shooting | 12 MP |
| Telephoto: | |
| Single | 12 MP and 48 MP |
| Interval | 12 MP/48 MP |
| JPEG | 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s |
| Smart Shooting | 12 MP |
| Video Codec And Resolution | |
| Video Coding Format | H.264/H.265 |
| Coding Strategy | CBR, VBR |
| Resolution: | |
| 4K | 3840 x 2160 at 30fps |
| Fhd | 1920 x 1080 at 30fps |
| Max Video Bitrate | |
| H.264 | 60Mbps |
| H.265 | 40Mbps |
| Supported File System | exFAT |
| Photo Format | |
| DJI Matrice 4E: | |
| Wide | JPEG/DNG (RAW) |
| Medium Tele Camera | JPEG |
| Telephoto | JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Digital Zoom | |
| Telephoto | 16x (112x hybrid zoom) |
| Laser Module | |
| Laser Rangefinding | |
| Measurement Range | 1800 m (1 Hz) at 20% reflectivity target |
| Oblique Incidence Range (1:5 Oblique Distance) | 600 m (1 Hz) |
| Blind Zone | 1 m |
| Distance Measurement Accuracy: | |
| 1-3 M | System Error <0.3 m, Random Error <0.1 meters at 1 |
| Other Distances | +/- (0.2+0.0015D) (D represents the measurement distance in meters) |
| Gimbal | |
| Stabilization System | 3-axis (tilt, roll, pan) |
| Mechanical Range | |
| Gimbal Mechanical Limits: | |
| Tilt | -140 to 50 |
| Roll | -52 to 52 |
| Pan | -65 to 65 |
| Soft Limits: | |
| Tilt | -90 to 35 |
| Roll | -47 to 47 |
| Pan | -60 to 60 |
| Controllable Rotation Range | |
| Pan | +/- -90 to 35 |
| Pan | Not controllable |
| Max Control Speed (Tilt) | 100/s |
| Angular Vibration Range | +/-0.007 |
| Yaw Axis | Manual operation is uncontrollable |
| The MSDK interface program is controllable | |
| Ingress Protection Rating | No Standard Protection Level |
| Operating Temperature | |
| Standard | -10C to 40C (14F to 104F) |
| Sensing | |
| Sensing Type | Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft. |
| Forward | |
| Binocular Measurement Range | 0.4-22.5 m |
| Measurement Range | 0.4-200 m |
| Obstacle Avoidance Speed | Flight Speed -/<21 m/s |
| Fov | 90 (horizontal), 135 (vertical) |
| Backward | |
| Measurement Range | 0.4-22.5 m |
| Measurement Range | 0.4-200 m |
| Obstacle Avoidance Speed | Flight Speed -/<21 m/sField of View (FOV)-90 (horizontal), 135 (vertical) |
| Lateral | |
| Measurement Range | 0.5-32 m |
| Measurement Range | 0.5-200 m |
| Obstacle Avoidance Speed | Flight Speed -/<21 m/s |
| Fov | 90 (horizontal), 90 (vertical) |
| Downward | |
| Measurement Range | 0.3-18.8 m |
| Obstacle Avoidance Speed | Flight Speed -/<10 m/s |
| The FOV to the front and rear is 160 and 160 to the right and left. | |
| Operating Environment | |
| Forward, Backward, Left, Right, And Upward | Delicate texture on the surface, adequate light. |
| Downward | The ground has rich textures and sufficient lighting conditions, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). |
| Video Transmission | |
| Video Transmission System | O4 Enterprise |
| Live View Quality | Remote Controller: 1080p/30fps |
| Operating Frequency | 2.400-2.4835 GHz |
| 2.400-2.4835 GHz | |
| 5.725-5.850 GHz | |
| 5.150-5.250 GHz (CE) | |
| Transmitter Power (Eirp) | |
| 2.4 Ghz | -/<33 dBm (FCC), -/<20 dBm (CE/SRRC/MIC) |
| 5.8 Ghz | <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE) |
| 5.15-5.25 | < 23 dBm (FCC/CE) |
| Max Transmission Distance (Unobstructed, Free Of Interference) | 25 km (FCC) |
| 12 km (CE) | |
| 12 km (SRRC) | |
| 12 km (MIC) | |
| Max Transmission Distance (With Interference) | |
| Strong Interference | City Centers (approx. 1.5-5 km) |
| Medium Interference | Suburban Areas (approx. 5-15 km) |
| Micro Interference | Suburbs/Seasides (approx. 15-25 km) |
| Max Download Speed | 20 MB/s |
| Latency (Depending On Environmental Conditions And Mobile Device) | 130 ms |
| Antenna | 8 antennas, 2T4R |
| Others | Cellular Dongle Compartment |
| Memory Card | |
| Supported Sd Cards | U3/Class10/V30 or above is required, or use a memory card from the recommended list. |
| Recommended Microsd Cards | Lexar 1066x 64GB U3 A2 V30 microSDXC |
| Lexar 1066x 128GB U3 A2 V30 microSDXC | |
| Lexar 1066x 256GB U3 A2 V30 microSDXC | |
| Lexar 1066x 512GB U3 A2 V30 microSDXC | |
| Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC | |
| Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC | |
| Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC | |
| Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC | |
| Intelligent Flight Battery | |
| Capacity | 6741 mAh |
| Standard Voltage | 14.76 V |
| Max Charging Voltage | 17.0 V |
| Cell Type | Li-ion 4S |
| Energy | 99.5 Wh |
| Weight | 401 g |
| Recharging Temperature | 5C to 40C (41F to 104F) |
| Discharge Rate | 4C |
| Max Charging Power | 1.8C |
| Supports Low-Temperature Charging | Not supported |
| Cycle Count | 200 |
| Power Adapter (100W) | |
| Input | 100-240 V (AC), 50-60 Hz, 2.5 A |
| Output | Max. 100 W (total) |
| Rated Power | 100 W |
| Charging Hub | |
| Input | |
| Usb-C | 5-20 V, max 5 A |
| Output | |
| Battery Interface | 11.2 V to 17 V |
| Rated Power | 100 W |
| Recharging Type | 4 batteries charging in sequence |
| Support Standard Mode (100% SOC) and Standby Mode (90% SOC) | |
| Compatible Battery | DJI Matrice 4E/T Series Intelligent Flight Battery |
| Charging Temperature | 5 to 40 C (41F to 104F) |
| Dji Rc Plus 2 Enterprise | |
| Video Transmission System | O4 Enterprise |
| Max Transmission Distance (Unobstructed, Free Of Interference) | 25 km (FCC) |
| 12 km (CE) | |
| 12 km (SRRC) | |
| 12 km (MIC) | |
| Operating Band Of Image Transmission | 2.4000-2.4835 GHz |
| 5.725 - 5.850 GHz | |
| 5.1GHz (receive only) | |
| Antenna | 2T4R, built-in multi-beam high-gain antenna |
| Video Transmission Transmitter Power (Eirp) | |
| 2.4 Ghz | 33 dBm (FCC), 20 dBm (CE/SRRC/MIC) |
| 5.1 Ghz | <23 dBm (CE) |
| 5.8 Ghz | <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) |
| 4G Transmission | DJI Cellular Dongle 2 |
| Wi-Fi Protocol | Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax |
| Support 2 x 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 x 2 + 2 x 2 11ax DBS) | |
| Wi-Fi Operating Band | 2.4000-2.4835 GHz |
| 5.150-5.250 GHz | |
| 5.725-5.850 GHz | |
| Wi-Fi Transmitter Power (Eirp) | |
| 2.4 Ghz | 26 dBm (FCC), 20 dBm (CE/SRRC/ MIC) |
| 5.1 Ghz | <23 dBm (FCC) |
| 5.8 Ghz | 23 dBm (FCC/SRRC), 14 dBm (CE) |
| Bluetooth Protocol | Bluetooth 5.2 |
| Bluetooth Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power (Eirp) | <10 dBm |
| Screen Resolution | 1920 x 1200 |
| Screen Size | 7.02 inches |
| Screen Frame Rate | 60 fps |
| Brightness | 1400 nits |
| Touchscreen Control | 10 Points Multi-touch |
| Built-In Battery | 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh at 7.2 V) 46.8 Wh |
| External Battery | Optional, WB37 (4920 mAh at 7.6 V) 37 Wh |
| Recharging Type | Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger. |
| Storage Capacity | ROM 128 G + expandable storage via microSD card |
| Charging Time | 2 hrs for internal battery or internal and external battery |
| Internal Battery Runtime | 3.8 hrs |
| External Battery Runtime | 3.2 hrs |
| Output Port | HDMI 1.4 |
| Indicators | Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness. |
| Speaker | Supports buzzer |
| Audio | Array MIC |
| Operating Temperature | -20 to 50 C (D228 (-4F to 122F) |
| Storage Temperature | |
| Within One Month | -30 to 45 C (-22F to 113F) |
| One To Three Months | -30 to 35 C (-22F to 95F) |
| Three Months To One Year | -30 to 30 C (-22F to 86F) |
| Recharging Temperature | 5 to 40 C (41F to 104F) |
| Supported Aircraft Models | Support for Matrice 4T/4E |
| Gnss | GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh. |
| Dimensions | 268x163x94.5 mm (LxWxH) |
| Weight | 1.15 kg (without external battery) |
| Model | TKPL 2 |
| System Version | Android 11 |
| External Interfaces | HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface. |
| Accessory | Optional strap/waist support |
| Al1 Spotlight | |
| Weight | 99 g (including bracket) |
| Approx. 91 g (excluding bracket) | |
| Dimensions | 95x164x30 mm (LxWxH,including bracket) |
| 79x164x28 mm (LxWxH, without bracket) | |
| Max. Power | 32 W |
| Illuminance | 4.3 +/- 0.2 lux at 100 meters, 17 +/- 0.2 lux at 50 meters |
| Effective Illumination Angle | 23 (10% relative illumination) |
| Effective Illumination Area | 1,300 square meters at 100 meters (10% relative illumination, Normal Mode) |
| 2,200 square meters at 100 meters (10% central illuminance, Wide fov Mode) | |
| Operating Mode | Supports always-on and strobe modes. |
| Gimbal Structural Design Range | |
| Tilt | -140 to 50 |
| Controllable Range: | |
| Tilt | -90 to 35 |
| Max Control Speed (Tilt) | 120/s |
| Gimbal Alignment Accuracy | +/-0.1 |
| Operating Temperature | -20C to 50C (-4F to 122F) |
| Mounting | Quick-release hand-tightened screws |
| As1 Speaker | |
| Weight | 92.5 g (including bracket) |
| Approx. 90 g (excluding bracket) | |
| Dimensions | 73x70x52 mm (LxWxH,including bracket) |
| 73x70x47 mm (LxWxH, without bracket) | |
| Max. Power | 15 W |
| Max. Volume | At 1 meter, it can reach 114 decibels (114dB at 1m) |
| Effective Broadcast Distance | 300 m |
| Broadcast Mode | Real-time broadcasting (supports echo suppression), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech |
| Operating Temperature | -20C to 50C (-4F to 122F) |
| Mounting | Quick-release hand-tightened screws |
Package Contents
- 1x DJI Matrice 4E
- 1x DJI Matrice 4 Series Battery
- 1x DJI RC Plus 2 Enterprise
- 1x DJI 100W USB-C Power Adapter
- 1x DJI Matrice 4 Series Charging Hub
- 1x microSD Card
- 1x DJI Matrice 4E Gimbal Protector
- 1x DJI Cellular Dongle 2 Pry Bar
- 1x DJI Matrice 4 Series Propellers
- 3x 100W Power Adaptor AC Cable
- 1x USB-C to USB-C Data Cable
- 1x USB-A to USB-C Data Cable
- 1x DJI Matrice 4 Series Storage Case
- 1x DJI Matrice 4 Series Storage Case Shoulder Strap
| Free Shipping | No |
|---|
Write Your Own Review
Customer Questions
