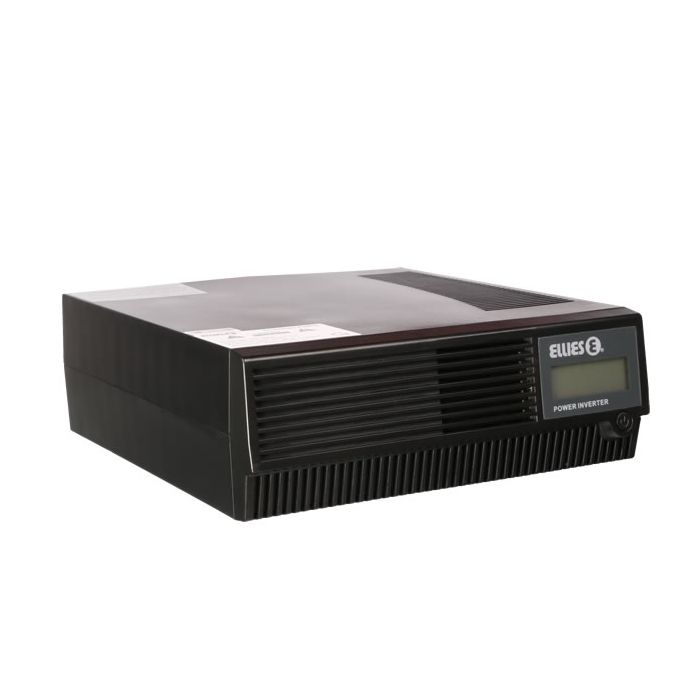

Ellies Modified Sine Wave Inverter Charger - 1200VA
R2,619.00
SKU
FBI1200W
*Currently sold out and no ETA available from the supplier* Automatic Mains-to-battery Transfer Selectable Mains Transfer Voltage Range Multi-function LCD Screen & Buzzer Alarm Highly Efficient DC-to-AC Conversion, Minimizing Energy Loss
Description
The Ellies Modified Sine Wave Inverter Charger - 1200VA is an inverter ideal for backup applications and compatible with various battery types. This system provides continuous output power and features a variety of protection methods in place to protect and restore the system in case of power, temperature or circuit issues. With a multi-function LCD screen and buzzer alarm and a DC-to-AC conversion to minimize energy loss, this system boasts high functionality, efficiency and reliability.
Features
- Automatic Mains-to-battery Transfer
- Selectable Mains Transfer Voltage Range
- 10Amp or 20Amp Selectable Battery Charging Current
- Provides Overload Protection
- Auto Restart on Mains Return
- Multi-function LCD Screen & Buzzer Alarm
- Highly Efficient DC-to-AC Conversion, Minimizing Energy Loss
- Intelligent 2-stage Battery Charger Control for Efficient Charging & Preventing Battery Overcharge
- Ideal for Backup Applications
Specifications
| Grid Power | 230V AC |
| Battery - Nominal Voltage | 12V DC |
| Output Power | 230V AC |
| Continuous Output Power | 1200VA/ 720W |
| Transfer Time | 10 to 20ms |
| AC Input - Nominal Voltage | 220 / 230 / 240VAC |
| AC Input - Input Voltage Range | 90-280VAC |
| AC Input - Nominal Frequency | 50 / 60Hz (Auto Detection) |
| Input Voltage Range Selector | Narrow - 170-280VAC |
| Input Voltage Range Selector | Wide - 90-280VAC |
| Inverter Mode Output - Voltage | 230VAC + 10 /-18% |
| Inverter Mode Output - Frequency | 50 / 60 Hz 0.5Hz |
| Inverter Mode Output - Waveform | Modified SIne Wave |
| Inverter Mode Output - Efficiency (AC to DC) | >95% |
| Inverter Mode Output - Efficiency (DC-AC) | >80% |
| Inverter Mode Output - No Load Input Current | Approx 2A DC |
| Dimensions | 335mm x 287mm x 130mm |
| Weight | 2.6kg |
| Free Shipping | No |
|---|
