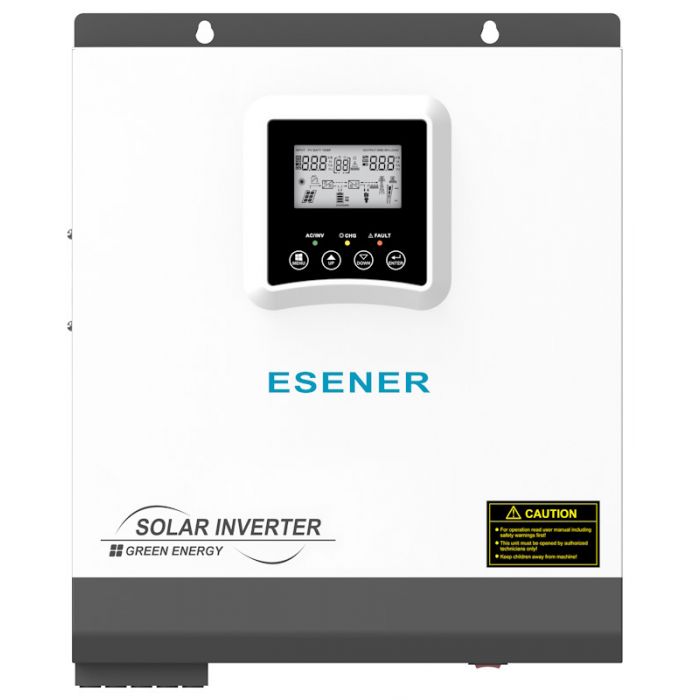

Esener Es-Vpm-3024 Pure Sine Wave Solar Inverter - 3Kw, 24V, 145Vdc
R5,039.00
SKU
EINVERT24V3KW
Pure sine wave output
Bult in MPPT 60a solar charge controller
Support USB, rs485 monitoring function
Shipping restrictions apply.
Description
Introducing the Esener Es-Vpm-3024 Pure Sine Wave Solar Inverter - 3Kw, 24V, 145Vdc. The Esener Es-Vpm-3024 Pure Sine Wave Solar Inverter is a powerful and versatile solution for solar energy systems, delivering a rated power of 3000VA or 3000W with a surge power capability of 6000VA. Its pure sine wave output ensures a stable and clean power supply, making it suitable for a wide range of applications.
This inverter is designed for a default battery system voltage of 24Vdc, providing efficient and reliable power conversion. The built-in Maximum PowerPoint Tracking (MPPT) solar charge controller with a 60A capacity optimizes the charging process, making the most of available solar energy. With a maximum PV array open circuit voltage of 145Vdc and an MPPT voltage range of 30-120Vdc, the inverter is adaptable to various solar conditions.
One of the notable features is its compatibility with generators, offering flexibility in power sources. The inverter ensures reliable performance with overload, short circuit, and deep discharge protection, safeguarding connected devices and the system itself.
User-friendly features include a smart LCD interface that allows convenient settings for working modes, charge current, charge voltage, and more. The inverter also supports USB and RS485 monitoring functions, providing insights into system performance. For advanced monitoring and control, users can opt for the optional Wi-Fi remote monitoring feature.
The Esener Es-Vpm-3024 is built with efficiency in mind, offering an impressive peak efficiency ranging from 90% to 93%. Its ability to combine solar, utility, and battery power sources provides a continuous and uninterrupted power supply. The inverter operates in a wide range of environmental conditions, with an operating temperature range from 0C to 50C and a storage temperature range from -15C to 60C.
Features
- Pure sine wave output
- Bult in MPPT 60a solar charge controller
- Cold start function
- Support USB, rs485 monitoring function
- Wi-Fi remote monitoring (optional)
- Compatible to generator
- Overload, short circuit and deep discharge protection
- Smart LCD setting (working modes, charge current, charge voltage, etc).
- Combining solar system, AC utility, and battery power source to supply continuous power
Specifications
| Default Battery System Voltage | 24Vdc |
| Inverter Output | |
| Rated Power | 3000Va / 3000W |
| Surge Power | 6000Va |
| Waveform | Pure Sine Wave |
| Ac Voltage Regulation (Batt.Mode) | 220Vac240Vac(Setting) |
| Inverter Efficiency (Peak) | 90% to 93% |
| Transfer Time | 10Ms (Ups / Vde4105) / 20Ms (Apl) |
| Ac Input | |
| Voltage | 230Vac |
| Selectable Voltage Range | 170280Vac (Ups) / 90280Vac (Apl) / 184253Vac (Vde) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| Battery | |
| Normal Voltage | 24Vdc |
| Floating Charge Voltage | 27.4Vdc |
| Overcharge Protection | 30Vdc |
| Solar Charger & Ac Charger | |
| Maximum Pv Array Open Circuit Voltage | 145Vdc |
| Pv Array Mppt Voltage Range | 30120Vdc |
| Standby Power Consumption | 2W |
| Maximum Pv Array Power | 1500W |
| Maximum Solar Charge Current | 60A |
| Maximum Efficiency | 98% |
| Maximum Ac Charge Current | 20A Or 30A |
| Maximum Charge Current | 80A |
| Mechanical Specifications | |
| Machine Dimensions (Whd)(Mm) | 272x355x100 |
| Package Dimensions (Whd)(Mm) | 425x390x215 |
| Net Weight (Kg) | 7.4 |
| Gross Weight (Kg) | 9.5 |
| Other | |
| Humidity | 5% To 95% Relativ Humidity (Non-Condensing) |
| Operating Temperature | 0C to 50C |
| Storage Temperature | -15C -60C |
| Free Shipping | No |
|---|
