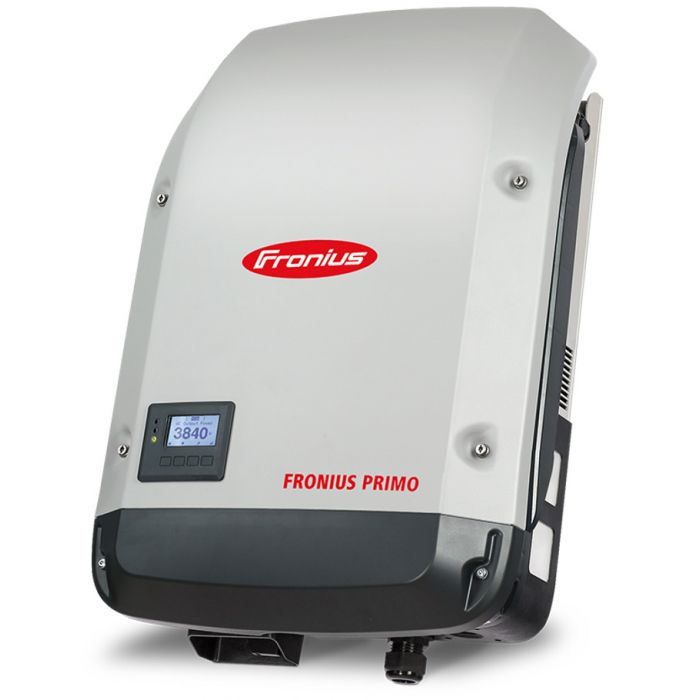

Fronius Primo 3.0-1 Single Phase Inverter With SPD - 3kW
R28,679.00
SKU
3000200270
Manufacturer's Website
Description
The Fronius Primo 3.0-1 Single Phase Inverter With SPD - 3kW is the ideal inverter for private households. The innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance easier than ever before. The communication package included as standard, with WLAN, energy management, many interfaces and much more besides, makes the Fronius Primo a communicative inverter for owner-occupiers.
Features
- SnapINverter Technology
- Integrated data communication
- Smart Grid Ready
- Dynamic Peak Manager
- Zero feed-in
- DC-circuit breaker
- IP 65
- Automatic HF transformer switchover
- Surge protection device
Specifications
| Number Of MPP Trackers | 2 |
| Max. Input Current (Idc Max) | 12 / 12 A |
| Max. Short Circuit Current, Module Array | 18 / 18 A |
| DC Input Voltage Range (Udc Min - Udc Max) | 80 - 1000 V |
| Feed-In Start Voltage (Udc Start) | 80 V |
| Nominal Input Voltage (Udc,r) | 710 V |
| MPP Voltage Range (Umpp Min - Umpp Max) | 200 - 800 V |
| Usable MPP Voltage Range | 80 - 800 V |
| Number Of DC Connections | 2 + 2 |
| Max. PV Generator Power (Pdc max) | 4,5 kWpeak |
| AC Nominal Output (Pac,r) | 3000 W |
| Max. Output Power (Pac Max) | 3000 VA |
| AC Output Current (Iac Nom) | 13 A |
| Grid Connection (Uac,r) | 1 - NPE 220/230 V |
| AC Voltage Range (Umin - Umax) | 180 - 270 V |
| Frequency (FR) | 50 / 60 Hz |
| Frequency Range (Fmin - Fmax) | 45 - 65 Hz |
| Total Harmonic Distortion | < 5 % |
| Power Factor (cos ac,r) | 0,85 - 1 ind,/cap, |
| Width | 431mm |
| Height | 645mm |
| Depth | 204mm |
| Weight | 21,5 kg |
| Degree Of Protection | IP 65 |
| Protection Class | 1 |
| Overvoltage Category (DC / AC) 1) | 2 / 3 |
| Night-Time Consumption | < 1 W |
| Inverter Design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient Temperature Range | -40 C - +55 C |
| Permitted Humidity | 0 - 100 % |
| Max. altitude2 | 4,000m |
| DC Connection Technology | 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm2 |
| AC Connection Technology | 3-pin AC screw terminals 2.5 - 16 mm2 |
| Certificates & Compliance With Standards | DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105 |
| Interference Emission Class | B |
| Max. Efficiency (PV - grid) | 98% |
| European Efficiency | 96,1% |
| Free Shipping | No |
|---|
