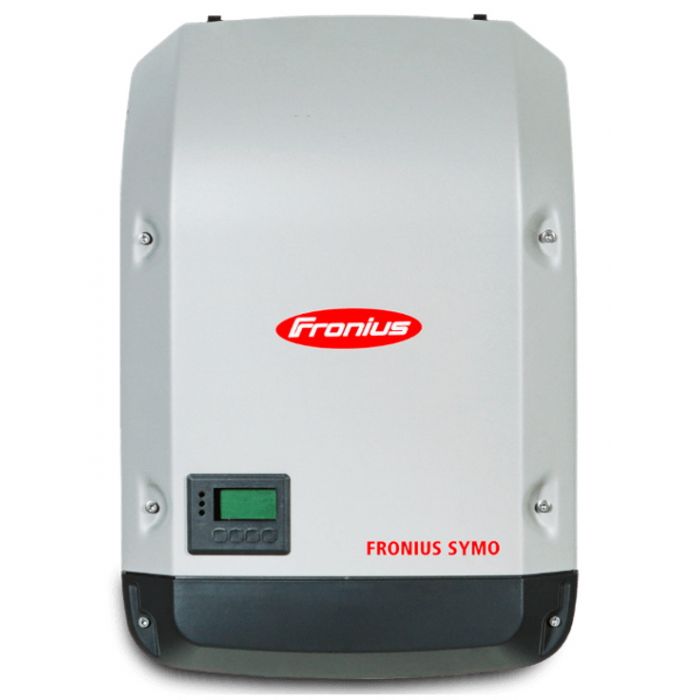

Fronius Symo 5.0-3-M 3 Phase Inverter - 5kW
R41,239.00
SKU
3000200147
Shipping restrictions apply.
Manufacturer's Website
Description
The Fronius Symo 5.0-3-M 3 Phase Inverter - 5kW is for systems of every size. The high system voltage, wide input voltage range and two MPP trackers ensure maximum flexibility in system design. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market.
The special feature in the design of Frontius devices is that the connection compartment is separate from the power stage set compartment. They are installed separately. The connection area and all its cabling is fitted to the wall first. The power stage set compartment is fitted afterwards. The innovative SnapINverter mounting system makes installation and servicing extremely user-friendly.
The inverter is simply placed in the wall bracket and then secured. It is not necessary to remove the entire inverter for servicing, just the power stage set compartment. All the cabling, settings and configurations remain in place. Simple, user-friendly system monitoring is very important to Fronius. With the Fronius Datamanager, Fronius are the first inverter manufacturer to offer a WLAN interface in the inverter itself. The inverter is connected to the internet without additional cabling and grants you the perfect overview of how the PV system is operating.
Features
- Unique Fronius PC board replacement process
- SnapINverter mounting system
- Integrated WLAN interface
- SuperFlex Design
- Dynamic Peak Manager
- Smart Grid Ready
- Snap-in inverter
- 2 MPPT
- Terminal connections
- IP65
- 3 Phase
- Data Manager 2.0
Specifications
| Number Of MPP Trackers | 2 |
| Max. Input Current (Idc Max) | 16,0 / 16,0 A |
| Max. Short Circuit Current, Module Array | 24,0 / 24,0 A |
| DC Input Voltage Range (Udc Min - Udc Max) | 150 - 1000 V |
| Feed-In Start Voltage (Udc Start) | 200 V |
| Nominal Input Voltage (Udc,r) | 595 V |
| MPP Voltage Range (Umpp Min - Umpp Max) | 163 - 800 V |
| Usable MPP Voltage Range | 150 - 800 V |
| Number Of DC Connections | 2 + 2 |
| Max. PV Generator Power (Pdc max) | 10 kWpeak |
| AC Nominal Output (Pac,r) | 5000 W |
| Max. Output Power (Pac Max) | 5000 VA |
| AC Output Current (Iac Nom) | 7,2 A |
| Grid Connection (Uac,r) | 3 - NPE 400/230, 3 - NPE 380/220 V |
| AC Voltage Range (Umin - Umax) | 150 - 280 V |
| Frequency (FR) | 50 / 60 Hz |
| Frequency Range (Fmin - Fmax) | 45 - 65 Hz |
| Total Harmonic Distortion | < 3 % |
| Power Factor (cos ac,r) | 0,85 - 1 ind,/cap, |
| Width | 431mm |
| Height | 645mm |
| Depth | 204mm |
| Weight | 19,9 kg |
| Degree Of Protection | IP 65 |
| Protection Class | 1 |
| Overvoltage Category (DC / AC) 1) | 2 / 3 |
| Night-Time Consumption | < 1 W |
| Inverter Design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient Temperature Range | -25 C - +60 C |
| Permitted Humidity | 0 - 100 % |
| Max. altitude2 | 2,000 m / 3,400 m |
| DC Connection Technology | 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm2 (16 mm2 without ferrules) |
| AC Connection Technology | 5-pin AC screw terminals 2.5 - 16 mm2 (16 mm2 without ferrules) |
| Certificates & Compliance With Standards | VE / NORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
| Interference Emission Class | B |
| Max. Efficiency (PV - grid) | 98 % |
| European Efficiency | 97,3 % |
| Free Shipping | No |
|---|
