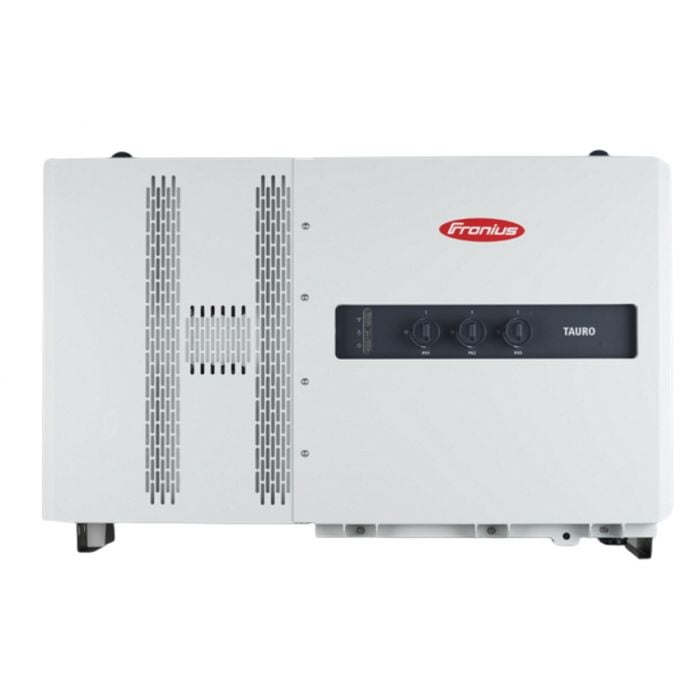

Fronius Tauro Eco 50-3-D Three Phase Inverter With SPD - 50kW
R191,449.00
SKU
3000200309
Shipping restrictions apply.
Manufacturer's Website
Description
The Fronius Tauro Eco 50-3-D Three Phase Inverter With SPD - 50kW promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design. The simplest installation on the market, it guarantees maximum safety. Overvoltage protection type 1 + 2 (AC + DC) is integrated as standard and ensures full protection of the device.
The innovative double wall construction and active cooling technology allow the Fronius Tauro to be placed in direct sunlight whilst still ensuring continuous yield. It protects components from high temperature, extends the inverters lifetime and performs best in hot climate. Whether centralised or decentralised, vertical or horizontal, the Fronius Tauro series can be easily adapted to customers' individual needs and circumstances.
Features
- WLAN / Ethernet LAN
- DC-circuit breaker
- IP 65
- SPD (Surge Protection Device) Type 1+2
- DC Connections 4/3/7
- 1x MPP tracker
- Power electronics protected by active cooling
- Double-walled housing ensures optimum temperature compensation
- Stable high performance even at ambient temperatures of up to 50 C
- Quick installation and efficient maintenance
- Flexible system design
- Tauro & Tauro ECO can be combined
Specifications
| Number Of MPP Trackers | 1 |
| Max. Input Current (Idc MaxInverter) | 87,5 A |
| DC Input Voltage Range (Udc Min - Udc Max) | 580 - 1000 V |
| Feed-In Start Voltage (Udc Start) | 650 V |
| MPP Voltage Range (Umpp Min - Umpp Max) | 580 - 930 V |
| Usable MPP Voltage Range | 80 - 800 V |
| Max. PV Generator Power (Pdc max) | 75 kWpeak |
| Max. Input Current PV1 (Idc Max, PV1) | 75 A |
| Max. Input Current PV2 (Idc Max, PV2) | 75 A |
| Max. Short-Circuit Current PV1 (Isc Max, PV1) | 125 A |
| Max. Short-Circuit Current PV2 (Isc Max, PV2) | 125 A |
| Max. Short-Circuit Current Inverter (Isc Max, Inverter) | 178 A |
| Max. Input Current String (Idc Max, String) | 14,5 A |
| Max. Short-Circuit Current String (Isc Max, String) | 20 A |
| Max. Power PV System PV1 (Pdc Max,PV1) | 60 kWpeak |
| Max. Power PV System PV2 (Pdc Max, PV2) | 60 kWpeak |
| Number Of DC Connections PV1 | 7 |
| Number Of DC Connections PV2 | 7 |
| Max. AC Fuse Size Rating | 355 A |
| AC Nominal Output (Pac,r) | 50 kW |
| Max. Output Power (Pac Max) | 50 kVA |
| AC Output Current (Iac Nom) | 75,8A at 220Vac, 72,5A at 230Vac |
| Grid Connection (Uac,r) | 3 - NPE 380/220, 3 - NPE 400/230 V |
| AC Voltage Range (Umin - Umax) | 180 - 270 V |
| Frequency (FR) | 50 / 60 Hz |
| Frequency Range (Fmin - Fmax) | 45 - 65 Hz |
| Total Harmonic Distortion | < 3% |
| Power Factor (cos ac,r)) | 0 - 1 ind,/cap, |
| Width | 1109mm |
| Height | 755mm |
| Depth | 346mm |
| Weight | 74kg |
| Weight Incl. Packaging | 92kg |
| Degree Of Protection | IP 65 |
| Protection Class | 1 |
| Overvoltage Category (DC / AC) 1) | 2 / 3 |
| Night-Time Consumption | 15 W |
| Installation | Indoor and outdoor4) |
| Ambient Temperature Range | -40 C - +65 C (optional AC-disconnect: from - 30 to + 65 C) |
| Permitted Humidity | 0 - 100 % |
| Max. Altitude2) | 4000 |
| Inverter Topology | Transformerless |
| Cooling | Active cooling technology and double wall system |
| Interference Emission Class | B |
| Max. Efficiency (PV - grid) | 98,5% |
| European Efficiency | 98,2/97,7/97,3 (580Vdc/800Vdc/930Vdc) |
| Free Shipping | No |
|---|
