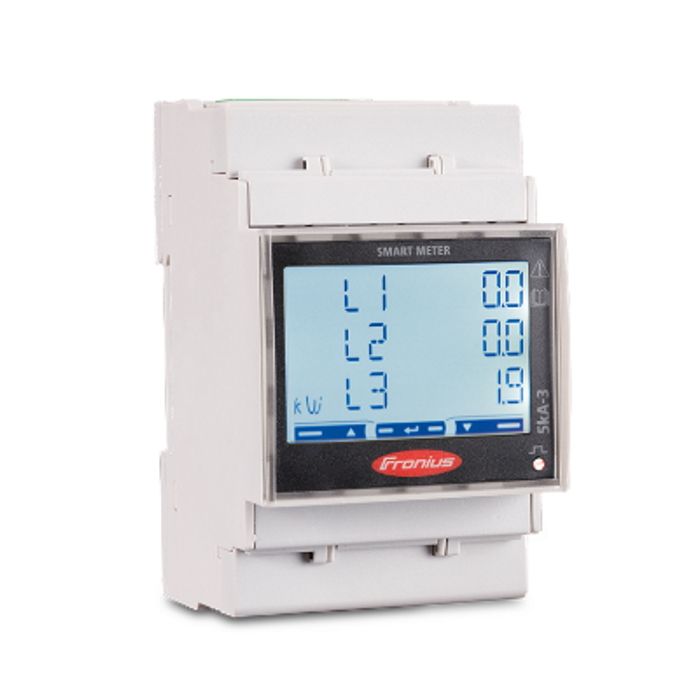

Fronius TS 5kA-3 Smart Meter - 5A
R5,609.00
SKU
3400200394
Manufacturer's Website
Description
The Fronius TS 5kA-3 Smart Meter - 5A is a bidirectional meter, which optimises self-consumption, records the load curve and controls the various energy flows. Thanks to highly accurate measurements and rapid communication via the Modbus RTU interface, dynamic feed-in control when feed-in limits are imposed is faster and more accurate than with the S0 meter.
Together with the Fronius Solar.web, the Smart Meter presents a clear overview of the power consumption. In combination with the Fronius storage solutions, the device ensures a perfect coordination of various energy flows, which optimises the entire energy management. The Fronius Smart Meter is ideally suited for use with the Fronius Symo GEN24 Plus, as well as all Fronius inverters with the Fronius Datamanager 2.0.
Features
- Fast and accurate dynamic feed-in control
- Clear overview of power consumption in Fronius Solar.web
- Energy management with Fronius storage solutions
- Identifying opportunities to optimise the PV system
- Monitoring and analysing heavy loads
Specifications
| Width | 53,8mm |
| Height | 91,5mm |
| Depth | 63mm |
| Weight | 0,24 kg |
| Nominal Voltage | 400-480V (L-L) / 230-277V (P-N) |
| Max. Current | 6A |
| Connection Cross Section, Current Path | 1-4mm2 |
| Connection Cross Section, Communication & Neutral Conductor | 0,05mm2 |
| Self-Consumption | 1 W |
| Starting Current | 10 mA |
| Accuracy class | 1 |
| Overload (Short-Term) | 30A@500ms |
| Operating Range | -25 bis +65 C |
