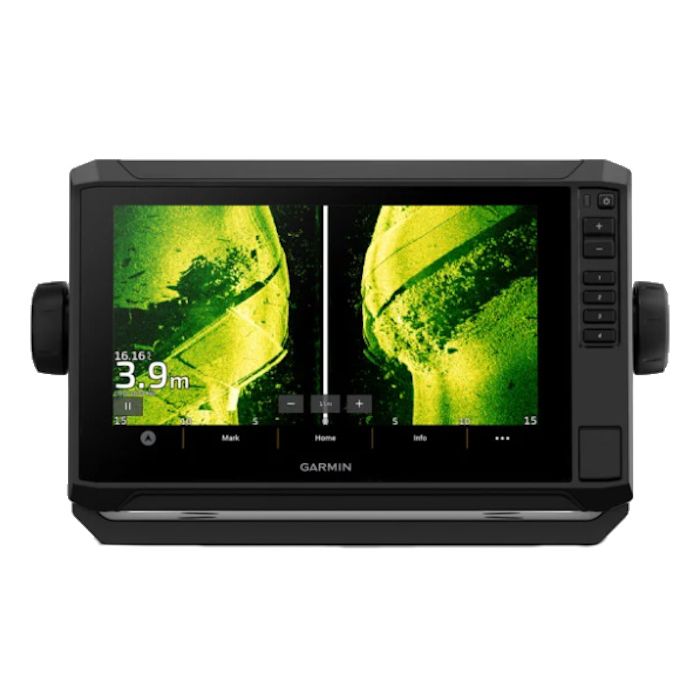

Garmin Echomap UHD2 Fishing Chartplotters - 9", Black, 92sv
R29,729.00
SKU
100268700
- Ultra High-Definition (UHD) sonar
- Preloaded BlueChart g3 coastal charts
- Wi-Fi connectivity
- GPS receiver
Manufacturer's Website
Description
The Garmin Echomap UHD2 Fishing Chartplotters - 9", Black, 92sv are cutting-edge marine navigation devices that combine advanced technology and exceptional performance. With a large and vibrant 9-inch display, these chartplotters provide a crystal-clear view of charts, maps, and other important information, making them an invaluable tool for navigating the waterways.
Featuring a high-resolution touchscreen display, the ECHOMAP UHD2 chartplotters deliver sharp and detailed visuals with impressive clarity. The spacious screen size ensures that you can easily view and interact with the various functions and features, providing an intuitive and seamless user experience.
One of the standout features of the ECHOMAP UHD2 chartplotters is their built-in Ultra High-Definition (UHD) sonar technology. This advanced sonar technology offers incredibly detailed and precise imaging of the underwater environment, enabling you to identify underwater structures, contours, and fish with remarkable clarity. Whether you're fishing, cruising, or exploring, the UHD sonar provides valuable insights to enhance your time on the water.
The chartplotters come preloaded with Garmin's BlueChart g3 coastal charts, providing comprehensive and up-to-date mapping coverage of coastal waters, including harbours, marinas, and other points of interest. With built-in Wi-Fi connectivity, you can easily access software updates, download additional charts, and share waypoints and routes with other compatible Garmin devices.
Equipped with a GPS receiver, the ECHOMAP UHD2 chartplotters ensure accurate positioning and navigation. You can create and save custom routes, mark waypoints, and track your speed and heading, allowing you to plan and execute your boating adventures with confidence. Moreover, these chartplotters support optional accessories such as radar, AIS, and autopilot, expanding their functionality to meet your specific boating requirements.
Features
- Large, high-resolution touchscreen display
- Ultra High-Definition (UHD) sonar
- Preloaded BlueChart g3 coastal charts
- Wi-Fi connectivity
- GPS receiver
- Rugged and water-resistant design
- User-friendly interface
- ActiveCaptain app compatibility
Specifications
| Dimension | 10.4" X 6.5" X 3.2" (26.4 X 16.6 X 8 cm) |
| Touchscreen | Yes |
| Input | Touchscreen With Keyed Assist |
| Display Size | 7.8" X 4.5", 9" (19.8 X 11.5 Cm, 22.9 Cm) |
| Display Resolution | 1024 X 600 Pixels |
| Display Type | Wsvga, Tn |
| Weight | 2.9 Lbs (1.3 Kg) |
| Water Rating | Ipx7 |
| Mounting Options | Bail Or Flush |
| Accepts Data Cards | 1 Microsd Card 32 Gb Maximum Size |
| Waypoints | 5 000 |
| Track Points | 50 000 |
| Tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Has Built-In Receiver | Yes |
| Receiver | 10 Hz |
| Nmea 2000 Compatible | Yes |
| GPS | Yes |
| Glonass | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Supports Waas | Yes |
| Supports Multi-band, Multi-constellation GPS | Yes |
| Built-in Auto Guidance+ | Yes (Downloadable Via Activecaptain App) |
| Garmin Navionics+ Inland & Coastal | Yes (See Additional) |
| Garmin Navionics+ | Yes |
| Garmin Navionics Vision+ | Yes |
| Topo | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Ais | Yes |
| Dsc | Yes |
| Supports Fusion-link Compatible Radios | Yes |
| Activecaptain Mobile Planning Compatible | Yes |
| Sailing Features | Yes |
| Power Input | 9 To 18 Vdc |
| Typical Current Draw At 12 Vdc | 1.72 A |
| Maximum Current Draw At 12 Vdc | 3.5 A |
| Maximum Power Usage At 10 Vdc | 20.7 W |
| Displays Sonar | Yes |
| Power Output | 500 W |
| Traditional Sonar (Dual Frequency/Beam) | Built-in (Single Channel Chirp, 50/77/83/200 Khz, L, M, H Chirp) |
| Clearv | Built-in 260/455/800/1000/1200 Khz |
| Sidev | Built-in 260/455/800/1000/1200 Khz |
| Panoptix Sonar | Yes |
| Livescope | Yes |
| Nmea 2000 Ports | Yes |
| Garmin Marine Network Ports | 1 |
| 12-pin Transducer Ports | 1 |
| Bluetooth Calling | Yes |
| Ant+ (Connectivity) | Yes |
| Garmin Wi-fi Network (Local Connection) | Yes |
| Free Shipping | No |
|---|
