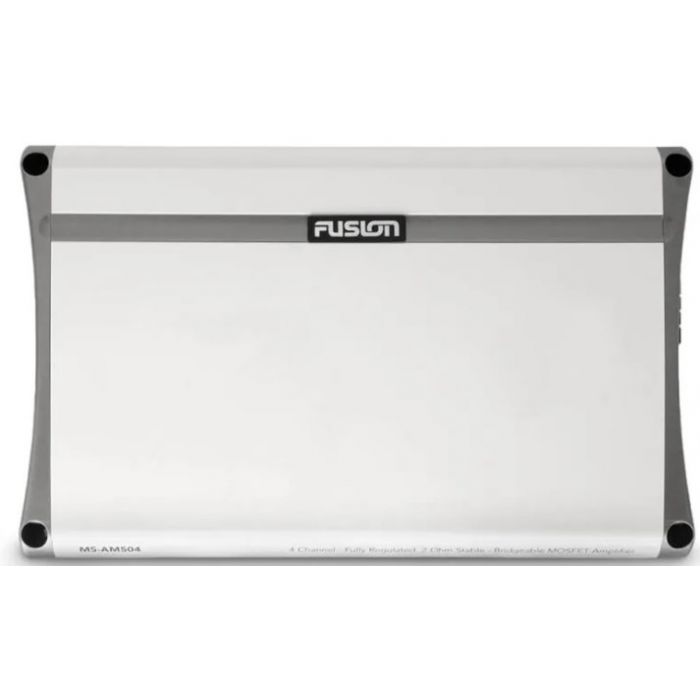

Garmin Fusion Am Series Marine Amplifiers - 500-Watt
R7,849.00
SKU
100150000
Conformal coated pcbs
Class-ab amplifier design
Up to two speakers per channel at 2 ohms
Shipping restrictions apply.
Manufacturer's Website
Description
Introducing the Garmin Fusion Am Series Marine Amplifiers - 500-Watt. The Garmin Fusion AM Series Marine Amplifiers, available in 2-channel and 4-channel configurations, represent a pinnacle in marine audio amplification technology, delivering powerful and reliable performance in marine environments. These amplifiers come in physical dimensions suited for marine installations, ensuring compatibility and efficiency in various setups.
With a Class-AB amplifier design, these amplifiers exhibit exceptional performance. The 2-channel variant offers a peak power of 400 watts, while the 4-channel variant boasts 500 watts, delivering total rated power outputs of 65 watts RMS x 2 @ 4 ohms and 65 watts RMS x 4 @ 4 ohms respectively, at less than 1% THD. Additionally, they provide substantial power outputs at 2 ohms and in bridged mode, catering to diverse speaker configurations.
Featuring a frequency response ranging from 5 Hz to 38 kHz (-3dB, dB @ 4 ohms rated power), these amplifiers ensure a wide spectrum of audio frequencies, providing rich and detailed sound reproduction. The user-selectable high-pass/low-pass full-range filters, with variable crossover frequencies ranging from 40 Hz to 600 Hz (HP) and 40 Hz to 160 Hz (LP), enable tailored sound shaping and customization.
Constructed with conformal-coated PCBs and equipped with a heat sink, these amplifiers are designed to withstand the demanding marine environment, offering durability and longevity. Their robust build and efficient heat dissipation mechanism ensure reliable performance even in challenging conditions.
Capable of accommodating up to two speakers per channel at 2 ohms, the Garmin Fusion AM Series Marine Amplifiers offer flexibility in speaker configurations. Whether in a 2-channel or 4-channel setup, these amplifiers deliver high-quality sound amplification, making them an ideal choice for marine enthusiasts seeking powerful and reliable audio amplification solutions for their marine audio systems.
Features
- Conformal coated pcbs
- Class-ab amplifier design
- Up to two speakers per channel at 2 ohms
- Heat sink
- 2-channel and 4-channel configurations
Specifications
| Physical Dimensions (Length X Width X Height) | 2 Channel: 11.65 x 9.02 x 2.09 (296 x 229 x 53 mm) |
| 4 Channel: 14.41 x 9.02 x 2.09 (366 x 229 x 53 mm) | |
| Amplifier Class | Class-AB |
| Peak Power (Watts) | 2 Channel: 400 W |
| 4 Channel: 500 W | |
| Total Rated Power Output - 4 Ohm (Watts) | 2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD |
| 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD | |
| Total Rated Power Output - 2 Ohm (Watts) | 2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD |
| 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD | |
| Total Rated Power Output - 4 Ohm Bridged (Watts) | 2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD | |
| Frequency Response | 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input Sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input Impedance | 5k Ohm nominal |
| High-Pass/Low-Pass Full Range Filter | Yes (user selectable) |
| Hp Variable Crossover Frequency | 40 Hz - 600 Hz |
| Lp Variable Crossover Frequency | 40 Hz - 160 Hz |
