Crystal-clear premium sound quality
Water-resistant connectors
Ip65 rating

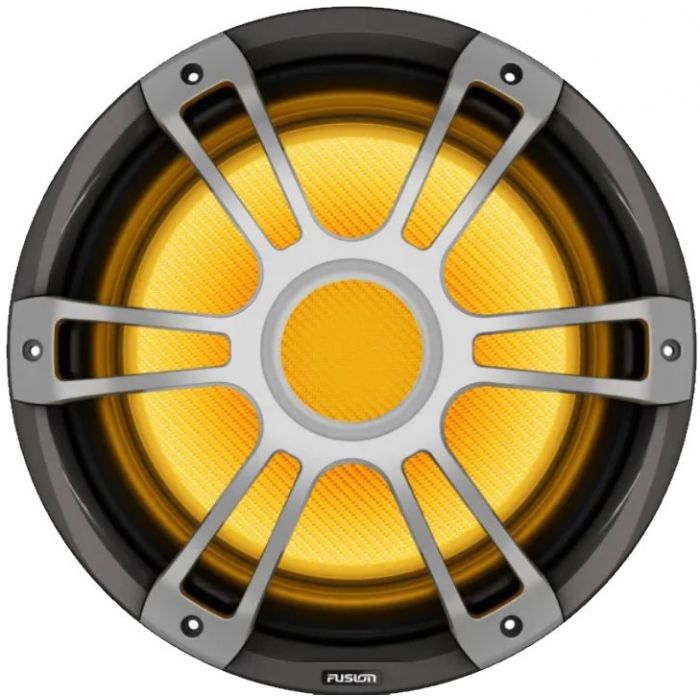

Introducing the Garmin Fusion Signature Series 3I Marine Subwoofers - 12" 1400-Watt, Grey. The Garmin Fusion Signature Series 3I Marine Subwoofers in the 12" variant offer an unparalleled audio experience for marine enthusiasts seeking premium sound quality on the water. These subwoofers are designed with a range of features and specifications that guarantee an exceptional audio performance tailored for marine environments.
Boasting a peak power of 1400 watts and an RMS power rating of 700 watts, these subwoofers deliver crystal-clear premium sound quality, ensuring an immersive audio experience while out on the water. With a sensitivity of 86 dB and a frequency response of 20 Hz to 2 kHz, these subwoofers reproduce audio with precision and clarity across a broad range of frequencies.
Crafted with polypropylene cone technology and a rubber surround, these subwoofers feature a magnetic structure specifically designed for each size variant, enhancing the overall sound reproduction. The incorporation of water-resistant connectors and an IP65 rating ensures durability and reliability in marine conditions, making them highly resistant to water and dust ingress.
The CRGBW LED lights incorporated in the sports-style models add a vibrant and visually striking illumination to your marine audio setup. Redesigned grilles, marinised connectors, and True-Marine philosophy underscore the commitment to durability and high-quality performance, ensuring longevity and resilience against the harsh marine environment.
With optimized enclosure recommendations for sealed and ported enclosures, these subwoofers offer flexibility in installation, catering to varying acoustic preferences. Their robust build, high-quality construction, and LED illumination make the Garmin Fusion Signature Series 3I Marine Subwoofers a stand-out choice for marine audio enthusiasts seeking top-notch audio performance, durability, and aesthetics while enjoying their time on the water.
General | |
Physical Dimensions (Diameter X Depth) | 12" sports subwoofer: 14.02" x 10" (356 x 254 mm) |
10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm) | |
10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm) | |
Weight | 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg) |
10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg) | |
10" sports subwoofer: 11.2 lbs (5.06 kg) | |
10" classic subwoofer: 11 lbs (4.98 kg) | |
Water And Dust Rating | IP65 |
Peak Power (Watts) | 12" subwoofer: 1400 watts |
10" subwoofer: 600 watts | |
Rms Power Rating (Watts) | 12" subwoofer: 700 watts |
10" subwoofer: 300 watts | |
Sensitivity (1 Watt @ 1 Metre) | 86 dB |
Magnetic Structure | 12" subwoofer: 114 oz |
10" subwoofer: 68 oz | |
Frequency Response | 12" subwoofer: 20 Hz2 kHz |
10" subwoofer: 30 Hz2 kHz | |
Nominal Impedance | 4 ohm |
Recommended Amplifier Power (Watts Rms) | 12" subwoofer: 2001000 watts |
10" subwoofer: 50600 watts | |
Led Lighting | yes, CRGBW (sports style with LED models only) |
Led Supply Voltage | 10.816 VDC (sports style with LED models only) |
Led Load Current @14.4 Vdc (Max) | 300 mA (sports style with LED models only) |
Operating Temperature Range | 32122 degrees F (050 degrees C) |
Voice Coil Diameter | 12" subwoofer: 4" |
10" subwoofer: 2" | |
Cone Material | Polypropylene cone with rubber surround |
Compass-Safe Distance | 12" subwoofer: 181" (460 cm) |
10" subwoofer: 205" (520 cm) | |
Subwoofer Connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
Led Connection (Sports Style With Led Models Only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
Mounting Dimensions | |
Mounting Diameter Clearance | 12" subwoofer: 12.05" (306 mm) |
10" subwoofer: 8.78" (223 mm) | |
Mounting Depth Clearance | 12" subwoofer: 8.15" (207 mm) |
10" subwoofer: 5.24" (133 mm) | |
Optimum Enclosure Recommendations | |
Sealed Enclosure Volume (Fully Filled With Absorption Material) | 12" subwoofer: 2.12 cubic ft (60 L) |
10" subwoofer: 0.95 cubic ft (27 L) | |
Ported (Vented) Enclosure Volume (Lined With Absorption Material) | 12" subwoofer: 8.83 cubic ft (250 L) |
10" subwoofer: 1.6 cubic ft (45 L) | |
Port Diameter | 12" subwoofer: 4" (101.6 mm) |
10" subwoofer: 4.1" (104 mm) | |
Port Length | 12" subwoofer: 5" (127 mm) |
10" subwoofer: 10.43" (265 mm) |
