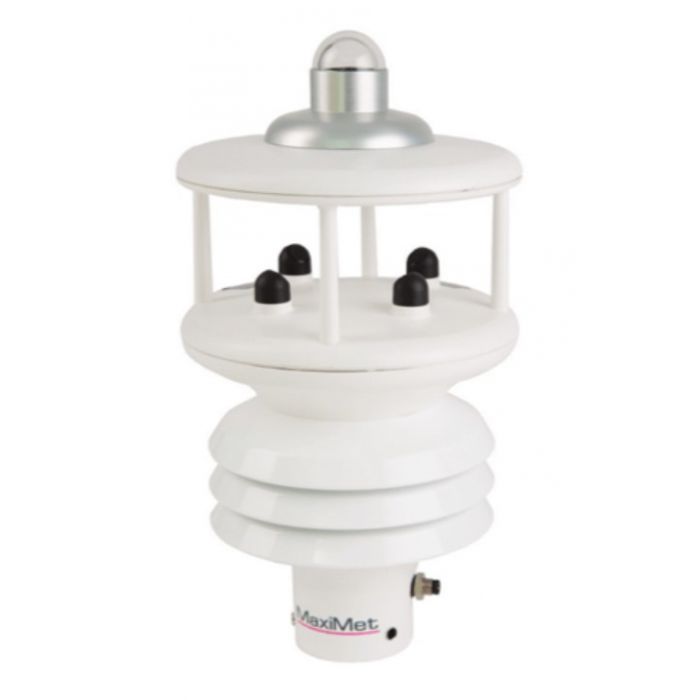

GIll MaxiMet GMX551 Compact Weather Station - White
R70,709.00
SKU
1957055160000
Lightweight and robust
Easy installation
Low power mode
Manufacturer's Website
Description
When looking for a budget friendly compact weather station the GIll MaxiMet GMX551 Compact Weather Station is the only station you will ever need. The GIll MaxiMet GMX551 Compact Weather Station has some amazing features like an integrated optical rain gauge that automatically senses water hitting its outside surface, and real time wind speed and direction measurements. The compact design of the GIll MaxiMet GMX551 Compact Weather Station gives you a lightweight and robust solution to your at home weather reading, as well as an easy to install system that won't cost you an arm and a leg to do.
Features
- Easy Installation
- Real Time Output
- Lightweight and robust
- Easy installation
- Low power mode
- Free of charge software
Specifications
| Wind Speed | |
| Range | 0.01 m/s to 60 m/s |
| Accuracy | (+/-)3% to 40 m/s, (+/-)5% to 60 M/S |
| Resolution m/s | 0.01 |
| Starting Threshold | 0.01 m/s |
| Sampling Rate | 1Hz |
| Units | m/s, km/hr, mph, kts, ft/min |
| Wind Direction | |
| Range | 0-359 degree |
| Accuracy | (+/-)3 degree to 40 m/s, (+/-)5 degree to 60 m/s |
| Resolution | 1 degree |
| Starting Threshold | 0.05 m/s |
| Sampling Rate | 1Hz |
| Units | Degree |
| Temperature | |
| Range | -40 degree Celsius to +70 degree Celsius |
| Resolution | 0.1 |
| Accuracy | (+/-)0.3 degree Celsius at 20 degree Celsius |
| Sampling Rate | 1Hz |
| Units | Degree C, F, K |
| Humidity | |
| Range | 0-100% |
| Resolution | 1% |
| Accuracy | (+/-)2% at 20 degree Celsius (10% - 90% RH) |
| Sampling Rate | 1Hz |
| Units | %, RH, g/m cubed |
| Dew Point | |
| Range | -40 degree Celsius to +70 degree Celsius |
| Resolution | 0.1 |
| Accuracy | (+/-)0.3 degree Celsius at 20 degree Celsius |
| Units | Degree C, F, K |
| Sampling Rate | 1Hz |
| Pressure | |
| Range | 300 to 1100 hpa |
| Resolution | 0.1 hpa |
| Accuracy | (+/-)0.5 hpa at 25 degree Celsius |
| Sampling Rate | 1Hz |
| Units | hpa, mbar, mmHg, inHg |
| Precipitation (Input) | |
| Measurement input type | TBRG |
| Range | 0-1000 mm/hr |
| Precipitation Resolution | 0-9998 mm Software selectable |
| Units | mm/hr, mm/total, mm/24hr, in/hr, in/total, in/24hr |
| Input to GMX | Contact closure via M8 male 4-pin connector optional 20m cable or mating female connector required |
| Global Solar Radiation | |
| Wavelength 300 to 3000 nm | |
| Output Range | 0 to 1600 W/m squared |
| Resolution | 1W/m squared |
| DIN Standard | ISO 9060 Second Class |
| Sampling Rate | 1Hz |
| Units | W/m squared |
| Outputs | |
| Output Rate | 1s, 1 min, hr |
| Digital Comms Modes | Serial RS232, RS422, RS485, SDI-12, NMEA, MODBUS, ASCII |
| Analogue Outputs | Available via separate optional device |
| Power | |
| Power Supply | 5 to 30 Vdc |
| Power (Nominal) 12 Vdc | 25 mA continuous high mode. 0.7 mA eco-power mode (1 hour polled) |
| Environmental Conditions | |
| IP Rating | 66 |
| Operational Temperature Rating | -40 degree Celsius to +70 degree Celsius |
| EMC Standard | BS EN 61326-21 : 2013 FCC, CFR Title 47, Part 15, Subpart B, Class A digital device |
| CE Marking | Yes |
| RoHS Compliant | Yes |
| Weight | 0.8kg |
| Origin | UK |
| Free Shipping | No |
|---|
