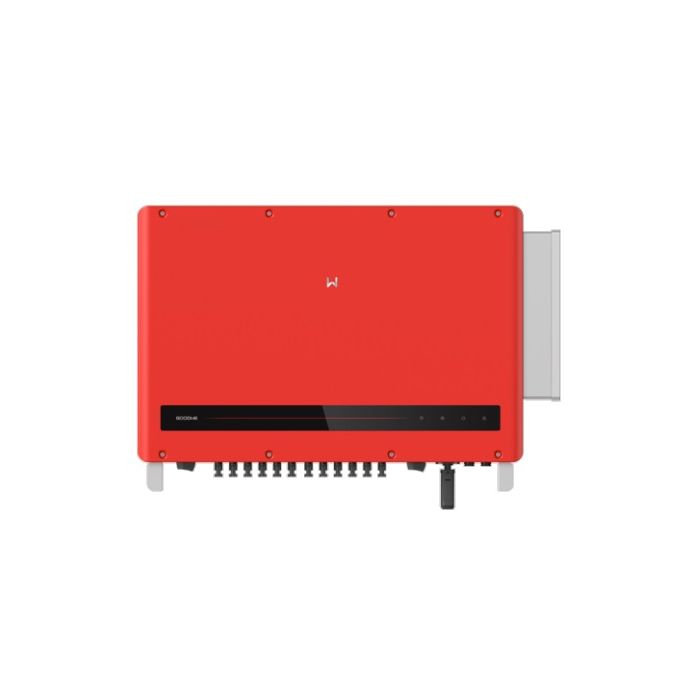

Goodwe GW100K-HT Series Inverter

Description

The Goodwe GW100K-HT Series Inverter is GoodWe's new string inverter for C & I and small utility projects. The HT series offers up to 12 MPPTs, and is compatible with bifacial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication and internal humidity detection. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards. This inverter comes with an optional AC switch for reduced overall costs and reduced installation time. Configuration can be easily done via Bluetooth,
and diagnosis and firmware upgrading can be operated remotely. This outstanding set of features was conceived to ensure the lowest levelized cost of electricity (LCOE).

HT Series is ideal for high-power 182mm/210mm modules on the market featuring MPPT-level maximum 60 A DC input current. GW225KN-HT & GW250KN-HT support max. 20 A DC input current per string, and GW225K-HT & GW250K-HTsupports Max. 15 A DC input current per string, making full use of power generated and guarantees LCOE for clients. Featuring smart string protection switch, the inverter can detect a short circuit or reverse connection, automatically turn off the switch to stop the corresponding MPPTs, and report the fault at the same time, which ensures both safety and efficiency. HT Series also allows for string level monitoring and supports intelligent detection of voltage and current issues, guaranteeing fast troubleshooting.

Features

• Smart string protection switch
• 20 A max. current per string
• String level monitoring
• Power line communication 2.0
• Compatible with Bifacial Module
• Power line communication
• Easy and quick configuration via Bluetooth
• String level monitoring

Specifications
