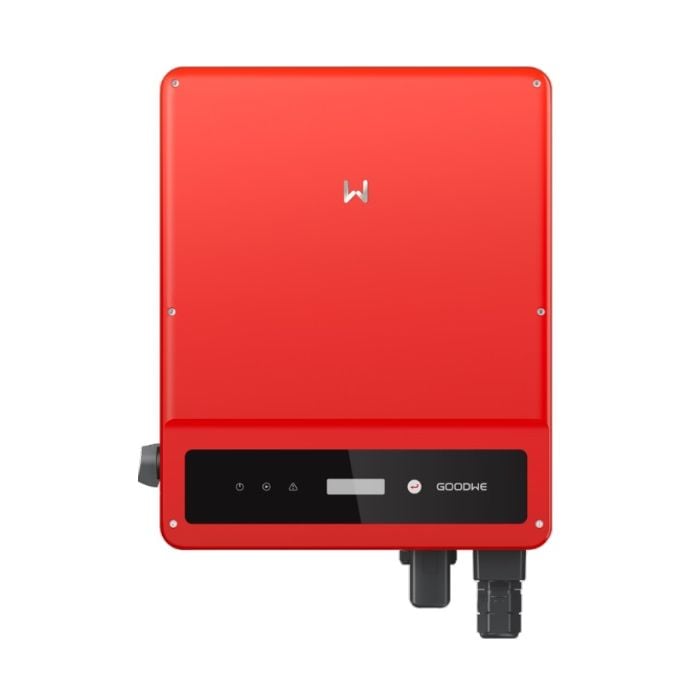

Goodwe GW20KT-DT SDT G2 Series Three Phase Inverter
R41,399.00
SKU
3002000039
Compatible with bifacial modules
Compact and light weight
150% DC input oversizing & 110% AC output overloading
Shipping restrictions apply.
Manufacturer's Website
Description
The Goodwe GW20KT-DT SDT G2 Series Three Phase Inverter is especially designed for three-phase residential and small commercial projects. With its compact design, the SDT G2 inverter is 45% smaller than the first generation. The inverter is also light and easy to install. The maximum efficiency of this inverter is as high as 98.4%. With an advanced ventilation system, the inverter is able to dissipate heat efficiently. In addition, it can be customized with an integrated LCD screen.
The inverter has data breakpoint resuming function, which means it can re-upload data to the monitoring system when it reconnects to the server after going off-line. The data is encrypted during the transmission process, and data on the server has backup. All these features ensure data security. For a 17-25 kW inverter, it is relatively small and light, which makes it easily transportable. Its compact design also allows for quick and easy installation.
Features
- Compatible with bifacial modules
- Compact and lightweight
- 150% DC input oversizing & 110% AC output overloading
- Max. efficiency 98.4%
Specifications
| Max. DC Input Power (Wp) | 30000 |
| Max. DC Input Voltage (V) | 1100 |
| MPPT Operating Voltage Range (V) | 200950 |
| Starting Voltage (V) | 180 |
| Nominal DC Input Voltage (V) | 620 |
| Max. Input Current per MPPT (A) | 25 |
| Max. Short Circuit Current per MPPT (A) | 31.2 |
| Number of MPPTs | 2 |
| Number of Strings per MPPT | 2 |
| Nominal Output Power (W) | 20000 |
| Nominal Output Apparent Power (VA) | 20000 |
| Max. Output Apparent Power (VA) | 22000 |
| Nominal Output Voltage (V) | 400, 3L / N / PE |
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| Max. Output Current (A) | 31.9 |
| Output Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Max. Total Harmonic Distortion | <3% |
| Max. Efficiency | 98.4% |
| European Efficiency | 97.7% |
| Free Shipping | No |
|---|
