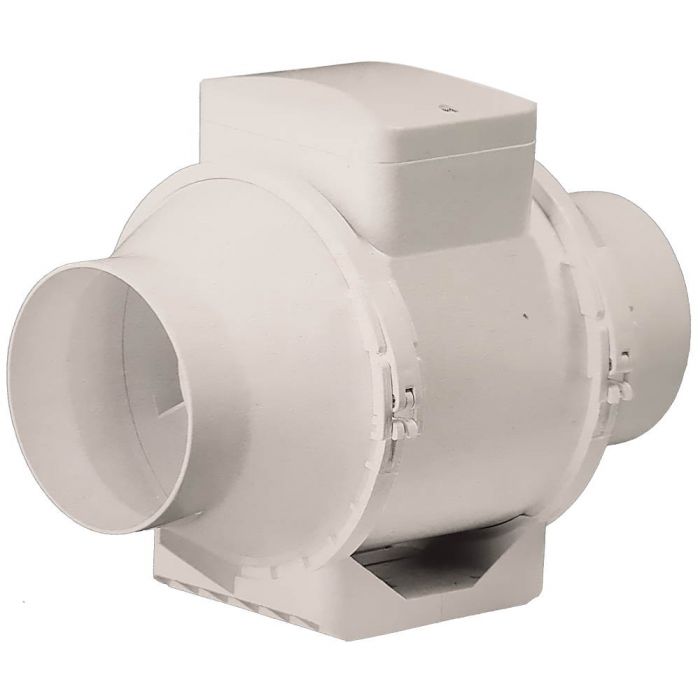

TT Series Tube Axial In-Line Fan - 125mm

R1,399.00
SKU
TT125
Best solution for air exhaust systems of premises with high humidity Made of high-quality durable abs plastic Motor are equipped with built-in overheating protection
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



Description

The TT Series Tube Axial In-Line Fan - 125mm combines manifold possibilities and high features of axial and centrifugal fans and applied for supply and exhaust ventilation systems that require high pressure, powerful airflow and low noise level and compatible with 100, 125, 150, 160, 200, 250, 315 mm round ducts.

Fans of TT series are the best solution for air exhaust systems of premises with high humidity such as bathrooms or kitchens as well as for ventilation of flats, cottages, shops, cafés, cinemas etc. The casing is made of high-quality durable ABS plastic (TT 100-200) or fire-resistant polypropylene (TT 250-315). The motor with impeller and terminal box are fixed on the casing by means of special clamps with latches, designed in such a way as to ensure easy dismantling without any special skills or tools.

One-phase motor with ball bearings has two speeds. Some standard sizes have motors with more powerful features (TTS). The motors are equipped with built-in overheating protection with automatic restart. Motor protection rating IP X4. The two speed motor is controlled by means of the external speed control switch. For smooth speed control, use symistor or auto transformer controller connected to the terminal for motor maximum speed.



Features

  • Best solution for air exhaust systems of premises with high humidity
  • Made of high-quality durable abs plastic
  • Motor are equipped with built-in overheating protection
  • Motor protection rating IP x4
  • Compatible with 100, 125, 150, 160, 200, 250, 315 mm round ducts



Specifications

Voltage (V/50/60Hz) 1 - 230
Speed - Min.: Power (W) 23
Speed - Max.: Power (W) 37
Speed - Min.: Current (A) 0.18
Speed - Max.: Current (A) 0.27
Speed - Min.: Max. Air Capacity (M3/H) 220
Speed - Max.: Max. Air Capacity (M3/H) 280
Speed - Min.: Rpm 1950
Speed - Max.: Rpm 2455
Speed - Min.: Noise Level At 3M (Dba) 28
Speed - Max.: Noise Level At 3M (Dba) 37
Max. Transported Air Temp. 60C
Protection Rating IPX4
Dimensions (Mm) (D) 123 (B) 167 x (H) 190 x (L) 246
Weight (Kg) 1.35
