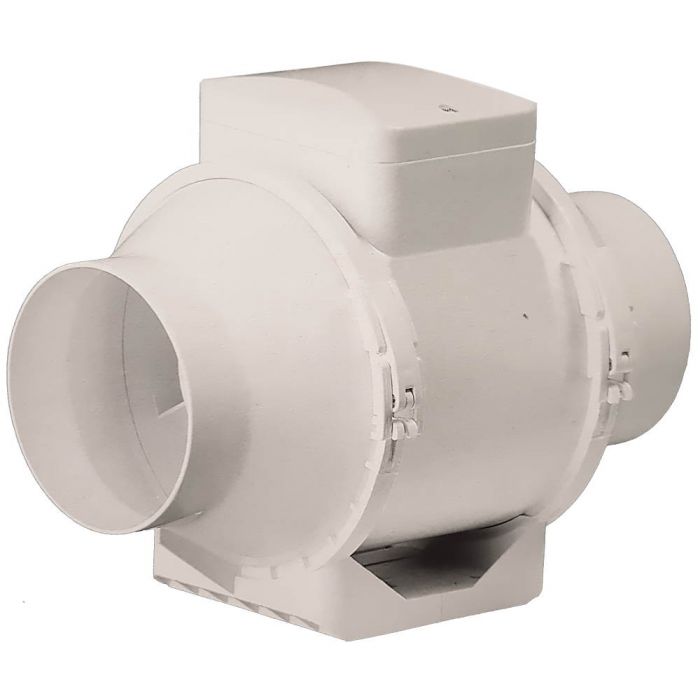

TT Series Tube Axial In Line Fan - 150mm, 220V

R2,149.00
SKU
TT150

2 Speed
High Pressure Power Airflow
150mm size
220 Volt

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



Description

The TT Series Tube Axial In Line Fan full-featured fan that combine manifold possibilities and is for supply and exhaust ventilation systems that require high pressure, powerful airflow and low noise level.

Fans of TT series are the best solution for air exhaust systems of premises with high humidity such as bathrooms or kitchens as well as for ventilation of flats, cottages,shops, cafes, cinemas etc.The casing is made of high-quality durable ABS plastic (TT 100-200) or fire resistant polypropylene (TT 250-315). Motor with impeller and terminal box are fixed on the casing by means of special clamps with latches, designed in such a way as to ensure easy dismantling without any special skills or tools.

Such design ensures easy service and maintenance access. All the models can be fitted with adjustable timer with turn-off delay from 2 to 30 minutes (TT…T). Power cord with plug can be provided for easy connection and operation (TT…R).

One-phase motor with ball bearings has two speeds. Some standard sizes have motors with more powerful features (TT…S). The motors are equipped with built-in overheating protection with automatic restart. Motor protection rating IP X4.The two speed motor is controlled by means of the external speed control switch. For smooth speed control use symistor or auto transformer controller connected to the terminal for motor maximum speed.



Features

  • 2 Speed Fan
  • In-line
  • IPX4 Motor Protection



Specifications

Voltage (V/50/60Hz) 1 - 230
Speed - Min.: Power (W) 30
Speed - Max.: Power (W) 60
Speed - Min.: Current (A) 0.17
Speed - Max.: Current (A) 0.27
Speed - Min.: Max. Air Capacity (m3/h) 405
Speed - Max.: Max. Air Capacity (m3/h) 520
Speed - Min.: RPM 1680
Speed - Max.: RPM 2460
Speed - Min.: Noise Level at 3m (dBA) 33
Speed - Max.: Noise Level at 3m (dBA) 44
Max. Transported Air Temp. 60C
Protection Rating IPX4
Dimensions (mm) (D) 146 ; (B) 223 x (H) 250 x (L) 295
Weight (kg) 2.65
