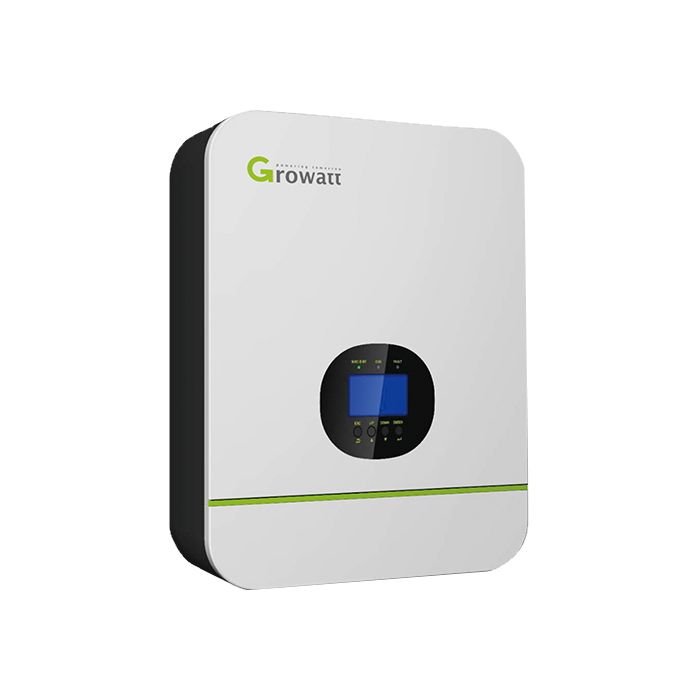

Growatt 5KW Hybrid Off-Grid Inverter - 48V
R16,489.00
SKU
SP5000TLHVM
Shipping restrictions apply.
Description
The Growatt 5KW Hybrid Off-Grid Inverter - 48V is integrated with an MPPT solar charge controller. The transformerless design provides reliable power conversion in compact size, and the inverter also allows you to set a load supply and battery charging priority.
Features
- Integrated MPPT charge controller
- Battery charging priority can be set
- Load supply priority can be set
- Optional Wi-Fi/ GPRS remote monitoring (not included)
- Parallel operation up to 6 units only available for 4-5kva
Specifications
| Battery Voltage | 48VDC |
| Battery Type | Lithium/ Lead-acid |
| Inverter Output | |
| Rated Power | 5000W |
| AC Voltage Regulation (Battery Mode) | 230VAC +/- 5% @ 50/60Hz |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical, 20ms max |
| Solar Charger | |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 60VDC-115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A |
| AC Charger | |
| Charge Current | 60A |
| Ac Input Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers): 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Physical | |
| Dimension | 130 x 350 x 455mm |
| Net Weight | 11.5kg |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
| Free Shipping | No |
|---|
