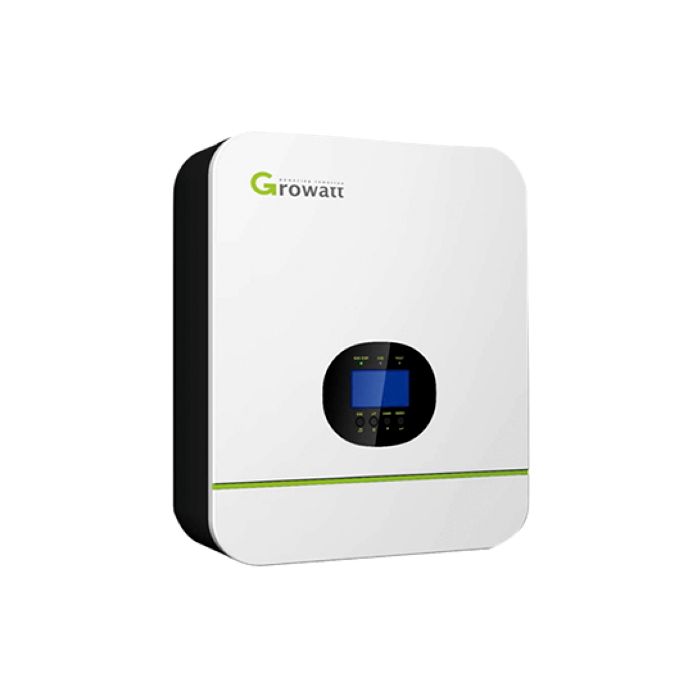

Growatt SPF 5000TL HVM-48V Hybrid Inverter
R16,759.00
SKU
GWH5KW48V
Please Note: Due to the daily fluctuation of the Rand/Dollar Exchange during the current worldwide pandemic, the price represented may NOT be an accurate purchasing price. Please ask us for a quote per item, when checking stock.
Description
The Growatt SPF 5000TL HVM-48V Hybrid Inverter is an off-grid solar inverter integrated with an MPPT solar charge controller. Has a transformer-less design that provides reliable power conversion in a compact size.
Features
- Integrated MPPT charge controller
- Battery charging and Load supply priority
- Wi-Fi/GPRS remote monitoring
- Parallel operation up to 6 units
Specifications
| Inverter Output | |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Rated Power | 5000VA / 5000W |
| Parallel Capability | 6 units maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC +_5% @ 50 / 60Hz |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Solar Charger | |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 60VDC ~ 115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A |
| Maximum Efficiency | 98% |
| AC Charger | |
| Charge Current | 60A |
| AC Input Voltage | 230 VAC |
| Selectable Voltage Range | 170 - 280 VAC (For Personal Computers): 90 - 280 VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto-sensing) |
| Physical | |
| Dimension (D x W x H) | 130 x 350 x 455mm |
| Net Weight | 11.5kg |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
| Free Shipping | No |
|---|
