Wide Angle Optical System Short Eye Relief Fully Multicoated Optics AMX IR glass Etched Reticle Fast focus eyebell

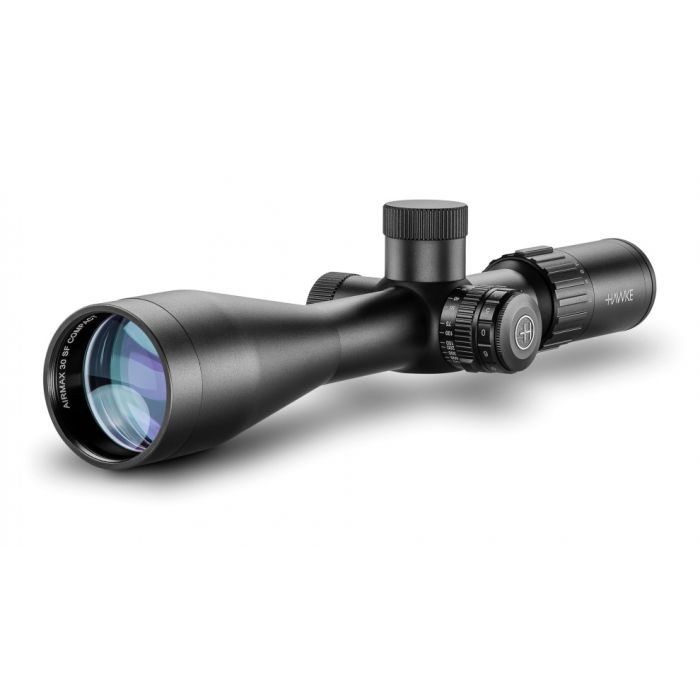

The Hawke Airmax 30 SF Compact 6-24x50 Scope - AMX IR Reticle is a wide angle optical system ideal for varmint/airgun use. It features a lightweight and compact construction with a short eye relief, 16 layer fully multi-coated optics for exceptional clarity, Side focus control for parallax adjustment to infinity and a Glass etched reticle with red illumination.
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Chassis
|
30mm Mono-tube
|
Optical System
|
6-24×
|
Objective
|
50mm
|
Reticle
|
AMX IR
|
Illumination
|
Red - 6 Levels
|
Focus/Parallax
|
Side Focus - 9m / 10yds to Infinity
|
Field of View: m @100m / ft @100yds
|
7.3-1.8m / 21.9-5.5ft
|
Eye Relief
|
76mm / 3″
|
Length
|
329mm / 13″
|
Weight
|
670g / 23.6oz
|
Material
|
Aluminium
|
Exit Pupil
|
8.3-2.1mm / 0.33-0.08″
|
Ocular Type
|
Fast Focus
|
Lens Coating
|
Fully Multi-Coated - 16 Layers
|
Power Selector Style
|
Rubber Coated Posi-Grip
|
Focal Plane
|
Second Focal Plane (SFP)
|
Elevation Increment
|
1⁄10 MRAD
|
Elevation Adjustment Range
|
16 MRAD
|
Windage Increment
|
1⁄10 MRAD
|
Windage Adjustment Range
|
16 MRAD
|
Turret Caps
|
YES
|
Turret Type
|
Capped Target Turrets
|
