Up to 2600m detection
-30c - +55c operating temperature
Replaceable and rechargeable li-ion batter

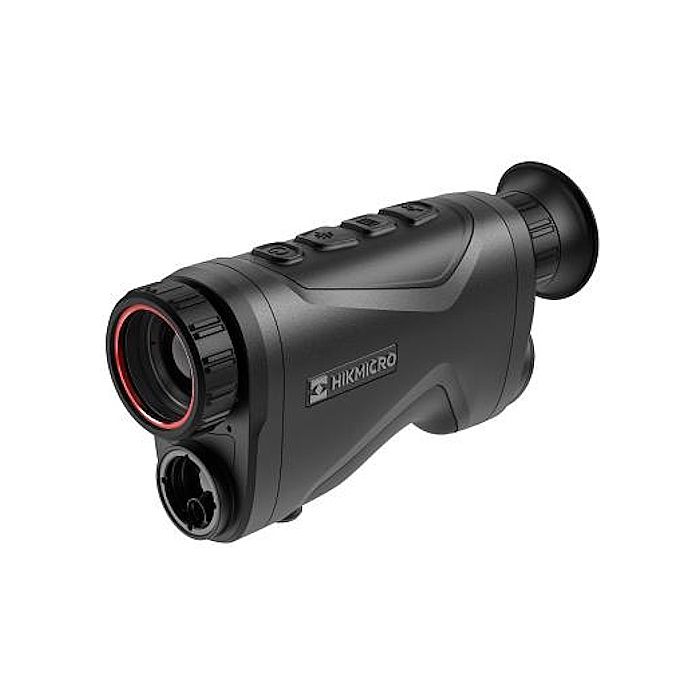

Introducing the Hikmicro Condor CH35L LRF Thermal Monocular - 384x288. With its exceptional detection capabilities, rugged construction, and user-friendly design, this monocular is an indispensable tool for professionals and outdoor enthusiasts alike.
Featuring a high-resolution thermal module with a maximum resolution of 384x288 pixels and a frame rate of 50Hz, the CH35L delivers crisp and detailed thermal images with outstanding clarity and precision. The VOx uncooled focal plane array sensor ensures optimal sensitivity and reliability, while the 35mm focal length lens with an aperture of F1.0 provides excellent light-gathering capability for enhanced image quality.
With a detection range of up to 1800 meters and an operating temperature range from -30C to +55C, the CH35L excels in detecting targets over long distances and performs reliably in harsh environmental conditions. Whether used for surveillance, search and rescue, hunting, or outdoor exploration, this monocular offers unmatched versatility and reliability in any situation.
The CH35L features a full-colour 1024x768 HD OLED display with adjustable contrast and brightness, allowing users to customize their viewing experience for optimal clarity and comfort. The monocular also offers four customizable colour palettes and tone adjustment settings, enabling users to optimize image contrast and detail for different environments and conditions.
For added convenience and versatility, the CH35L is equipped with audio and video recording capabilities, allowing users to capture and document their observations in real-time. The integrated hotspot module enables seamless connectivity with the Hikmicro Sight app, providing users with additional display options and sharing capabilities.
Compact and lightweight, the CH35L is designed for ease of use and portability, measuring just 184.9mm x 53mm x 87.8mm and weighing only 400g (without battery). With its rugged construction and IP67 protection rating, this monocular is built to withstand the rigours of outdoor use and offers reliable performance in any environment.
Whether used for professional applications or recreational purposes, the Hikmicro Condor CH35L LRF Thermal Monocular offers unmatched performance, versatility, and reliability, making it an essential tool for anyone in need of high-quality thermal imaging capabilities.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384x288 |
Frame Rate | 50Hz |
Pixel Interval | 12m |
Response Waveband | 8m to 14m |
Netd | Less than 20 MK (@25C),F1.0 |
Lens (Focal Length) | 35mm, F1.0 |
Detection Range | 1800m |
Focus Mode | Focus Ring |
Field Of View(H X V), Degrees / M @100M | 7.5 x 5.6 / 13.1m x 9.7m@100m |
Min. Focusing Distance | 3.5m |
Magnification | 3.5x-28.0x (8x) |
Image Display | |
Display | 1024x768, 0.39 inch, OLED |
Contrast Adjustment | Yes |
Brightness Adjustment | Yes |
Palettes | Black hot, white-hot, red-hot, fusion |
Ffc (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 4mm |
Eye Relief | 15mm |
Diopter (Range) | -5D to +3D |
Image Pro | Yes |
Tone Adjustment | Cold, Warm |
Zoom Pro | Yes |
General | |
Protection Level | IP67 |
Weight | 400g without battery |
Dimension | 184.9 mm x 53 mm x 87.8 mm (7.28" x 2.09" x 3.46 ") |
Working Temperature | -30C to +55C |
System | Yes |
Record Video | Yes |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64GB) |
Pip | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Audio Recording | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | 4.5 hours of continuous running with CVBS and hotspot function off (@25C, one provided battery) |
6 hours of operation (LRF & hotspot on, @25, three provided batteries) | |
Type-C Power Supply | 5V DC, 2 A Supports External Power Supply |
Laser Range finder | |
Safety Class For Laser | Class 1 |
Wavelength | 905nm |
Max. Measuring Range | 1000m |
Measurement Accuracy | +-1m |
Min. Measuring Range | 10m |
