Hot tracking mode
Four colour palettes
Full Colour 1024x768 HD OLED display

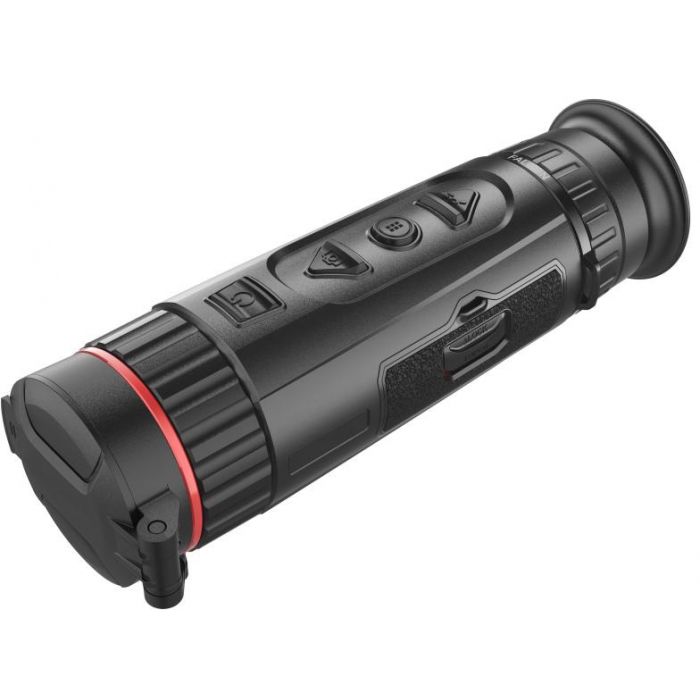

Introducing the Hikmicro Falcon FH25 Handheld Thermal Monocular - 384x288. With its exceptional thermal sensitivity, boasting a NETD of less than 20mK, the FH25 ensures perfect detail recognition even in the most challenging weather conditions, where minimal temperature differences exist between objects and backgrounds. This advanced sensitivity is further enhanced by the utilization of high TCR vanadium oxide thin film material, enabling the clear identification of even the smallest details.
Equipped with a high-definition thermal detector capable of resolutions up to 640x512 pixels, the FH25 delivers crisp and richly contrasted thermal images, ensuring optimal visibility and clarity in various observation scenarios. The inclusion of a super-large aperture f/0.9 lens provides a significant improvement in temperature radiation capturing capability, resulting in a 19% increase in the capturing of temperature radiation levels compared to conventional f/1.0 apertures. This larger aperture allows for the capture of more infra-red radiation, resulting in significantly clearer images.
The FH25 is equipped with HIKMICRO's proprietary Image Pro image processing algorithm, which maximizes digital image optimization based on the specific purposes and observation conditions, ensuring high-quality rendering of both target objects and backgrounds. Additionally, the monocular features a hot tracking mode, four colour palettes, and a full-colour 1024x768 HD OLED display, providing users with unparalleled versatility and flexibility in their thermal imaging tasks.
With features such as a photo/video recorder with 64GB built-in memory, HIKMICRO sight APP sharing, and support for continuous zooming from 2.2x to 17.6x magnification, the Falcon FH25 offers a comprehensive suite of functionalities to meet the diverse needs of users. Built to withstand the rigors of outdoor use, the FH25 boasts an IP67 protection rating, ensuring dustproof and waterproof performance in harsh environments. With its robust construction, advanced features, and superior thermal imaging capabilities, the Hikmicro Falcon FH25 Handheld Thermal Monocular is an indispensable tool for professionals and enthusiasts alike.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384x288 |
Frame Rate | 50Hz |
Pixel Interval | 12m |
Response Waveband | 8m to 14m |
NETD | Less than 20 MK (@25C),F1.0 |
Lens (Focal Length) | 25mm, F1.0 |
Detection Range | 1200m |
Focus Mode | Focus Ring |
Field of View(H x V), Degrees / m @100m | 10.5x7.9/18.4mx13.8m |
Min. Focusing Distance | 2.5m |
Magnification | 2.2x-17.6x (8x) Support Continuous Zooming |
Image Display | |
Display | 1024 x768, 0.39 inch, OLED |
Contrast Adjustment | Yes |
Brightness Adjustment | Yes |
Palettes | Black hot, white-hot, red-hot, fusion |
FFC (Flat Field Correction) Mode | Auto, Manual,External Correction |
Exit Pupil | 4mm |
Eye Relief | 15mm |
Diopter (Range) | -5D to +3D |
Image Pro | Yes |
General | |
Protection Level | IP67 |
Weight | 450g without Battery |
Dimension | 193.8mm x 66.9mm x 58.3mm |
Work Temperature/Humidity | From -30C to 55C (-22F to 131F) Humidity: 90% or Less |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in Memory Module (64 GB) |
PIP | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Audio Recording | Yes |
Power Supply | |
Battery Type | Yes |
Battery Operating Time | Yes |
Type-C Power Supply | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | 7h (25C, with Hotspot Off) |
Type-C Power Supply | 5V DC, 2A Supports External Power Supply |
