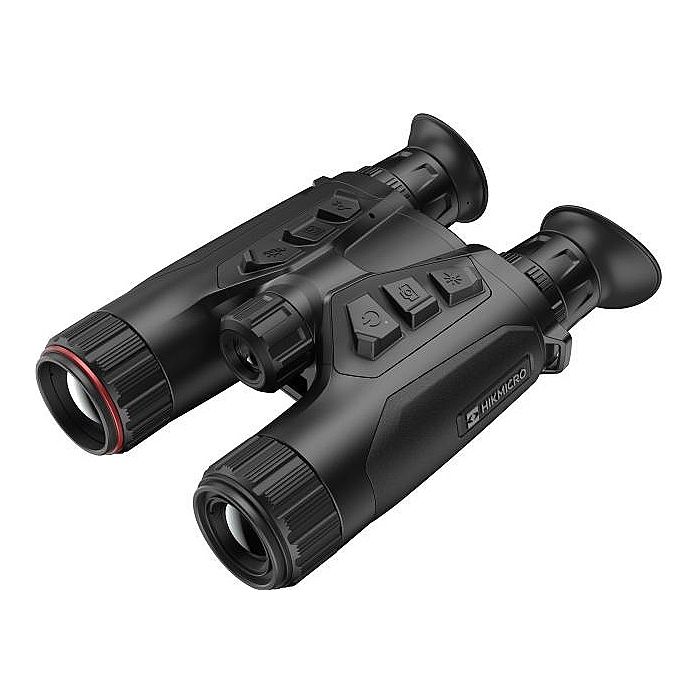

Hikmicro Habrok HQ35L LRF Multi-Spectrum Binocular - 640 x 512

R72,119.00
SKU
HQ35L

Local album for convenient viewing
Smart IR to avoid overexposure
Ip67 waterproof rated
6 h+ continuous operation

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website







Description

Introducing the Hikmicro Habrok HQ35L LRF Multi-Spectrum Binocular - 640 x 512. Named after the Norse mythological symbol of excellence, the Habrok series exclusively employs a 35mm objective lens diameter, enhancing portability and eliminating the need for separate stalking binoculars. Unlike its predecessors, the Habrok utilizes round 0.49" OLED displays, providing a viewing experience akin to traditional binoculars.

Ease of use is paramount, with interpupillary distance adjustment and diopter compensation facilitated by movable eyepieces. Six rubberised control buttons atop the housing ensure intuitive menu navigation, even in low-light conditions. Powered by two 18650 rechargeable batteries, the Habrok offers up to 6 hours of continuous operation, with four batteries included for extended field use.

With integrated Wi-Fi connectivity, the Habrok connects seamlessly to the Hikmicro Sight app, offering remote control functionality, firmware updates, and media management. Advanced features include a digital compass, GPS, and position sensor for enhanced usability and energy efficiency. The binoculars feature a 640 x 512 resolution thermal detector with a detection range of 1800m, coupled with a 2560 x 1440 resolution CMOS detector for optimal imaging. With an IP67 waterproof rating and a lightweight, ergonomic design, the Habrok is built for reliability and performance in any environment.



Features

  • Integrated hotspot module makes sight app as a second display
  • Local album for convenient viewing
  • Smart IR to avoid overexposure
  • Ip67 waterproof rated
  • Thermal lens
  • Laser range finder
  • IR emitter
  • Digital lens
  • 6 h+ continuous operation
  • 2,560 x 1,440 high resolution CMOS detectors
  • 384 x 288 resolution @12 m thermal detector
  • 1,920 x 1,080 resolution 0.49-inch OLED display
  • 780 g lightweight, compact and ergonomic design
  • 35 mm, f1.0 lens with thermal detection range up to 1,800 m
  • High sensitivity thermal module netd 20 MK (@25c, f 1.0)
  • Built-in 850 nm IR illuminator and laser range finder of 1,000 m measuring distance



Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 x 512
Frame Rate 50Hz
Pixel Interval 12um
Response Waveband 8um to 14um
Netd Less than 20 MK (@25C),F1.0
Lens (Focal Length) 35mm, F1.0
Detection Range 1800m
Focus Mode Focus Ring
Field Of View(H X V), Degrees / M @100M 12.5x10.1/ 22.0mx17.6m
Min. Focusing Distance 3.5m
Magnification 3.0x-24.0x (8x)
Optical Module
Image Sensor 1.88'' Progressive Scan CMOS
Max. Resolution 2560 x 1440
Min. Illumination 0.001 lux @ (F1.0 , AGC On)
Field Of View (H X V), Degrees/M @100 M 13.9x7.8 / 24.4m x 13.6m
Focal Length 31mm, F1.2
Min. Working Distance 3m
Viewing Range At Night 400m
Magnification 2.9x-23.2x (8x)
Focus Mode Focus Ring
Smart IR Yes
Image Display
Display 0.49 inch, OLED, 1920 x1080
Contrast Adjustment Yes
Brightness Adjustment Yes
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion Optical: Day, Night, Auto
Ffc (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 8mm
Eye Relief 15mm
Diopter (Range) -5D-+3D
Tone Adjustment Cold, Warm
Zoom Pro Yes
General
Protection Level IP67
Weight 780g without batteries
Dimension 138.2 mm x 68.4 mm x 212.4 mm (5.4" x 2.7" x 8.4")
Working Temperature -30 - +55
Interpupillary Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4-20-UNC
System
Record Video Yes
Capture Snapshot Yes
Hotspot Yes
Gps Yes
Digital Magnetic Compass Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
Pip Yes
Hot Track Yes
Audio Recording Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time Roughly 6h (25 C, with hotspot off)
Type-C Power Supply 5V DC, 2 A, Supports External Power Supply
Laser Range finder
Safety Class For Laser Class 1
Wavelength 905nm
Max. Measuring Range 1000m
Measurement Accuracy +-1m
Min. Measuring Range 10m
Infra-red Illuminator
Emitter LED
IR Wavelength 850nm
Beam Angle Adjustable 7.6-11.5
