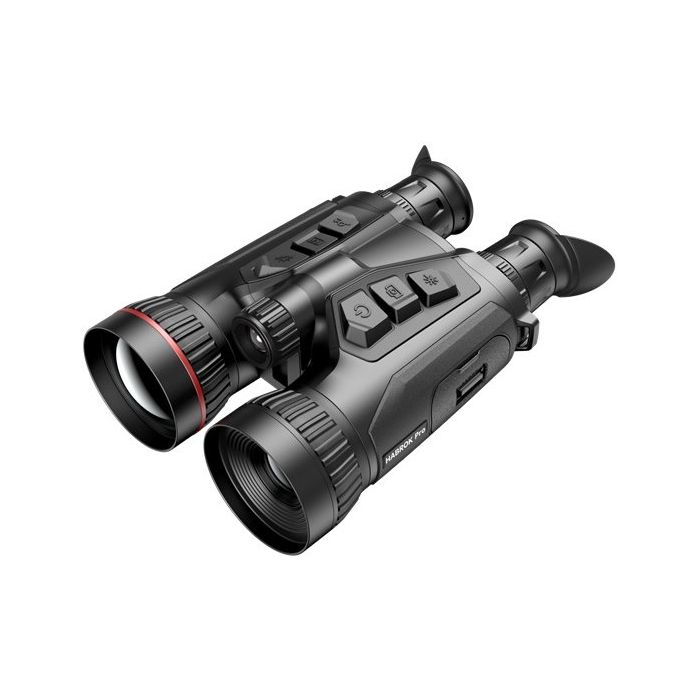

Hikmicro HX60L Habrok Pro Multi-Spectrum Binocular - 1280x1024

R114,199.00
SKU
HX60L

1280 x 1024 resolution
12um thermal detector
High sensitivity thermal module
Netd < 18 mk (at 25c, f 1.0)

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website



Description

Introducing the Hikmicro HX60L Habrok Pro Multi-Spectrum Binocular - 1280x1024. Enhances the synthesis of thermal and digital imaging technologies, offering a sophisticated solution for outdoor enthusiasts and professionals. With a resolution of 1280 x 1024 pixels, the binocular is equipped with a high-sensitivity thermal detector that boasts an NETD of less than 18 mK, allowing for exceptional image quality and detail recognition in a wide range of environmental conditions. The advanced thermal lens, with a focal length of 60 mm and an aperture of F1.0, enables thermal detection at distances of up to 3100 meters, making it ideal for applications such as forest and field hunting, birdwatching, and wildlife tracking.

In conjunction with the thermal capabilities, the HX60L features a state-of-the-art 4K digital camera equipped with a 60 mm F2.2 lens. This camera provides strikingly clear visuals with a maximum resolution of 3840 x 2160, amplified by a vibrant 0.49-inch OLED display that offers 1920 x 1080 resolution to ensure a detailed viewing experience. With a magnification range from 5.5x to 22.0x, users can comfortably examine distant subjects while the binocular's focus mode, manipulated through a focus ring, allows for precise adjustments to achieve optimal clarity.

Designed for durability and ease of use in the field, the HX60L weighs just, 1050 grams and features a compact and ergonomic build for comfortable handling over extended periods. Its IP67 rating ensures resistance to dust and immersion in water, making it suitable for various weather conditions. Additionally, the binocular operates effectively in temperatures ranging from -30C to +55C, providing reliability in diverse environmental settings.

The inclusion of a 1000 m laser rangefinder and replaceable 850 nm IR illuminator greatly enhances the HX60Ls functionality, allowing users to measure distances with an accuracy of 1 meter and effectively extend their viewing range at night up to 400 meters. With features such as video recording, snapshot capture, GPS, and a digital magnetic compass, this multi-spectrum binocular is a versatile tool for serious outdoor activities, complemented by a replaceable and rechargeable battery that offers up to 9.5 hours of continuous operation. The Hikmicro HX60L Habrok Pro Multi-Spectrum Binocular is an essential companion for explorers seeking cutting-edge technology and performance in the field.



Features

  • 1280 x 1024 resolution
  • 12um thermal detector
  • High sensitivity thermal module
  • Netd < 18 mk (at 25c, f 1.0)
  • 60 mm, f1.0 lens with thermal detection range up to 3100 m
  • 3840 x 2160 4k ultra high-resolution, 60 mm, f2.2 digital camera
  • 1920 x 1080 resolution 0.49-inch OLED display
  • Replaceable 850 nm IR emitter and 1000m laser rangefinder
  • 7 h+ continuous operation time with replaceable battery pack
  • 1050 g lightweight, with a compact and ergonomic design



Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 1280 x 1024
Frame Rate 25Hz
Pixel Interval 12um
Response Waveband 8um to 14um
Netd Less than 15 mK (at 25C),F1.0
Lens (Focal Length) 60mm, F1.0
Detection Range 3100m
Focus Mode Focus Ring
Field Of View(H X V), Degrees / M At 100M 14.6 x 8.8 / 25.6m x 15.4m
Min. Focusing Distance 3m
Magnification 2.6x-20.0x (7.7x)
Optical Module
Image Sensor 1/1.8'' Progressive Scan CMOS
Max. Resolution 3840 x 2160
Field Of View (H X V), Degrees/M At 100 M 7.3 x 4.1 / 12.6m x 7.2m
Focal Length 60mm, F2.2
Min. Working Distance 3m
Ir Illuminator Wavelength 850nm
Viewing Range At Night 400m
Magnification 5.5x - 22.0x4x)
Focus Mode Focus Ring
Smart Ir Yes
Replaceable Ir Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1920 x1080
Contrast Adjustment Yes
Brightness Adjustment Yes
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion, Optical: Day, Night, Auto
Ffc (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 8mm
Eye Relief 15mm
Diopter (Range) -5D - +3D
Tone Adjustment Cold, warm
Image Pro 2.0 Yes
General
Protection Level IP67
Weight 1050g with battery pack
Dimension 152.8mm x 81.95 mm x 231.5 mm (6.0" x 3.2" x 9.1")
Working Temperature -30 - +55
Interpupillary Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4-20-UNC
System
Record Video Yes
Capture Snapshot Yes
Hotspot Yes
Gps Yes
Digital Magnetic Compass Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
Pip Yes
Hot Track Yes
Audio Recording Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time 9.5h (25 C, with hotspot off, LRF on)
Type-C Power Supply 5V/9V DC, 3A
  Support External Power Supply
  Support Direct Charging
Laser Rangefinder
Safety Class For Laser Class 1
Wavelength 905nm
Max. Measuring Range 1000m
Measurement Accuracy -/+1m
Min. Measuring Range 10m
