384 x 288 resolution
12 um thermal detector
High sensitivity thermal module netd<15 mk (at 25c, f 1.0)
35 mm, f1.0 lens

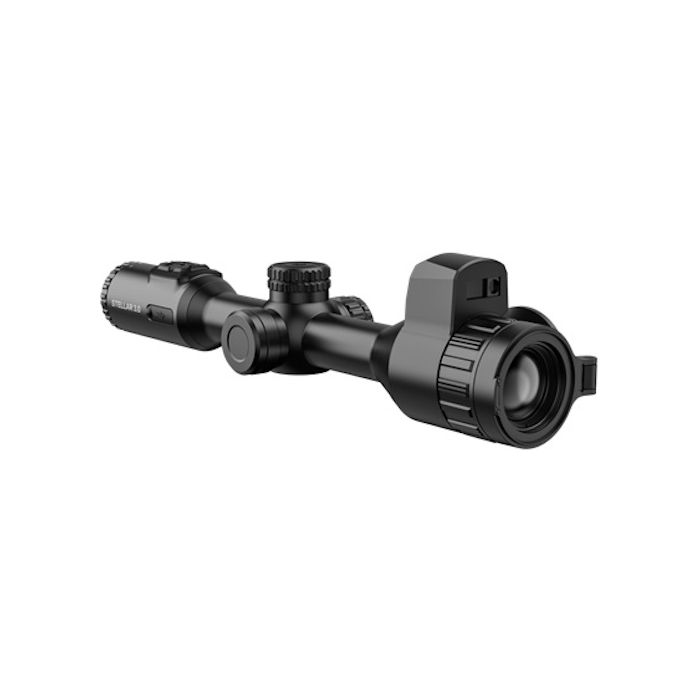

Introducing the Hikmicro Stellar SH35L 3.0 4.2x-24.2x Thermal Imaging Riflescope - 384x288. A state-of-the-art thermal image riflescope designed specifically for hunting in diverse outdoor conditions. Equipped with an advanced 384 x 288 resolution thermal detector with a 12 m pixel interval, the SH35L delivers exceptionally high sensitivity, boasting a NETD of less than 15 mK (at 25C). This performance is enhanced by the Image Pro 2.0 processing algorithm and the Hikmicro Shutterless Image System (HSIS), ensuring that users can observe fine details without interruptions, regardless of the weather or light levels.
With a powerful 35 mm, f1.0 lens, the SH35L offers a detection range of up to 1,800 meters, making it perfectly suited for both field and forest hunting applications. The scope also features a large 2,560 x 2,560 resolution AMOLED display (1.03 inches), which improves target recognition and makes it easier to identify objects quickly and accurately. One of the key features of the SH35L is its built-in laser rangefinder (LRF), which has a measuring capability of up to 1,000 meters and includes ballistic calculations, further enhancing shooting accuracy. This integration of advanced technology allows the user to make more informed shooting decisions.
The magnification range is impressive, spanning from 4.2x to 24.2x with a 1x step value for continuous zooming. The field of view at 100 meters is 7.5 x 5.7, ensuring ample situational awareness in the field. The focus mechanism allows users to adjust focus easily using a focus ring, with a minimum focusing distance of 3 meters. The SH35L's construction is noteworthy, featuring high shock resistance rated at 1,000 g/0.4 ms and an IP67 protection level, making it rugged and suitable for harsh conditions. Weighing 830 grams without the external battery and measuring 410 mm x 85 mm x 69.4 mm, this riflescope is designed for stability and ease of handling.
Powering the device are two rechargeable lithium batteries (internal) along with one replaceable and rechargeable 18650 battery (external), allowing for an extended operational time of up to 9 hours-even under challenging conditions. The Type-C power supply supports quick charging and efficient power management. The SH35L also includes features such as onboard video recording, audio recording, snapshot capture capabilities, and a distance measurement functionality. With 64GB of built-in storage, users can easily save recordings and snapshots. Additional features include PIP (Picture-in-Picture), Hot Spot, Hot Tracking, and five zeroing profiles, all designed to optimize the user experience.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Resolution | 384 x 288 |
Frame Rate | 50 Hz |
Pixel Interval | 12 um |
Response Waveband | 8 um to 14 um |
Netd | Less than 15 mK (at 25C, F 1.0) |
Lens (Focal Length) | 35 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 1,800m |
Focusing Distance | 3 meters |
Magnification | 4.2x - 24.2x, Support 1x step value of continuous zooming |
Field Of View (Hxv), Degrees / M At 100 M | 7.5 x 5.7/13.1 m x 10.0 m |
Image Display | |
Display | 2,560 x 2,560, 1.03-inch OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Exit Pupil | 6 mm |
Eye Relief | 45 mm |
Diopter (Range) | -5D to 3D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Zoom Pro | Yes |
Image Pro 2.0 | Yes |
Hsis (Hikmicro Shutterless Image System) | Yes |
System | |
Record Video | On-board Video Recording |
Capture Snapshot | Yes |
Audio Recording | Yes |
Recoil-Activation Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
Pip | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Zeroing Profiles | 5 |
Recoil | 1,000 g/0.4 ms |
Freeze Zeroing | Yes |
Local Album | Yes |
Power Supply | |
Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
Battery Operating Time | 9 hours continuous running (@ -20C, Zoom Pro, LRF on) |
Type-C Power Supply | 5 V DC/2 A, USB Type-C interface Supports QC3.0 |
General | |
Mounting | Standard 30 mm |
Protection Level | IP67 |
Dimension | 410 mm x 85 mm x 69.4 mm |
Weight | 830 g without external battery |
Working Temperature | -30C to 55C (-22F to 131F) |
Centre Height | 32 mm |
Laser Rangefinder | |
Safety Class For Laser | Class 1 |
Wavelength | 905 nm |
Max. Measuring Range | 1,000 m |
Measurement Accuracy | -/+1 m |
Min. Measuring Range | 10 m |
