-30C to 55C work temperature
Protection level IP67
Ultra long detection range
Highlights capturing

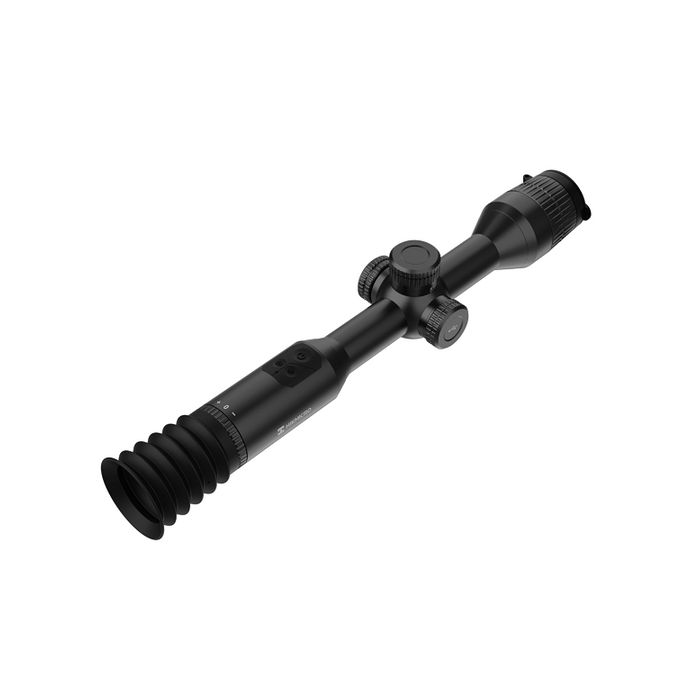

Introducing the Hikmicro Stellar SH50 Thermal Image Scope - 50mm, 384x288. Seamlessly integrates traditional rifle scope design with cutting-edge thermal imaging technology, ensuring exceptional performance in various outdoor conditions. Boasting a 384 x 288 thermal detector and a 1024 x 768 OLED display, it delivers clear images even in challenging environments like darkness, fog, and smoke. With an extreme detection range of up to 2600 meters, it's the go-to choice for professional hunters and outdoor enthusiasts seeking superior performance.
Equipped with a base magnification of 3.8x and up to 8x digital magnification, the SH50 allows users to zoom in on distant targets with remarkable clarity. Its two internal lithium batteries provide an outstanding 15 hours of runtime, while a removable CR123A battery serves as an emergency backup, offering an additional hour of operation. The scope features recoil-activated recording functionality, automatically capturing crucial moments on its 64GB internal storage and includes a microphone for sound recording.
The SH50's built-in Wi-Fi connectivity enables users to connect to the HIKMICRO Sight app, facilitating real-time streaming, recording, and control of the scope from a smartphone or tablet. Its sleek, ergonomic design incorporates intuitive controls, including a jog dial for magnification adjustment and easy access to key features like video recording. With an IP67 protection rating and high shock resistance up to 1000g/0.4ms, the SH50 is built to withstand the rigours of outdoor use, ensuring reliability in the field.
Thermal Module | |
Image Sensor | Uncooled Focal Plane Array |
Max. Resolution | 384x288 |
Frame Rate | 50Hz |
Pixel Interval | 12um |
Response Waveband | 8um to 14um |
Netd | less than 35 MK (25 C, F1.0) |
Lens (Focal Length) | 50mm, F1.0 |
Detection Range | 2600m |
Focus Mode | Focus Ring |
Field Of View(H X V), Degrees / M @100M | 5.3 x 4.0 / 9.2m x 6.9m |
Min. Focusing Distance | 5m |
Magnification | 3.9x-30.8x (8x) Support continuous zooming |
Image Display | |
Display | 1024x768, 0.39 inch, OLED |
Palettes | Black hot, white-hot, red-hot, fusion |
Ffc (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 5mm |
Eye Relief | 60mm |
Diopter (Range) | 5 D to 5 D |
General | |
Protection Level | IP67 |
Weight | 970g without eyepiece and CR123A battery |
Dimension | 420mm x 78.1 mm x 82 mm |
Mounting | Standard 30mm |
Work Temperature/Humidity | -30 C to 55 C (-22 F to 131F) |
System | |
Record Video | On-board video recording |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
Pip | Yes |
Dpc | Yes |
Hot Track | Yes |
Audio Recording | Yes |
Recoil-Activation Recording | Yes |
Zeroing Profiles | 5 |
Power Supply | |
Battery Type | Two Rechargeable Lithium Batteries (Internal) and One Replaceable CR123A (External) |
Battery Operating Time | 15 hours continuous running (@25C, Hotspot off) |
Battery Capacity Display | Yes |
Anti-Reverse Battery Connection | Yes |
Overvoltage Protection | Yes |
Type-C Power Supply | 5 V DC/2 A, USB Type-C interface, Supports QC3.0 |
