640 x 512 resolution
12 m thermal detector
High sensitivity thermal module netd<15 mk (at 25c, f 1.0)
35 mm, f1.0 lens

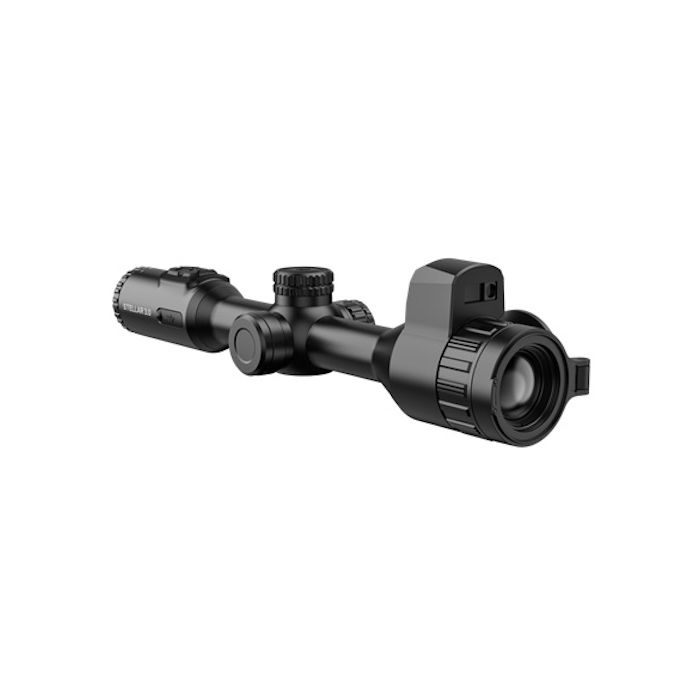

Introducing the Hikmicro Stellar SQ35L 3.0 2.5x-24.5x Thermal Imaging Riflescope - 640x512. An advanced thermal image riflescope designed for precision hunting in various environments. It features a high-resolution 640 x 512 thermal detector with a 12 m pixel interval, offering enhanced sensitivity with a NETD of less than 15 mK (at 25C). This capability, paired with the latest Image Pro 2.0 image processing algorithm and the Hikmicro Shutterless Image System (HSIS), ensures users can clearly see fine details in all weather and lighting conditions without interruption.
The SQ35L is equipped with a robust 35 mm, f1.0 lens, providing a detection range of up to 1,800 meters. One of its stand-out features is the 2,560 x 2,560 resolution AMOLED display (1.03 inches), which enhances target spotting and identification accuracy, allowing hunters to act decisively and confidently. In addition to its thermal imaging capabilities, the SQ35L includes a built-in laser rangefinder (LRF) with a measuring range of up to 1,000 meters and integrated ballistic calculations, which can significantly improve shooting accuracy and efficiency.
This riflescope supports magnification from 2.5x to 24.5x and allows for continuous zooming with a 1x step value. The field of view at 100 meters is 12.5 x 10.0, giving users a broader perspective of their surroundings. The focus mechanism is easily adjustable using a focus ring, with a minimum focusing distance of 5 meters. Constructed for durability, the SQ35L exhibits high shock resistance up to 1,000 g/0.4 ms and has an IP67 protection level, making it impervious to dust and water, which enhances its reliability in tough conditions. It weighs 830 grams without the external battery and measures 410 mm x 85 mm x 86.3 mm, making it a solid yet manageable choice for outdoor activities.
Powering the SQ35L are two rechargeable lithium batteries (internal) and a replaceable rechargeable 18650 battery (external), providing up to 9 hours of continuous operation even in low temperatures. The Type-C power supply supports rapid charging (QC3.0), ensuring the device is ready for use in no time. The SQ35L also features comprehensive functionalities such as on-board video recording, audio recording, snapshot capture, and distance measurement, all of which enhance the user experience. With a built-in storage capacity of 64GB, users can save their recordings, snapshots, and data with ease. Additional features like Hot Spot, PIP (Picture-in-Picture), Hot Tracking, and multiple zeroing profiles make it a versatile and powerful tool for any hunter.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Resolution | 640 x 512 |
Frame Rate | 50 Hz |
Pixel Interval | 12 um |
Response Waveband | 8 um to 14 um |
Netd | Less than 15 mK (at 25C, F 1.0) |
Lens (Focal Length) | 35 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 1,800 m |
Focusing Distance | 5 meters |
Magnification | 2.5x - 24.5x, Support 1x step value of continuous zooming |
Field Of View (Hxv), Degrees / M At 100 M | 12.5 x 10.0/ 21.9 m x 17.5 m |
Image Display | |
Display | 2,560 x 2,560, 1.03-inch OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Exit Pupil | 6 mm |
Eye Relief | 45 mm |
Diopter (Range) | -5D to 3D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Zoom Pro | Yes |
Image Pro 2.0 | Yes |
Hsis (Hikmicro Shutterless Image System) | Yes |
System | |
Record Video | On-board Video Recording |
Capture Snapshot | Yes |
Audio Recording | Yes |
Recoil-Activation Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
Pip | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Zeroing Profiles | 5 |
Recoil | 1,000 g/0.4 ms |
Freeze Zeroing | Yes |
Local Album | Yes |
Power Supply | |
Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
Battery Operating Time | 9 hours continuous running (@ -20C, Zoom Pro, LRF on) |
Type-C Power Supply | 5 V DC/2 A, USB Type-C interface Supports QC3.0 |
General | |
Mounting | Standard 30 mm |
Protection Level | IP67 |
Dimension | 410mm x 85mm x 86.3 mm |
Weight | 830 g without external battery |
Working Temperature | -30C to 55C (-22F to 131F) |
Centre Height | 32 mm |
Laser Rangefinder | |
Safety Class For Laser | Class 1 |
Wavelength | 905 nm |
Max. Measuring Range | 1,000 m |
Measurement Accuracy | -/+1 m |
Min. Measuring Range | 10 m |
